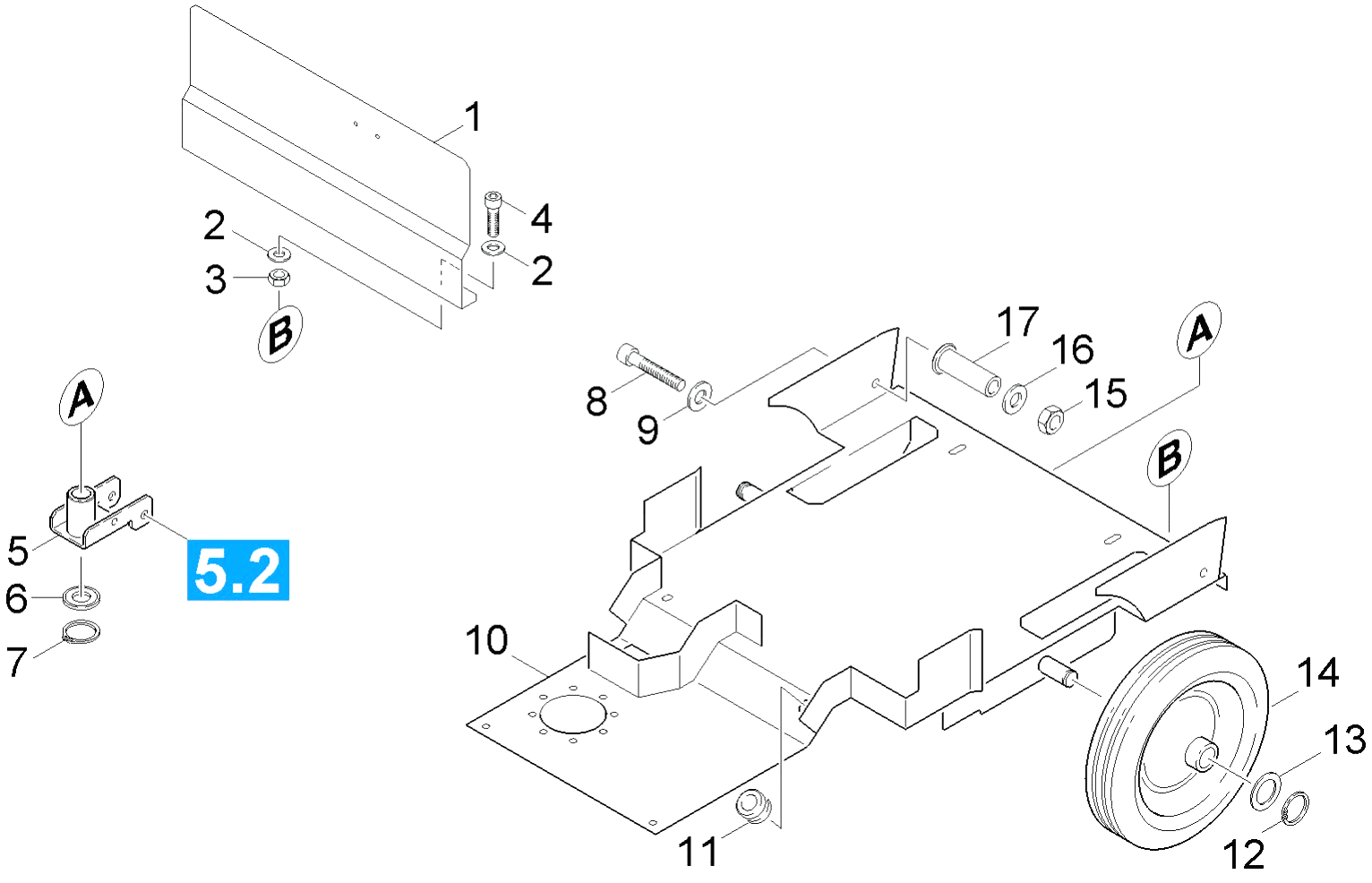

Karcher (Керхер) Шасси BD 530 (0.165-371.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

REF.	АРТИКУЛ	ОПИСАНИЕ
1	5.031-842.0	Covering cap BD 530 NETZ
2	7.312-003.0	Washer 6 -200HV-A3E ISO 7090
3	7.311-067.0	Hexagon nut M 6-A2-70 ISO 4032
3	5.033-601.0	Suction nipple
4	7.306-090.0	Screw M6x16 -8.8-R3R (In6Rd)
5	4.058-087.0	Carrier suction bar
6	5.115-493.0	Washer
6	5.100-559.0	Suction bar support plate
7	7.343-005.0	Locking ring 16x1-FST-PHR DIN 471
7	7.306-142.0	Cylinder head screw M 8x25-A4-70 ISO 47
8	7.306-075.0	Cylinder head screw M 8x 40-8.8-A2E ISO
8	7.312-017.0	Washer 8-A2 ISO 7089
9	7.312-017.0	Washer 8-A2 ISO 7089
10	4.044-014.0	Holder
10	2.885-294.0	End piece left / right spare parts set
11	6.641-401.0	Wire protecting sleeve
11	6.273-207.0	Rubber lip set oil resistant BR-BD530,55
11	6.273-290.0	BLADES FOR TEXTURED FLOORS
11	6.273-229.0	Rubber lip set anti stripe oil resistant
11	6.273-213.0	Rubber lip set standard
12	7.343-004.0	Locking ring 15x1-FST-PHR DIN 471
12	5.305-296.0	Wing screw M8x40 VA
13	5.115-608.0	Washer
13	5.112-810.0	Sleeve VA
14	6.435-356.0	Wheel D200
14	5.007-217.0	Plate
15	7.311-004.0	Hexagon nut M8 -8-A3E ISO 4032
15	6.321-239.0	Star grip VA ?50x43
16	7.312-277.0	Washer 8-200HV-A2E ISO7093-1
16	5.094-231.0	Sleeve suction bar in VA
17	5.110-777.0	Sleeve
17	5.515-346.0	Deflector roll suction bar D120
18	5.128-339.0	Additional weight suction bar
