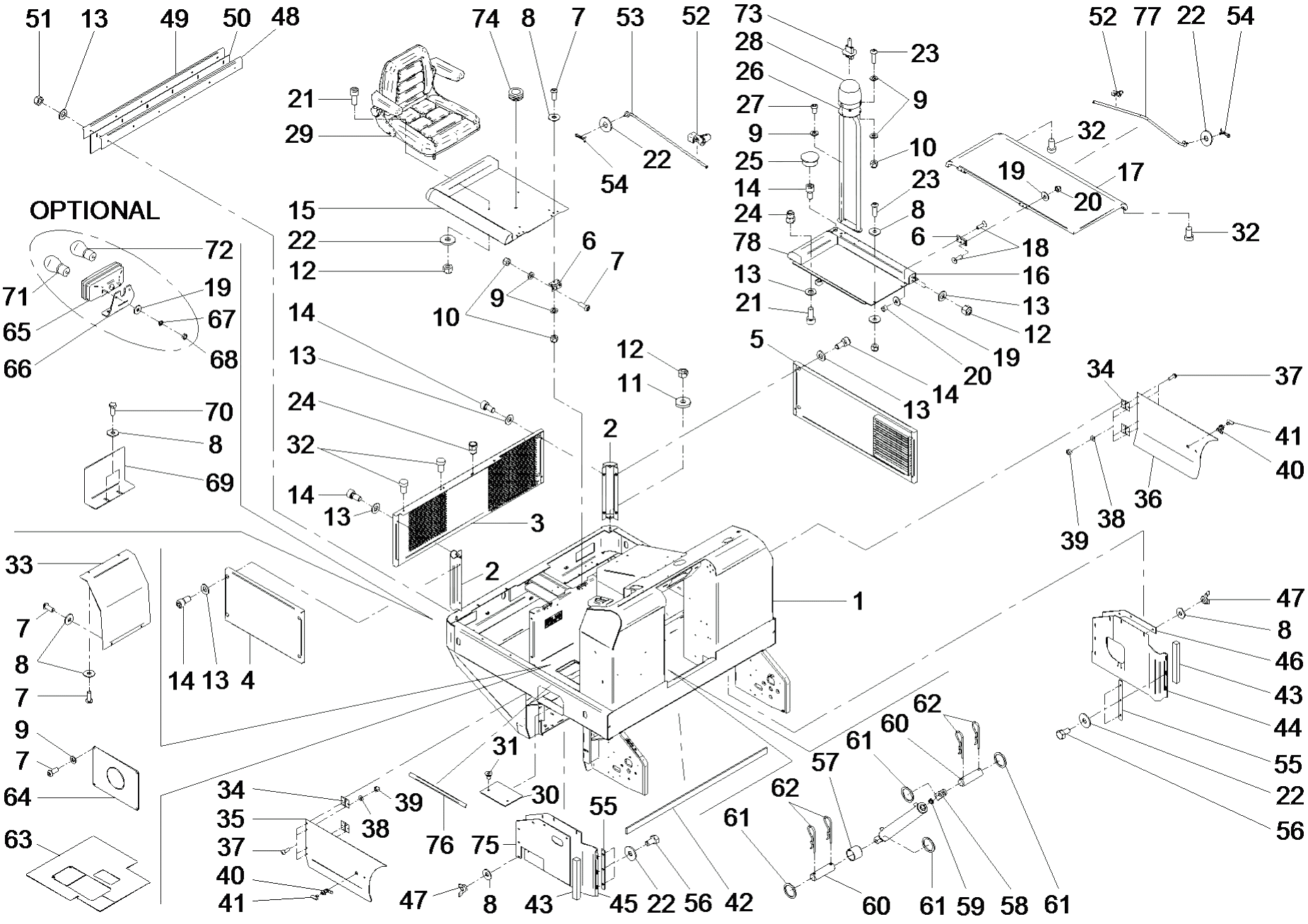

Karcher (Керхер) Шасси (0.210-608.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

REF.	АРТИКУЛ	ОПИСАНИЕ
1	6.987-867.0	Frame KM 150/500 Bat-2108145
1	6.905-625.0	Side broom hard
1	6.905-626.0	Side broom soft
2	6.987-656.0	Covering cap column 2107802
2	7.318-079.0	Parallel key A 5x5x25-C45R DIN 6885
3	6.987-868.0	Covering cap rear 2108155
3	6.321-232.0	Star grip
4	6.987-869.0	Covering cap side 3008154
4	5.625-490.0	Belt pulley round belt D10
5	6.987-870.0	Covering cap motor 2108157
5	5.120-305.0	Hub
6	6.987-350.0	Hinge 3001900
6	5.064-252.0	Rejecting plate
7	7.306-090.0	Screw M6x16 -8.8-R3R (In6Rd)
7	5.116-321.0	Sleeve rejecting plate
8	7.312-276.0	Washer 6 -200HV-A2E ISO7093-1
8	7.306-092.0	Screw M6x20-ST- 8.8-R3R (IN6RD)
9	7.312-045.0	Washer 6-200HV-P4E ISO 7089
9	7.312-260.0	Washer 6 -100HV-A3E ISO 7094
10	7.311-512.0	Hexagon nut M 6-8-A2E ISO 7040
10	2.851-355.0	Assembly group side broom replacement
11	7.312-277.0	Washer 8-200HV-A2E ISO7093-1
11	6.363-292.0	Joint ring NILOS 6002
12	7.311-510.0	Hexagon nut M 8-8-A2E ISO 7040
12	6.273-298.0	Seal
13	7.312-017.0	Washer 8-A2 ISO 7089
13	7.303-233.0	Saucer-head screw M6x60 -St-A0P DIN 603
14	7.306-040.0	Cylinder head screw M8x16 -8.8-A2E ISO4
14	7.312-276.0	Washer 6 -200HV-A2E ISO7093-1
15	6.987-871.0	Plate seat console mobile 2105057
15	7.312-305.0	Spring washer B 6-FST-A2E DIN 137
16	6.987-451.0	Grab 2107807
16	7.311-512.0	Hexagon nut M 6-8-A2E ISO 7040
17	6.987-452.0	Engine hood 2107809
17	7.343-014.0	Locking ring 8x0,8-FST-PHR DIN 471
18	7.305-646.0	Винт с потайной головкой M 5x16-A2-70 I
18	7.306-122.0	Cylinder head screw M12x80- 8.8-A3E IS
19	7.312-278.0	Washer 5-200HV-A2E ISO7093-1
19	5.115-681.0	Washer
20	7.311-421.0	Hexagon nut M 5-04-A2E ISO 10511
20	7.311-515.0	Hexagon nut M12-8-A2E ISO 7040
21	7.306-041.0	Cylinder head screw M8x20 -8.8-A2E ISO
22	7.306-041.0	Cylinder head screw M8x20 -8.8-A2E ISO
23	7.306-092.0	Screw M6x20-ST- 8.8-R3R (IN6RD)
24	7.303-112.0	Screw 6x20 -10.9-R2R (In6Rd)
25	6.987-109.0	Cap 4200581
26	6.987-110.0	Fixing revolving signal light 2107819
27	7.306-087.0	Screw M6x10 -8.8-R3R (In6Rd)
27	7.306-500.0	Cylinder head screw M6x12-8.8-A2E DIN 6
28	6.987-111.0	Revolving signal light 12V-4200412
28	7.318-006.0	Parallel key 3x3x10-C45R DIN 6885
29	6.373-988.0	Seat
29	7.306-076.0	Screw M 5x12-ST- 8.8-A2R (IN6RD)
30	6.987-112.0	Anti-slip mat 3007808
30	5.094-266.0	Sheet metal component arm side broom
31	7.305-029.0	Винт с потайной головкой M6x10-8.8-A2R
32	6.987-113.0	Cap 4200749
33	6.987-114.0	Guard plate 3007821
34	6.987-115.0	Hinge 3007297
35	6.987-122.0	Door reversing rolling mill right 210782
36	6.987-123.0	Door reversing rolling mill left 2107823
37	7.306-058.0	Screw M 4X 12- 8.8-R2R K-IN6RD
38	7.312-001.0	Washer 4 -200HV-A3E ISO 7089
39	7.311-424.0	Hexagon nut M4 -8-A2E ISO 7040
40	6.987-116.0	Lifthandle lock 4200834
41	6.987-117.0	Key 4200835
42	6.987-118.0	Seal rubber 3007824
43	6.987-119.0	Seal rubber 3007825
44	6.987-120.0	Cirt clack left 3007774
45	6.987-121.0	Cirt clack right 3007773
46	6.987-124.0	Angle side reversing rolling mill 300235
47	7.310-002.0	Wing nut M 6-GT-A2E DIN 315
48	6.987-125.0	Angle rubber lip 3002357
49	6.987-126.0	Angle rubber lip 3002356
50	6.987-127.0	Rubber lip 3007776
51	7.311-004.0	Hexagon nut M8 -8-A3E ISO 4032
52	6.987-132.0	Locking part cover motor 4200697
53	6.987-133.0	Stay cover 2102529
54	7.316-336.0	Cotter 2x16-St-A2E ISO 1234
55	6.987-134.0	Strip fixing rubber 3002489
56	7.304-395.0	Hexagonal head screw M8x16-8.8-A2E ISO
57	6.987-029.0	Bush 4200622
58	6.987-135.0	Fork lifting cylinder 2101857
59	7.311-019.0	Hexagon nut M20X1,5-A4-70 ISO 8675
60	6.987-136.0	Bolt 4200634
61	6.987-137.0	Washer 3001501
62	6.313-004.0	Spring clip 4,0
63	6.987-404.0	Rubber mating 3008262
64	6.987-139.0	Maintenance flap 3007831
65	6.987-963.0	Rear light red 4201904
66	6.987-141.0	Holder rear light 3007829
67	7.313-002.0	Spring washer B 5-FSt-A3E DIN 127
68	7.311-002.0	Hexagon nut M5 -8-A2E ISO 4032
69	6.987-142.0	Angle rear light 3003660
70	7.304-521.0	Hexagonal head screw M 6x16-A4-70 ISO 4
71	7.651-014.0	Lamp P21W-BA15s-12V EN 60809
72	7.651-025.0	Lamp bulb P21/5W-BAY 15d-12V EN 60809
73	6.651-284.0	Halogen lamp 12V55W
74	6.987-273.0	Cable bushing 18x16x3,5 - 4201757
75	6.987-471.0	Side plate reversing rolling mill 300838
76	6.987-576.0	Anti-slipping tape 3008767
77	6.987-964.0	Stay cover 2108615
78	6.987-872.0	Plate seat console fixed 2107812
