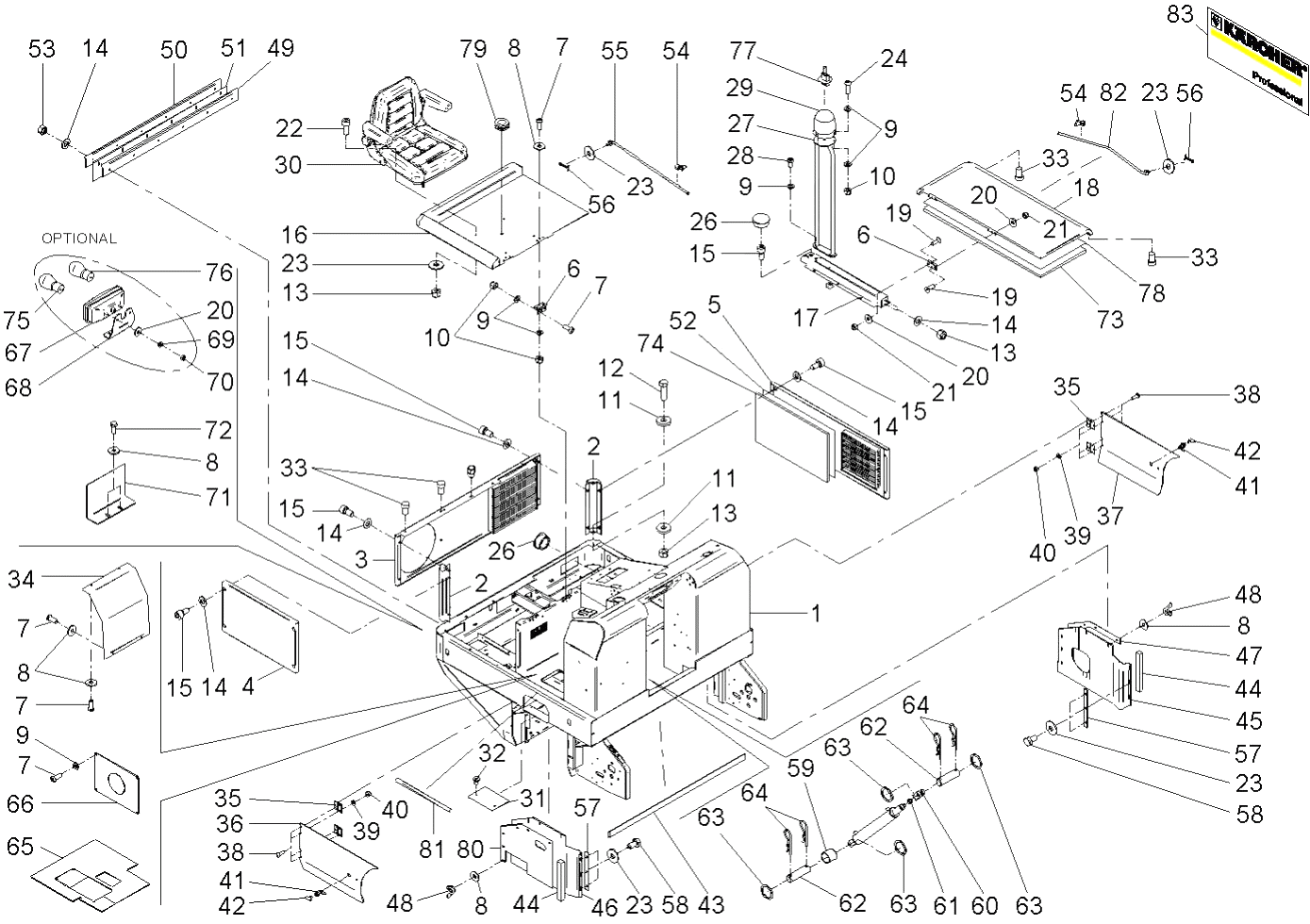

Karcher (Керхер) Шасси (0.210-585.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

REF.	АРТИКУЛ	ОПИСАНИЕ
1	6.987-655.0	Frame KM 150/500 - 2107716
2	6.987-656.0	Covering cap column 2107802
3	6.987-798.0	Covering cap rear 2108218
4	6.987-799.0	Covering cap side 3008217
5	6.987-356.0	Crankcase 2107806
6	6.987-350.0	Hinge 3001900
7	7.306-090.0	Screw M6x16 -8.8-R3R (In6Rd)
8	7.312-276.0	Washer 6 -200HV-A2E ISO7093-1
9	7.312-045.0	Washer 6-200HV-P4E ISO 7089
10	7.311-512.0	Hexagon nut M 6-8-A2E ISO 7040
11	7.312-277.0	Washer 8-200HV-A2E ISO7093-1
12	7.304-400.0	Hexagonal head screw M 8x30-8.8-A2E ISO
13	7.311-510.0	Hexagon nut M 8-8-A2E ISO 7040
14	7.312-017.0	Washer 8-A2 ISO 7089
15	7.306-040.0	Cylinder head screw M8x16 -8.8-A2E ISO4
16	6.987-453.0	Plate seat console 2107979
17	6.987-451.0	Grab 2107807
18	6.987-452.0	Engine hood 2107809
19	7.305-646.0	Винт с потайной головкой M 5x16-A2-70 I
20	7.312-278.0	Washer 5-200HV-A2E ISO7093-1
21	7.311-421.0	Hexagon nut M 5-04-A2E ISO 10511
22	7.306-041.0	Cylinder head screw M8x20 -8.8-A2E ISO
24	7.306-092.0	Screw M6x20-ST- 8.8-R3R (IN6RD)
26	6.987-109.0	Cap 4200581
27	6.987-110.0	Fixing revolving signal light 2107819
28	7.306-087.0	Screw M6x10 -8.8-R3R (In6Rd)
29	6.987-111.0	Revolving signal light 12V-4200412
30	6.373-988.0	Seat
31	6.987-112.0	Anti-slip mat 3007808
32	7.305-029.0	Винт с потайной головкой M6x10-8.8-A2R
33	6.987-113.0	Cap 4200749
34	6.987-114.0	Guard plate 3007821
35	6.987-115.0	Hinge 3007297
36	6.987-122.0	Door reversing rolling mill right 210782
37	6.987-123.0	Door reversing rolling mill left 2107823
38	7.306-058.0	Screw M 4X 12- 8.8-R2R K-IN6RD
39	7.312-001.0	Washer 4 -200HV-A3E ISO 7089
40	7.311-424.0	Hexagon nut M4 -8-A2E ISO 7040
41	6.987-116.0	Lifthandle lock 4200834
98	7.306-087.0	Screw M6x10 -8.8-R3R (In6Rd)
99	7.305-014.0	Countersunk screw M 8x35-A2-70 ISO 1064
100	6.987-181.0	Locking lever 4200212
101	6.987-821.0	Seal battery covering cap 3008893
102	6.987-822.0	Covering cap battery 3008542
103	7.306-058.0	Screw M 4X 12- 8.8-R2R K-IN6RD
104	6.987-860.0	Hand wheel D25/M6x15 - 4200363
105	6.987-823.0	Retaining bracket gas bottle right 21088
106	6.987-824.0	Insulating mat 3008926
107	6.987-825.0	Covering cap exhaust 2108923
108	6.987-863.0	Hinge 4200766
109	6.987-826.0	Guard plate gas bottle 3008911
110	6.987-827.0	Bracket gas bottle 2108813
111	6.987-828.0	Rubber mating rear 3008818
112	6.987-829.0	Locking part gas bottle 3008335
113	6.987-830.0	Angle holder battery 3008847
114	6.987-831.0	Bar holder battery 3008831
115	7.401-134.0	Ball bearing 6203-2RS-WAELZLAGST DIN 625
116	6.987-796.0	Covering cap rear 2108810
117	7.312-260.0	Washer 6 -100HV-A3E ISO 7094
118	7.304-382.0	Hexagonal head screw M 6x12-8.8-A2E ISO
119	6.987-832.0	Retaining bracket gas bottle left 300835
120	6.666-920.0	Грибковая ручка
121	6.987-833.0	Stop gas bottle rear 3008333
122	5.129-262.0	Stop safety switch
123	7.312-001.0	Washer 4 -200HV-A3E ISO 7089
124	7.304-509.0	Hexagonal head screw M 6x25-A4-70 ISO 4
125	6.304-174.0	Oval head screw M8 x 30
126	6.987-834.0	Seal 3008336
127	6.987-835.0	Closure cover battery 2108851
129	6.987-836.0	Cover plate battery 3008846
130	7.304-387.0	Hexagonal head screw M 6x30-8.8-A2E ISO
132	7.311-424.0	Hexagon nut M4 -8-A2E ISO 7040
133	6.288-117.0	Engine oil SAE5W30
