Karcher (Керхер) Шасси (0.210-090.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

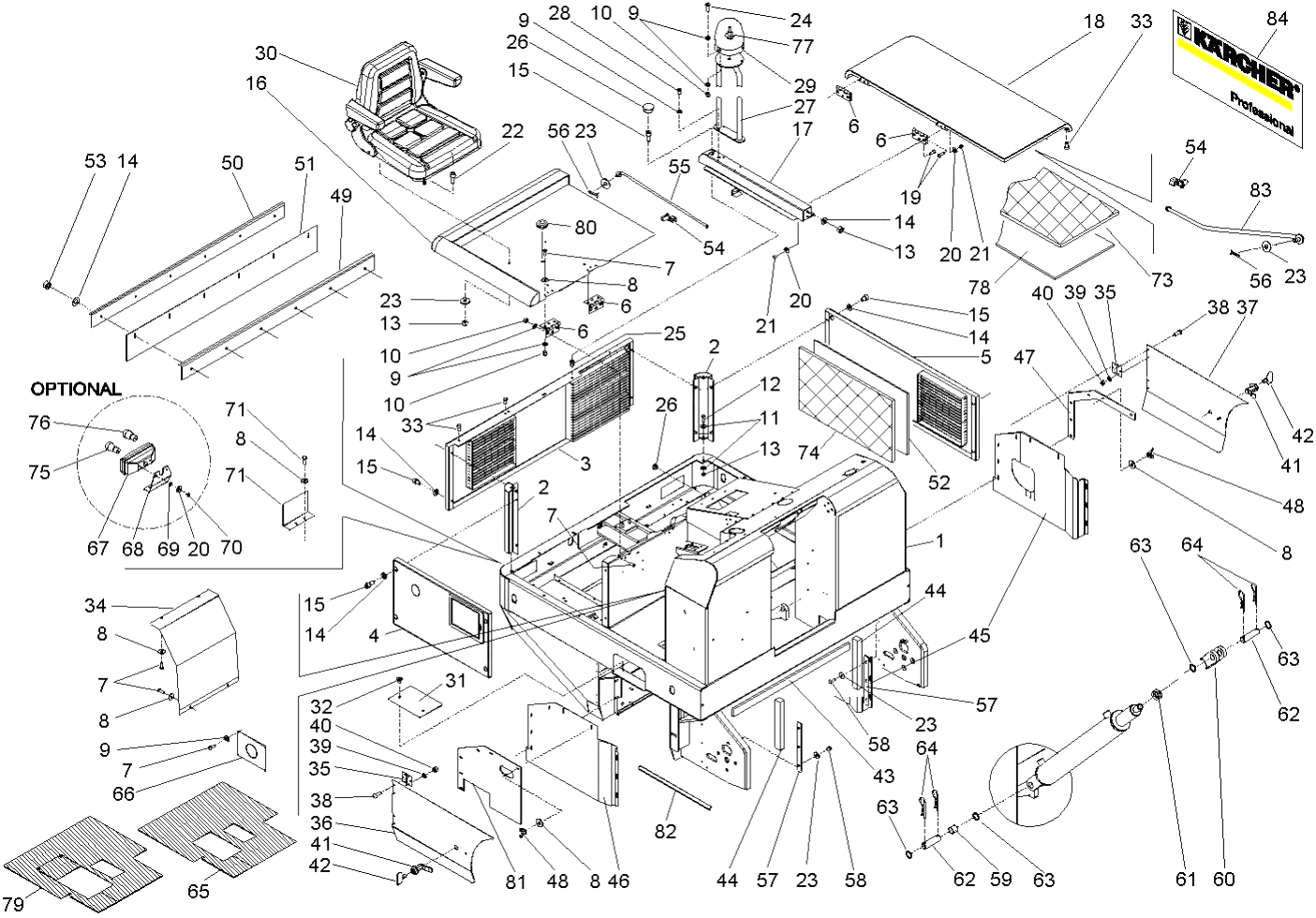

REF.	АРТИКУЛ	ОПИСАНИЕ
1	6.987-655.0	Frame KM 150/500 - 2107716
2	6.987-656.0	Covering cap column 2107802
3	6.987-657.0	Covering cap rear KM 150/500 - 2107803
4	6.987-658.0	Covering cap side KM 150/500 - 2107804
5	6.987-356.0	Crankcase 2107806
6	6.987-350.0	Hinge 3001900
7	7.306-090.0	Screw M6x16 -8.8-R3R (In6Rd)
8	7.312-276.0	Washer 6 -200HV-A2E ISO7093-1
9	7.312-045.0	Washer 6-200HV-P4E ISO 7089
10	7.311-512.0	Hexagon nut M 6-8-A2E ISO 7040
12	7.304-400.0	Hexagonal head screw M 8x30-8.8-A2E ISO
13	7.311-510.0	Hexagon nut M 8-8-A2E ISO 7040
14	7.312-017.0	Washer 8-A2 ISO 7089
15	7.306-040.0	Cylinder head screw M8x16 -8.8-A2E ISO4
16	6.987-453.0	Plate seat console 2107979
17	6.987-451.0	Grab 2107807
18	6.987-452.0	Engine hood 2107809
19	7.305-646.0	Винт с потайной головкой M 5x16-A2-70 I
20	7.312-278.0	Washer 5-200HV-A2E ISO7093-1
21	7.311-421.0	Hexagon nut M 5-04-A2E ISO 10511
22	7.306-041.0	Cylinder head screw M8x20 -8.8-A2E ISO
23	7.312-277.0	Washer 8-200HV-A2E ISO7093-1
24	7.306-092.0	Screw M6x20-ST- 8.8-R3R (IN6RD)
26	6.987-109.0	Cap 4200581
27	6.987-110.0	Fixing revolving signal light 2107819
28	7.306-087.0	Screw M6x10 -8.8-R3R (In6Rd)
29	6.987-111.0	Revolving signal light 12V-4200412
30	6.373-988.0	Seat
31	6.987-112.0	Anti-slip mat 3007808
32	7.305-029.0	Винт с потайной головкой M6x10-8.8-A2R
33	6.987-113.0	Cap 4200749
34	6.987-114.0	Guard plate 3007821
35	6.987-115.0	Hinge 3007297
56	6.987-250.0	Distance bush dynamo 3007975
57	7.304-123.0	Hexagonal head screw M10x120-8.8-A3E IS
58	6.987-049.0	Bush K4 12x10x10-4200618
59	7.304-419.0	Hexagonal head screw M10x35-8.8-A3E ISO
60	6.987-628.0	Clamp lever dynamo 3008123
61	6.987-618.0	Oil combine box 2106944
68	7.304-415.0	Hexagonal head screw M10x25-8.8-A3E ISO
69	6.987-253.0	Cable clamp 4200904
71	6.987-363.0	"""Air filter complete 5"""" - 4200892 """
72	7.305-104.0	Countersunk screw M8x25 -8.8-R3R ISO 10
73	6.987-360.0	Pressure switch 4200894
74	6.987-631.0	Suction tube filter 3008360
77	6.987-638.0	Suction hose filter 3008401
79	7.373-039.0	Hose clip A 40-60x13-W4 DIN 3017
80	6.987-259.0	Tank cooling water 4201749
81	6.987-260.0	Cap of a tank 4201750
83	6.987-649.0	Hose D6/12x1300- 3007924
86	7.373-020.0	Hose clip A 10-16x9-W2-2 DIN3017
87	6.987-225.0	Angle reinforcement 2105296
88	6.987-261.0	Throttle control 4200672
89	6.304-168.0	Oval head screw hexagon socket M8x20 A2-
91	6.987-650.0	Hose D8/15x2800 - 3007923
92	6.987-651.0	Hose D13/21,5x1350 - 3007929
96	6.987-364.0	Throttle cable 420071
97	6.987-365.0	Cable conduit throttle cable D2,5x1000-3
98	7.304-096.0	Hexagonal head screw M8x60-8.8-A2E ISO
99	6.373-655.0	Pipe clamp D30
100	6.987-642.0	Battery 12V-60Ah - 4201032
101	6.987-266.0	Holder battery 3001365
102	7.305-032.0	Винт с потайной головкой M6x20-ST-8.8-A2
105	6.987-619.0	Vacuum filter 4200614
106	6.987-362.0	Cartridge filter insert 4200994
109	6.987-654.0	Hose D5/8x700 - 3008453
