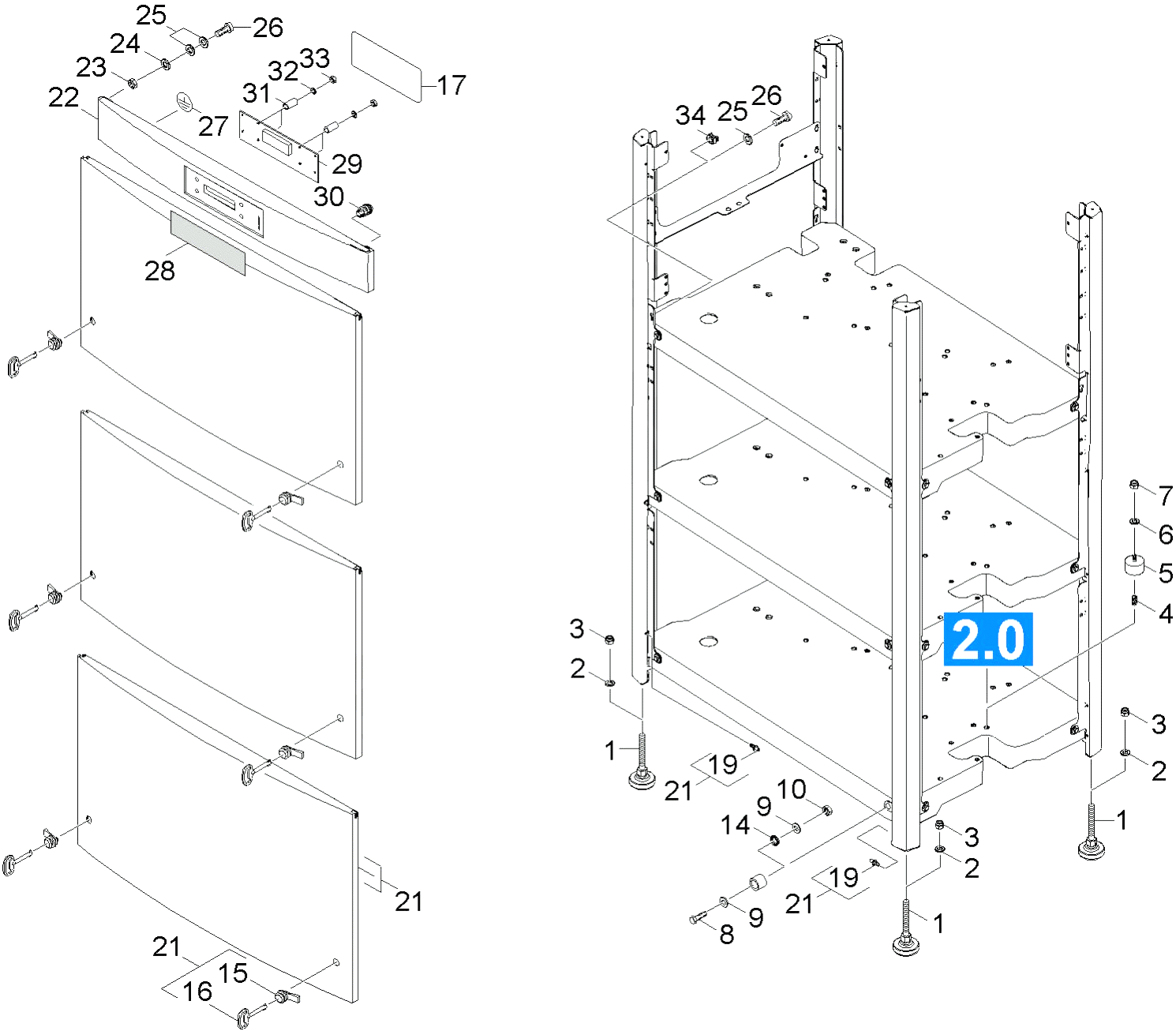

Karcher (Керхер) Рамка HDC 90 / 120 (0.108-850.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

REF.	АРТИКУЛ	ОПИСАНИЕ
1	6.439-204.0	Machine pedestal
2	7.312-290.0	Washer 10-A2 ISO 7093-1
3	7.311-066.0	Hexagon nut M10-A2-70 ISO 4032
4	6.972-477.0	Threaded insert M10
5	6.339-239.0	Rubber buffer 2500V
6	7.312-066.0	Washer 10 -A2 ISO 7090
7	7.311-524.0	Hexagon nut M10-A2-70 ISO 7040
8	7.304-537.0	Hexagonal head screw M 8x30-A4-70 ISO 4
9	7.312-289.0	Washer 8 -A2 ISO 7093-1
10	7.311-068.0	Hexagon nut M 8-A2-70 ISO 4032
14	6.343-232.0	Screws lock washer for M 8
15	6.375-233.0	Sash fastener H=30
16	6.375-156.0	Key Doppelbart 5 mm
17	5.392-344.0	Adhesive foil 270 x 120
19	5.437-004.0	Bolt M6
21	4.580-715.0	Frontal covering complete 3 ST
21	4.580-716.0	Frontal covering complete 3 VA
22	4.580-719.0	Обтекатель Display VA
23	7.311-067.0	Hexagon nut M 6-A2-70 ISO 4032
24	6.600-117.0	Contact disk 6mm
25	7.312-026.0	Washer 6 -A2 ISO 7090
26	7.306-193.0	Screw M6x16 -A2-70 (In6Rd)
27	6.643-145.0	Label earthing
28	6.682-978.0	Adhesive foil display advanced
29	6.682-954.0	Display electronics HDC
30	6.648-398.0	Cable gland black M12x1,5
31	5.317-300.0	Bush
33	7.311-516.0	Hexagon nut M 4-A2-70 ISO 10511
34	6.310-157.0	NUT M6
