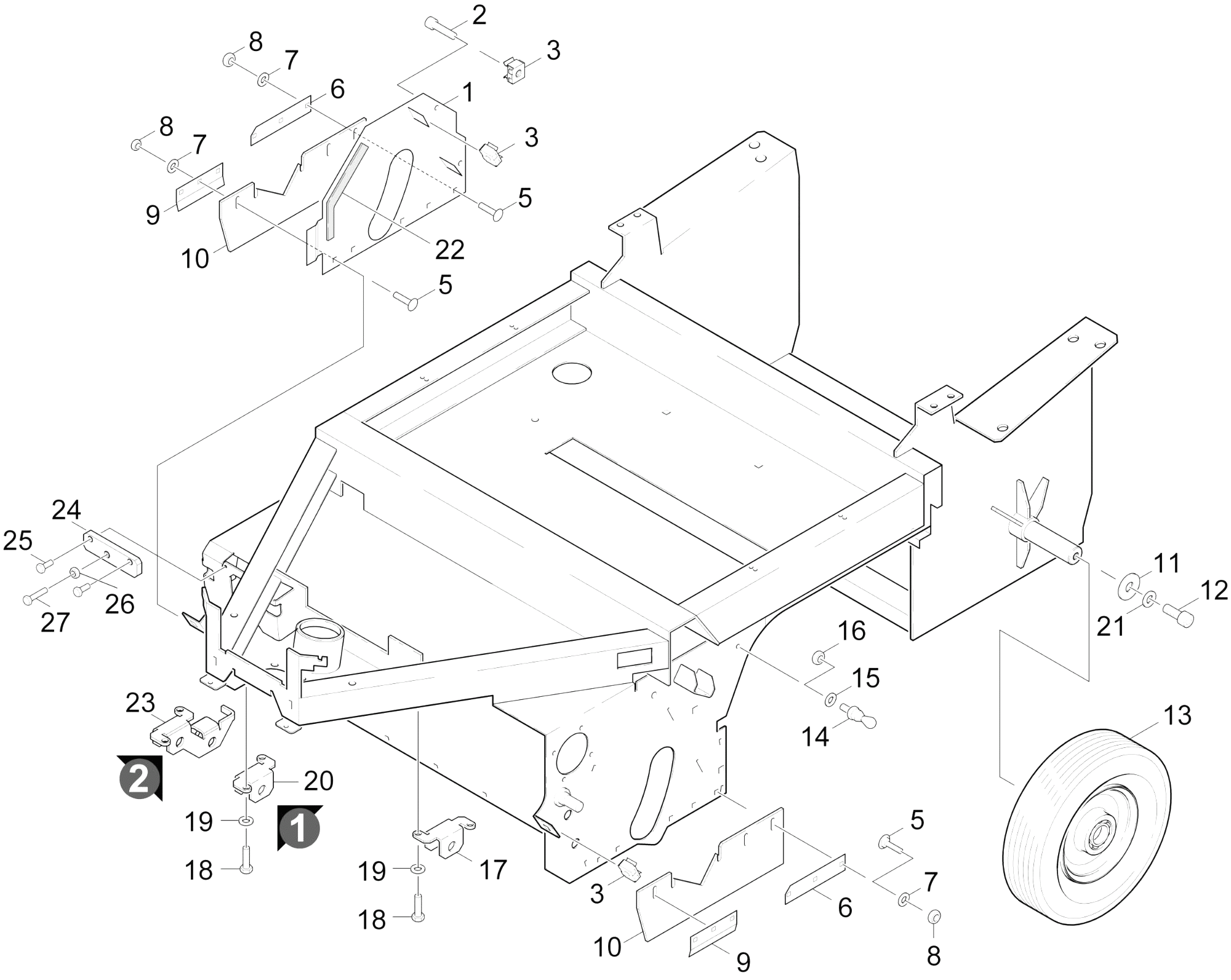

Karcher (Керхер) Рамка (0.209-733.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

REF.	АРТИКУЛ	ОПИСАНИЕ
1	4.040-091.0	Sheet metal component complete
1	6.454-078.0	Worm gearing
2	7.306-192.0	Screw M 6x 12-A2-70 (In6Rd)
2	7.318-070.0	Parallel key 5x5x20-C45R DIN 6885-1
3	6.310-135.0	Cage nut M8 3,3/4,7MM
3	7.312-260.0	Washer 6 -100HV-A3E ISO 7094
4	7.306-500.0	Cylinder head screw M6x12-8.8-A2E DIN 6
5	5.032-251.0	Sweep tank left
5	7.303-139.0	Saucer-head screw M6x20 -A2 DIN 603
5	7.312-003.0	Washer 6 -200HV-A3E ISO 7090
6	5.515-068.0	Wheel
6	5.190-215.0	Strip side rear
6	7.306-090.0	Screw M6x16 -8.8-R3R (In6Rd)
7	7.312-003.0	Washer 6 -200HV-A3E ISO 7090
7	6.905-986.0	Side broom
8	7.306-268.0	Винт M6x70 -8.8-R3R (In6Rd)
8	7.311-512.0	Hexagon nut M 6-8-A2E ISO 7040
8	5.120-288.0	Втулка боковая щетка
9	6.343-169.0	Quick-fastener
9	5.190-216.0	Strip side
9	5.625-305.0	Belt pulley
10	2.882-597.0	Conversion kit sweep tank KM 100/100 R
10	5.365-250.0	Rubber lip side
10	7.307-410.0	Threaded pin M5x16 -St-45H-A2E ISO 402
11	5.116-060.0	Washer
12	7.304-801.0	Hexagonal head screw M10x25-A4-70 ISO 4
13	7.315-007.0	Blind rivet 3,2x10 -A1/A2 ISO 15983
13	6.435-846.0	Front wheel
13	6.435-845.0	Wheel complete 4.00-8 8PR
14	5.108-198.0	Locking plug short
15	7.312-002.0	Washer 5-200HV-A3E ISO 7090
16	7.311-425.0	Hexagon nut M6 -04-A2E ISO 10511
17	5.059-731.0	Sheet metal component left (SP)
18	7.304-397.0	Hexagonal head screw M8x20-8.8-A2E ISO
19	7.312-004.0	Washer 8 -200HV-A3E ISO 7090
20	5.059-730.0	Sheet metal component right (SP)
21	7.312-066.0	Washer 10 -A2 ISO 7090
22	6.273-058.0	Sealing tape cellularrubber 9x4
23	5.061-890.0	Sheet metal component holder right
24	5.094-400.0	Sheet metal component adjustment
25	7.306-094.0	Screw M6x25 -8.8-R3R (In6Rd)
26	7.311-224.0	Hexagon nut M 8-04-A2E ISO 4035
27	7.304-407.0	Hexagonal head screw M 8x45-8.8-A2E ISO
