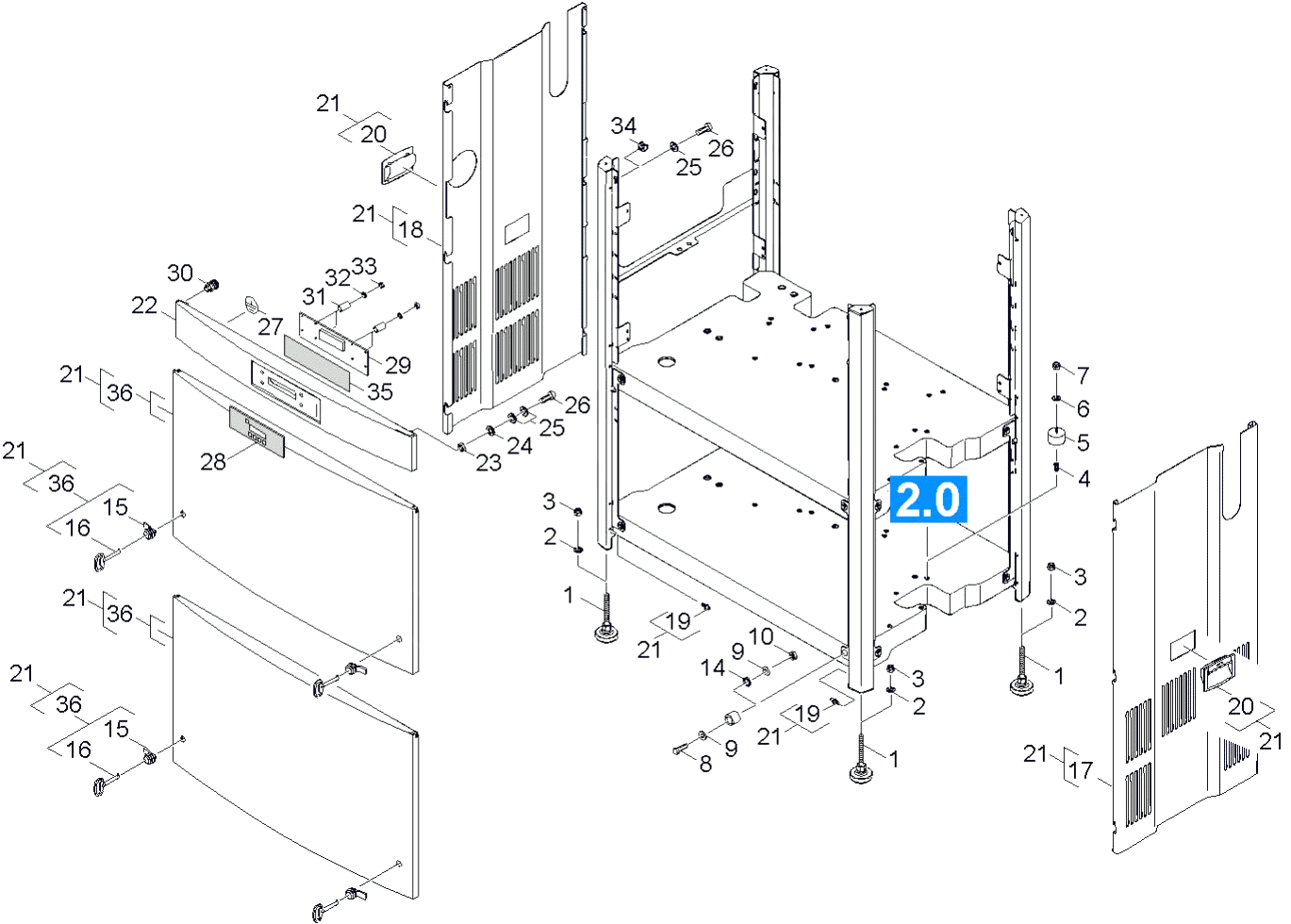

Karcher (Керхер) Рамка (0.209-019.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

REF.	АРТИКУЛ	ОПИСАНИЕ
1	6.439-204.0	Machine pedestal
1	6.643-836.0	Cable null modem
1	6.815-209.0	Tool screw bit screw plug
2	7.312-290.0	Washer 10-A2 ISO 7093-1
3	7.311-066.0	Hexagon nut M10-A2-70 ISO 4032
4	6.972-477.0	Threaded insert M10
5	6.339-239.0	Rubber buffer 2500V
6	7.312-066.0	Washer 10 -A2 ISO 7090
7	7.311-524.0	Hexagon nut M10-A2-70 ISO 7040
8	7.304-537.0	Hexagonal head screw M 8x30-A4-70 ISO 4
9	7.312-289.0	Washer 8 -A2 ISO 7093-1
10	7.311-068.0	Hexagon nut M 8-A2-70 ISO 4032
14	6.343-232.0	Screws lock washer for M 8
15	6.375-233.0	Sash fastener H=30
16	6.375-156.0	Key Doppelbart 5 mm
17	5.656-023.0	Plate side cladding 2 VA R
17	5.656-002.0	Листовой металл боковая обшивка R 2 ST
18	5.656-001.0	Plate side cladding L 2 ST
18	5.656-022.0	Plate side cladding L 2 VA
19	5.437-004.0	Bolt M6
20	6.321-194.0	Handhold
21	3.641-028.0	ABS covering HDC/2 VA
21	3.641-027.0	ABS covering HDC/2 ST
22	4.580-793.0	Spare parts set covering display ST
22	4.580-794.0	Spare parts set covering display VA
23	7.311-067.0	Hexagon nut M 6-A2-70 ISO 4032
24	6.600-117.0	Contact disk 6mm
25	7.312-026.0	Washer 6 -A2 ISO 7090
26	7.306-193.0	Screw M6x16 -A2-70 (In6Rd)
27	6.643-145.0	Label earthing
28	6.682-003.0	Плёночный клей Display ST HDC Standard
29	6.682-954.0	Display electronics HDC
30	6.648-398.0	Cable gland black M12x1,5
31	5.317-300.0	Bush
33	7.311-516.0	Hexagon nut M 4-A2-70 ISO 10511
34	6.310-157.0	NUT M6
35	5.392-344.0	Adhesive foil 270 x 120
36	4.580-707.0	Frontal covering complete 2 ST
36	4.580-711.0	Frontal covering complete 2 VA
