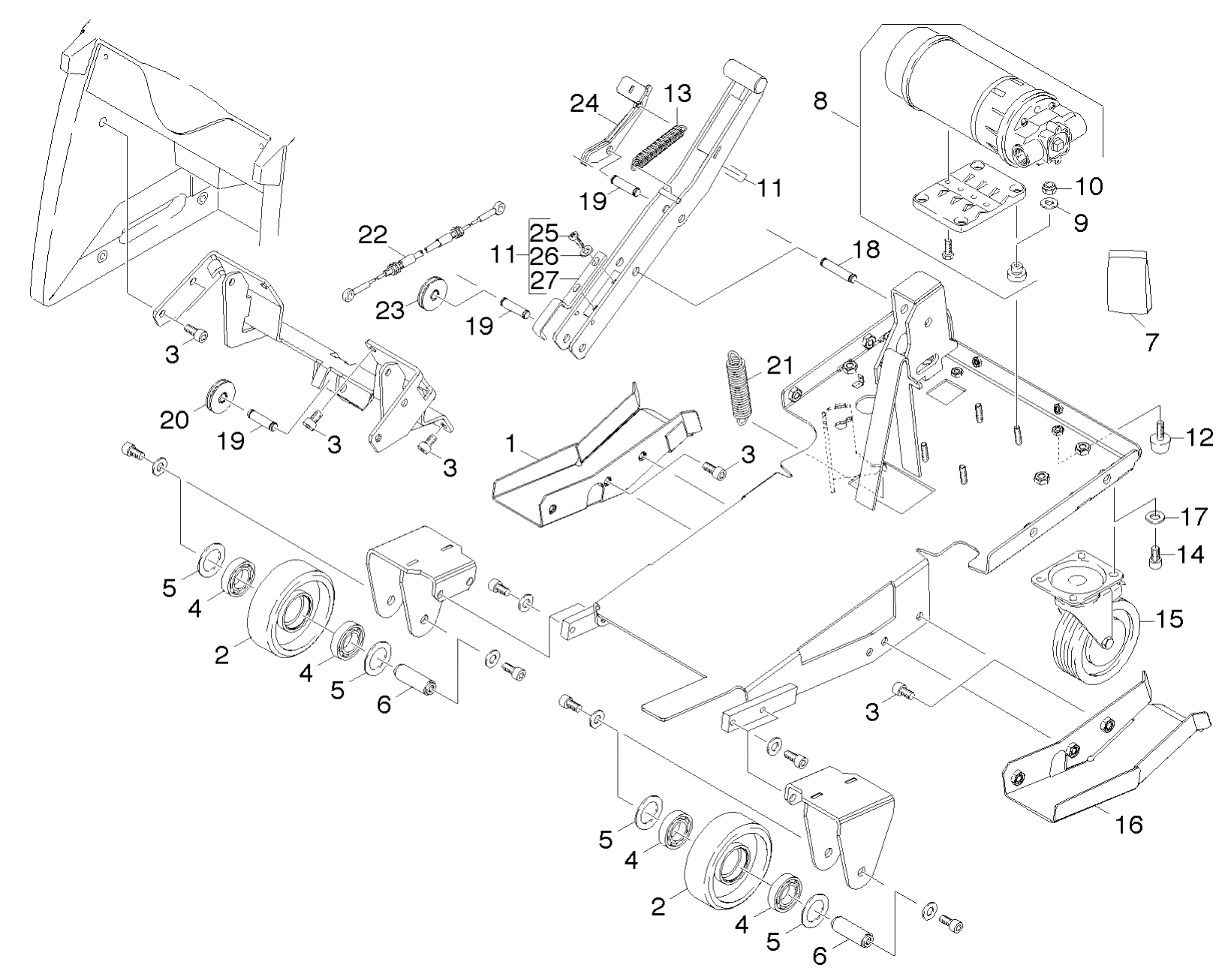

Karcher (Керхер) Рамка (0.141-047.0)
Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85
| REF. |
АРТИКУЛ |
ОПИСАНИЕ |
ЗАПРОС НАЛИЧИЯ / ЦЕНЫ |
| 1 |
5.008-953.0 |
Guard plate right |
|
| 1 |
8.621-734.0 |
COVER, BELT RIGHT |
|
| 1 |
8.629-975.0 |
GRIP, HANDLE, OVERMOLD |
|
| 2 |
6.435-687.0 |
Wheel 100x40 |
|
| 2 |
8.617-263.0 |
NUT, M4, LK, ISO7040,SST |
|
| 2 |
8.630-868.0 |
ASM, BRS 43/500 CONSOLE |
|
| 3 |
7.306-119.0 |
Cylinder head screw M8x12 -A2-70 ISO 47 |
|
| 3 |
8.617-287.0 |
SCR, M4X14 PHMS, ISO7045, SST |
|
| 3 |
8.627-760.0 |
SCR,M4 X 20,PHMS, ISO7045, SST |
|
| 4 |
6.401-373.0 |
Ball bearing 15x28x7-61902-2RS |
|
| 4 |
8.632-344.0 |
KIT, BRUSH CLIP, IM |
|
| 4 |
8.630-869.0 |
KIT, BRS 43/ 500 CORD HOOK |
|
| 5 |
5.116-058.0 |
Washer |
|
| 5 |
8.621-485.0 |
ASSY, BRUSH & HUB |
|
| 5 |
8.621-722.0 |
CORD HOOK, LOWER |
|
| 6 |
5.317-030.0 |
Bolt wheel |
|
| 6 |
8.621-733.0 |
COVER, BELT LEFT |
|
| 6 |
8.621-868.0 |
HANDLE, EXTRUSION, LH, DELUXE |
|
| 7 |
6.761-321.0 |
Набор уплотнителей |
|
| 7 |
8.635-234.0 |
KIT, 87/100 BELT CONVERSION |
|
| 7 |
8.629-426.0 |
SCREW, M5X12, W/LOCTITE |
|
| 8 |
6.473-444.0 |
Pump |
|
| 8 |
8.617-284.0 |
SCR,M5X10,PHS,FHD,ISO7046,SST |
|
| 8 |
8.629-979.0 |
PIVOT CASTING, KARCHER |
|
| 9 |
7.312-292.0 |
Washer 6 -A2 ISO 7093-1 |
|
| 9 |
8.621-484.0 |
ASSY, BRUSH, COAST |
|
| 9 |
8.617-318.0 |
SCR,10M8X55,SHLD,ISO7379,BLK |
|
| 10 |
7.311-067.0 |
Hexagon nut M 6-A2-70 ISO 4032 |
|
| 10 |
8.634-521.0 |
Transmission roll completely |
|
| 10 |
8.622-180.0 |
LIFTING CAM, LEFT |
|
| 11 |
4.481-252.0 |
Педаль комплектный BR 4735 ESC |
|
| 11 |
8.617-264.0 |
NUT, M8, NYLOCK, ISO7040,SST |
|
| 12 |
6.339-207.0 |
Rubber buffer |
|
| 13 |
5.762-266.0 |
Roller brush white (old colour black) |
|
| 13 |
5.762-267.0 |
Roller brush hard black (old colour whit |
|
| 13 |
6.330-401.0 |
Extension spring |
|
| 14 |
6.997-004.0 |
Retainer comb insert |
|
| 14 |
7.306-040.0 |
Cylinder head screw M8x16 -8.8-A2E ISO4 |
|
| 15 |
6.369-515.0 |
Pad |
|
| 15 |
6.369-516.0 |
Pad |
|
| 15 |
6.369-514.0 |
Pad |
|
| 15 |
6.369-513.0 |
Pad |
|
| 15 |
4.515-078.0 |
Fixed castor complete |
|
| 16 |
7.305-053.0 |
Countersunk screw M6x16-A2-70 (IN6RD) |
|
| 16 |
5.008-952.0 |
Guard plate left |
|
| 17 |
6.369-511.0 |
Guide comb green |
|
| 17 |
6.369-512.0 |
Guide comb white |
|
| 17 |
6.369-509.0 |
Guide comb grey |
|
| 17 |
6.369-510.0 |
Guide comb black |
|
| 17 |
6.371-272.0 |
Guide comb yellow |
|
| 17 |
6.369-914.0 |
Guide comb blue |
|
| 17 |
7.312-289.0 |
Washer 8 -A2 ISO 7093-1 |
|
| 18 |
6.369-522.0 |
Guide comb white |
|
| 18 |
6.369-521.0 |
Guide comb green |
|
| 18 |
6.371-273.0 |
Guide comb yellow |
|
| 18 |
5.116-214.0 |
Bolt |
|
| 18 |
6.369-520.0 |
Guide comb black |
|
| 18 |
6.369-915.0 |
Guide comb blue |
|
| 18 |
6.369-519.0 |
Guide comb grey |
|
| 19 |
5.116-213.0 |
Bolt |
|
| 19 |
5.762-268.0 |
Roller brush black (old colour black) |
|
| 20 |
5.435-017.0 |
Deflection pulley front |
|
| 20 |
6.997-007.0 |
Covering cap brush |
|
| 21 |
6.330-209.0 |
Extension spring |
|
| 21 |
6.330-426.0 |
Gas spring 110 N |
|
| 22 |
6.431-280.0 |
Bowden wire |
|
| 22 |
4.642-024.0 |
Conversion kit bend protection gas sprin |
|
| 23 |
5.100-573.0 |
Deflection pulley rear an Pedal |
|
| 24 |
2.882-649.0 |
Conversion kit locking part |
|
| 25 |
7.306-077.0 |
Screw M5x16 -8.8-R2R (In6Rd) |
|
| 26 |
7.312-002.0 |
Washer 5-200HV-A3E ISO 7090 |
|
| 27 |
5.062-039.0 |
Retaining bracket roller |
|
