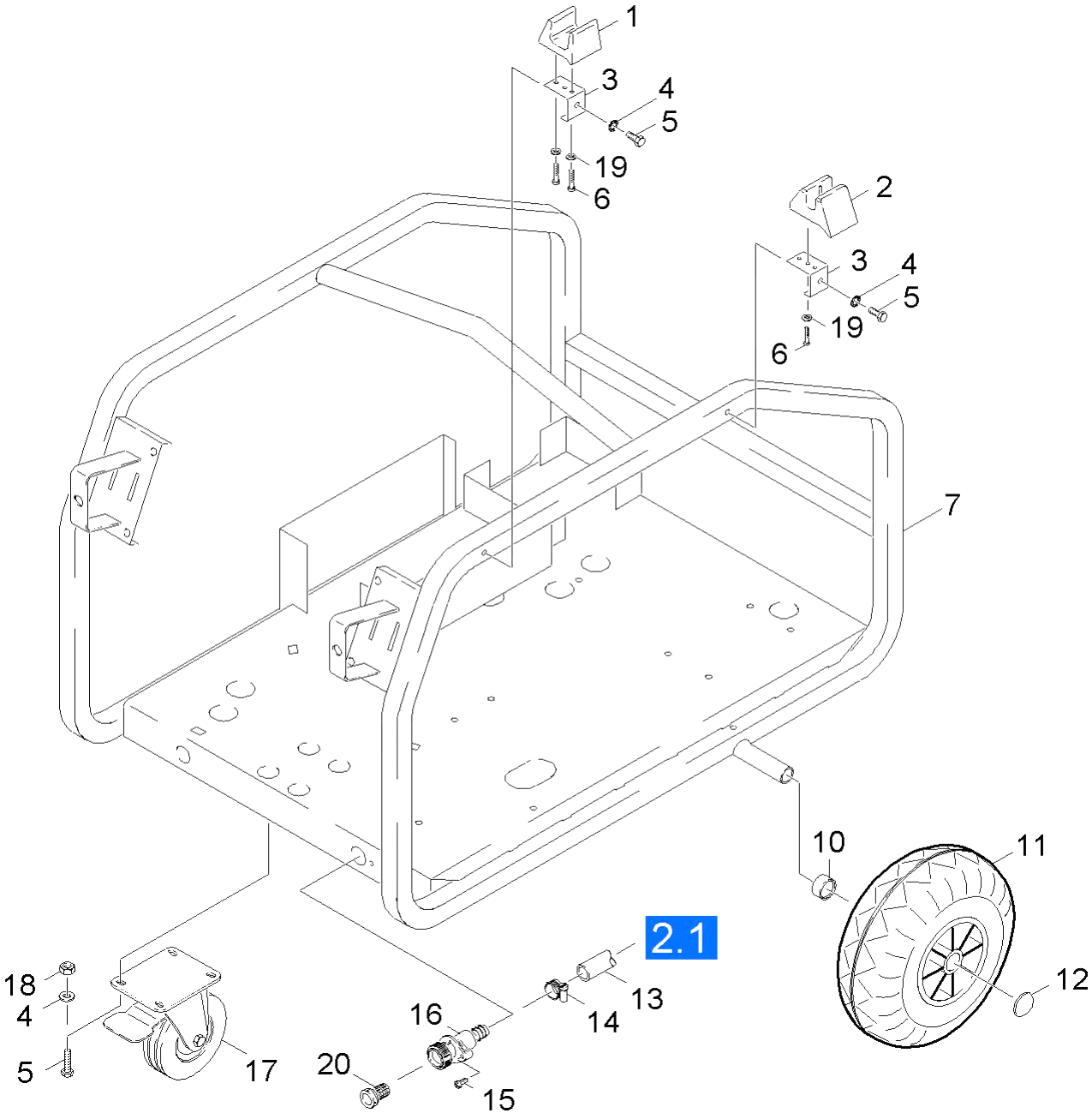

| REF. | АРТИКУЛ | ОПИСАНИЕ | ЗАПРОС НАЛИЧИЯ / ЦЕНЫ |
|---|---|---|---|
| 1 | 5.043-118.0 | Holder | |
| 2 | 5.043-120.0 | Holder | |
| 3 | 5.051-430.0 | Holder | |
| 4 | 7.312-166.0 | Toothed lock washer A8,4-FSt-A3E DIN 67 | |
| 5 | 7.304-395.0 | Hexagonal head screw M8x16-8.8-A2E ISO | |
| 6 | 7.303-071.0 | Sheet metal screw ST4,2X9,5 -St-A2K (In | |
| 7 | 4.051-292.0 | Frame complete | |
| 10 | 5.110-561.0 | Sleeve | |
| 11 | 6.435-308.0 | Wheel | |
| 12 | 6.343-137.0 | Quick-fastener | |
| 13 | 6.390-320.0 | Hose DN 16 | |
| 14 | 6.388-547.0 | Hose clip | |
| 15 | 7.303-112.0 | Screw 6x20 -10.9-R2R (In6Rd) | |
| 16 | 5.427-178.0 | Manifold | |
| 17 | 6.435-793.0 | Castor 155mm | |
| 18 | 6.303-258.0 | Self-tapping screw | |
| 18 | 7.311-004.0 | Hexagon nut M8 -8-A3E ISO 4032 | |
| 19 | 7.312-001.0 | Washer 4 -200HV-A3E ISO 7089 | |
| 20 | 4.652-114.0 | Outer covering | |
| 20 | 6.414-282.0 | Strainer | |
| 23 | 4.654-233.0 | Cover D.K. | |
| 24 | 5.654-059.0 | Cover pressure boiler | |
| 25 | 5.394-470.0 | Protecting cap | |
| 26 | 5.662-022.0 | Burner cover |
