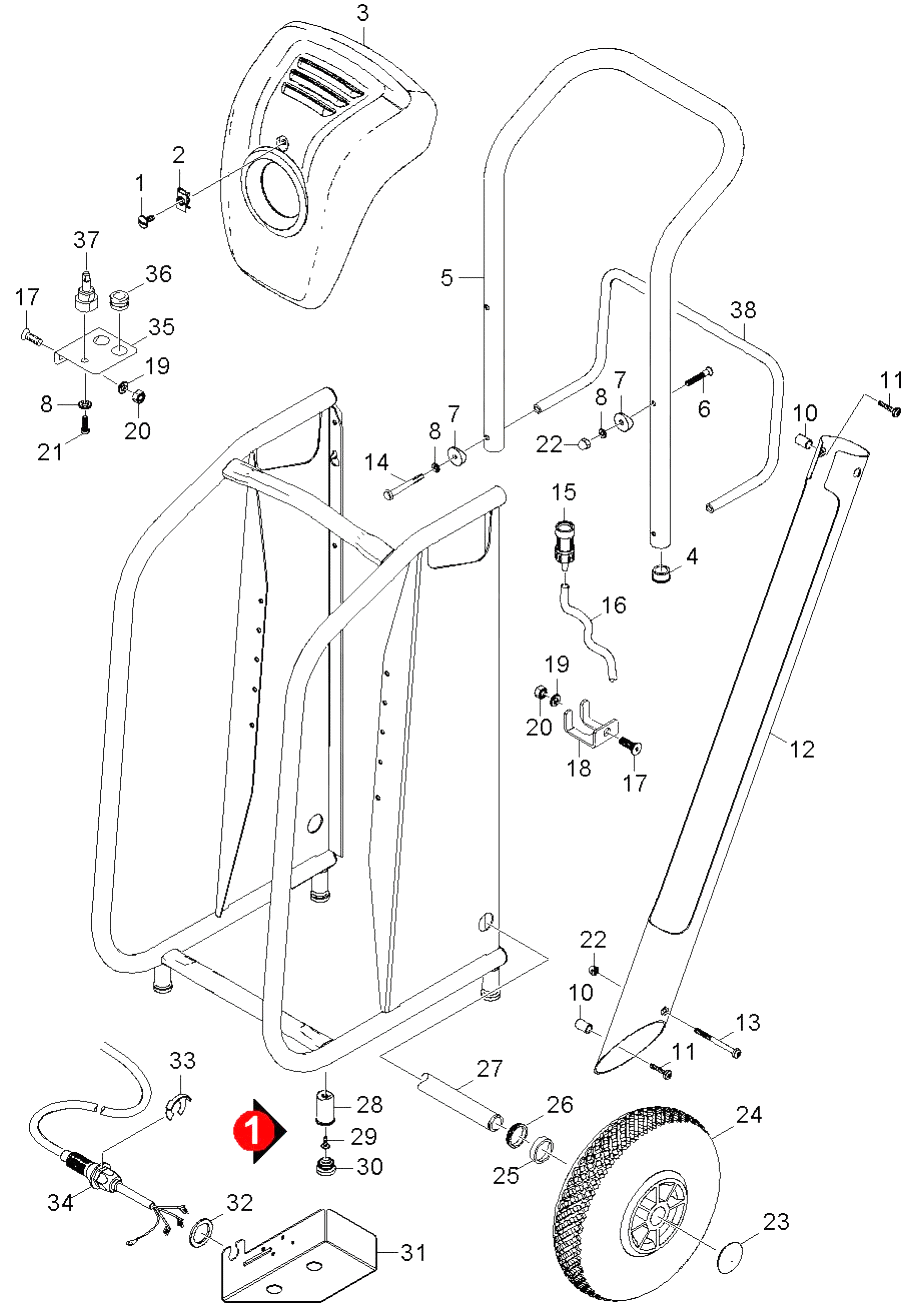

Karcher (Керхер) Рамка (0.103-949.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

REF.	АРТИКУЛ	ОПИСАНИЕ
1	6.304-099.0	Saucer-head screw M 6x 18-4.8-R2R
1	4.744-193.0	Switch complete
1	4.744-239.0	Switch complete replacement
1	4.775-470.0	Rotary controller 416L
1	4.775-463.0	HAND TRIGGER GUN EASY PRESS
1	5.064-234.0	Cover electric control box
2	6.310-053.0	Putting nut
2	7.303-096.0	Screw 4x22 -ST-10.9-R2R (IN6RD)
3	5.069-263.0	Cover HD 10/25-4 Cage
3	5.481-331.0	Slider
4	2.885-130.0	Cylinder head -nur fuer Ersatz-
4	4.775-466.0	Hand trigger gun
5	5.033-395.0	Handhold
5	6.391-354.0	Hose assembly only for replacement DN8 4
5	5.321-669.0	Handhold few
7	4.037-013.0	Hook
8	7.312-003.0	Washer 6 -200HV-A3E ISO 7090
8	5.110-596.0	Sleeve
9	4.037-013.0	Hook
10	5.094-231.0	Sleeve suction bar in VA
11	7.303-066.0	Винт M6x30 -St-R3R (In6Rd)
11	7.303-096.0	Screw 4x22 -ST-10.9-R2R (IN6RD)
12	5.033-390.0	Tube accessories holder 1
13	7.304-233.0	Hexagonal head screw M 6X 70-A4-70 ISO
14	7.306-129.0	Screw M6x40 -8.8-R3R (In6Rd)
15	4.862-032.0	Filter chemistry regulation
16	6.388-216.0	Hose DN 5
17	7.305-038.0	Countersunk screw M5x10-A2-70-schw (IN6
18	5.044-906.0	Holder chemistry
19	7.312-002.0	Washer 5-200HV-A3E ISO 7090
20	7.311-002.0	Hexagon nut M5 -8-A2E ISO 4032
21	7.306-090.0	Screw M6x16 -8.8-R3R (In6Rd)
22	7.311-622.0	Cap nut M 6-A2 DIN 986
23	5.427-295.0	Manifold high-pressure
23	6.343-137.0	Quick-fastener
24	6.435-308.0	Wheel
25	5.111-067.0	Spacer sleeve
26	6.403-059.0	Plain bearing
27	7.306-118.0	Screw M 6x35 -8.8-R3R (In6Rd)
27	5.105-637.0	Axle
28	5.210-015.0	Pedestal
29	7.303-048.0	Screw M6x20 -St-R3R (In6Rd)
30	6.339-251.0	Rubber buffer
31	5.010-081.0	Bracket strain relief
33	6.343-186.0	Locking ring
35	5.010-128.0	Plate holder
37	5.044-649.0	Holder
