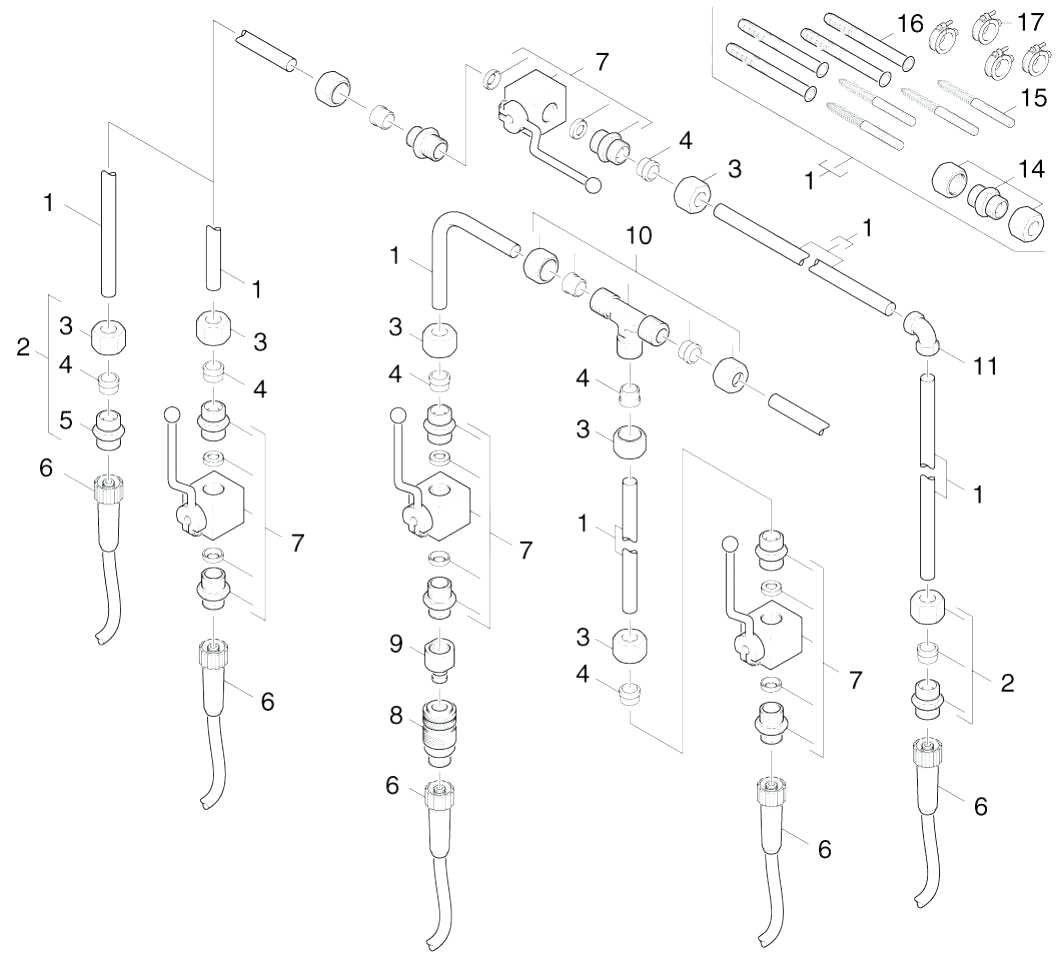

Karcher (Керхер) Система управления (0.196-705.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

REF.	АРТИКУЛ	ОПИСАНИЕ
1	2.420-004.0	Pipelines kit
1	2.420-006.0	Pipelines kit
2	2.638-181.0	Add-on kit connection piece connection
2	2.638-180.0	Add-on kit connection piece connection
3	6.386-423.0	Union nut A 16-S-ST-A3K DIN 3870
3	6.386-428.0	Union nut A 16-S
4	6.386-357.0	Cutting ring DPR16-S-ST-A3K DIN 3861
6	6.390-178.0	Hose assembly DN8 40MPa 1,5m
7	4.580-163.0	Stop cock complete
7	4.580-144.0	Stop cock complete
8	6.463-023.0	Quick-fitting pipe union M22x1,5
9	6.463-025.0	Coupling element M22x1,5
10	6.386-269.0	Screw connector T16-S-ST-A3K DIN 2353
10	6.386-465.0	Screw connector T16-S
11	6.386-466.0	Screw connector W16-S-1.4571 DIN 2353
11	6.386-356.0	Screw connector W16-S-ST-A3K DIN 2353
14	6.386-088.0	Screw connector G16-S-ST-A3K DIN 2353
15	6.308-011.0	Stock screw M 8X110
16	6.373-351.0	Dowel D10 x 90/100
17	6.373-375.0	"""Pipe clamp MPN-RC 1/4"""""""
