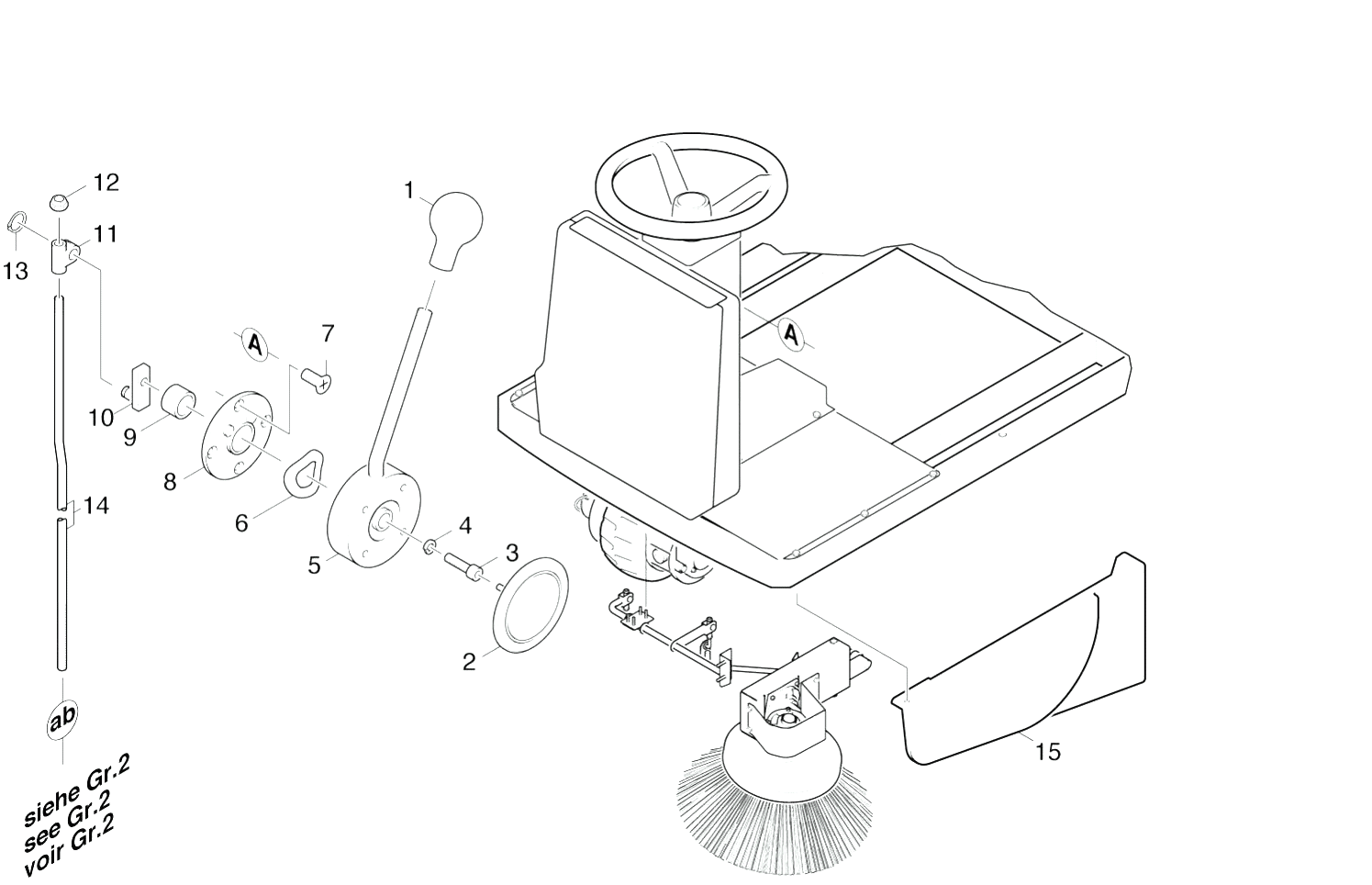

Karcher (Керхер) Рычаг управления (0.196-393.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

REF.	АРТИКУЛ	ОПИСАНИЕ
1	6.321-080.0	Handhold D35
2	7.312-003.0	Washer 6 -200HV-A3E ISO 7090
2	6.368-180.0	Protecting cap
3	7.304-521.0	Hexagonal head screw M 6x16-A4-70 ISO 4
3	7.306-023.0	Cylinder head screw M6x25 -8.8-A2E ISO4
4	5.120-343.0	Hub
4	7.312-165.0	Toothed lock washer A6,4-FST-PH DIN 679
5	6.905-986.0	Side broom
5	6.321-100.0	Lever
6	5.059-829.0	Sheet metal component
6	6.905-644.0	Spring washer
7	7.306-031.0	Screw M 6x16-A2-70 DIN 7984
7	7.305-041.0	Countersunk screw M5x10 -4.8-A2E ISO 20
8	7.312-260.0	Washer 6 -100HV-A3E ISO 7094
8	6.370-139.0	Flange
9	6.330-227.0	Extension spring
9	6.347-052.0	Bush
10	6.330-101.0	Extension spring
10	6.322-014.0	Crank
11	7.316-019.0	Bolt B-16x75 -St-A2E ISO 2341
11	6.393-701.0	Bracket
12	7.312-019.0	Washer 16-200HV-A3E ISO7090
12	7.311-425.0	Hexagon nut M6 -04-A2E ISO 10511
13	7.316-352.0	Cotter 4x36 -St-A2E ISO 1234
13	7.343-014.0	Locking ring 8x0,8-FST-PHR DIN 471
14	7.316-020.0	Bolt B-16x50 -St-A2E ISO 2341
14	6.905-643.0	Threaded rod
15	7.318-002.0	Parallel key 5x5x16 -C45R DIN 6885-1
15	6.961-796.0	Side strip left
16	6.437-484.0	Bearing bush
17	6.503-018.0	Hydraulic motor
18	6.386-667.0	Screw connector
19	6.390-741.0	Hydraulic hose
20	5.038-996.0	Sheet metal component
21	7.310-008.0	Wing nut M 8-A DIN 315
22	6.321-170.0	Star grip M8X61 - VA
24	5.317-121.0	Bolt
25	7.311-008.0	Hexagon nut M12-8-A3E ISO 4032
