Karcher (Керхер) МК защита копра (0.196-467.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

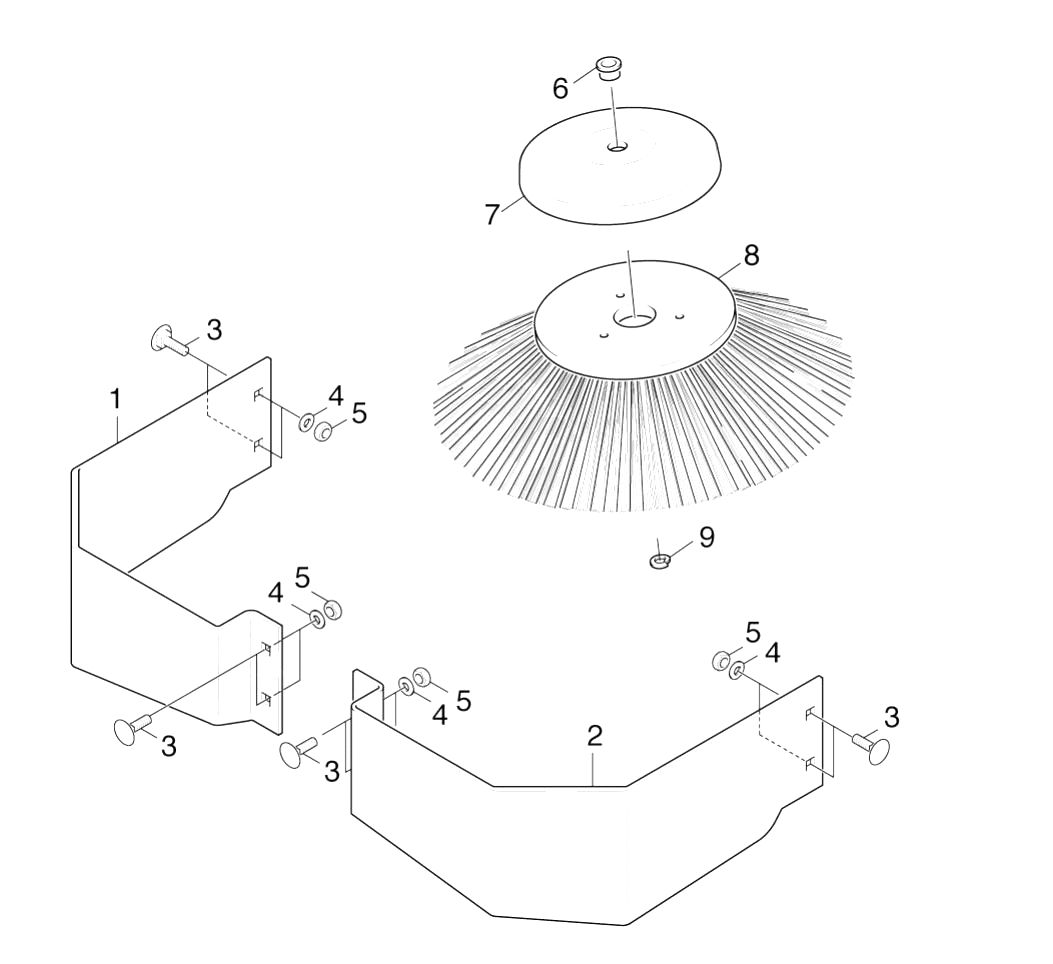

REF.	АРТИКУЛ	ОПИСАНИЕ
1	5.048-195.0	Sheet metal component
3	7.303-187.0	Saucer-head screw M6x16-A2 DIN 603
4	7.312-003.0	Washer 6 -200HV-A3E ISO 7090
5	4.822-003.0	Cable red 1,5mm?x2000mm
5	7.311-003.0	Hexagon nut M6 -8-A2E ISO 4032
6	6.630-385.0	Switch
6	5.110-703.0	Sleeve
7	5.120-305.0	Hub
7	6.641-250.0	Coupler
7	6.903-473.0	Rejecting plate
8	7.306-092.0	Screw M6x20-ST- 8.8-R3R (IN6RD)
8	6.641-401.0	Wire protecting sleeve
8	6.905-626.0	Side broom soft
9	6.651-459.0	Cover yellow
9	7.313-003.0	Spring washer B 6-FSt-A3E DIN 127
9	6.651-283.0	Cover yellow
10	7.312-045.0	Washer 6-200HV-P4E ISO 7089
11	7.318-070.0	Parallel key 5x5x20-C45R DIN 6885-1
11	6.651-295.0	Halogen lamp 24V70W
11	6.651-284.0	Halogen lamp 12V55W
12	7.307-512.0	Threaded pin M5x5 -45H-A2E ISO 4027
13	7.306-023.0	Cylinder head screw M6x25 -8.8-A2E ISO4
14	7.311-200.0	Hexagon nut M6 -04-A2E ISO 4035
15	6.905-626.0	Side broom soft
16	7.307-402.0	Threaded pin M6x10 -St-45H-A2E ISO 4026
17	6.437-468.0	Operating lever
18	6.431-143.0	Bowden wire
19	7.311-224.0	Hexagon nut M 8-04-A2E ISO 4035
20	7.312-004.0	Washer 8 -200HV-A3E ISO 7090
21	7.343-040.0	Locking ring 20x1,2 -St-ph DIN 471
22	5.390-504.0	Label side broom
23	7.306-090.0	Screw M6x16 -8.8-R3R (In6Rd)
24	7.343-304.0	Lock washer 15 -A2 DIN 6799
25	5.110-703.0	Sleeve
26	6.903-473.0	Rejecting plate
27	7.311-425.0	Hexagon nut M6 -04-A2E ISO 10511
28	7.312-292.0	Washer 6 -A2 ISO 7093-1
29	7.313-003.0	Spring washer B 6-FSt-A3E DIN 127
30	6.641-494.0	Wire protecting sleeve
