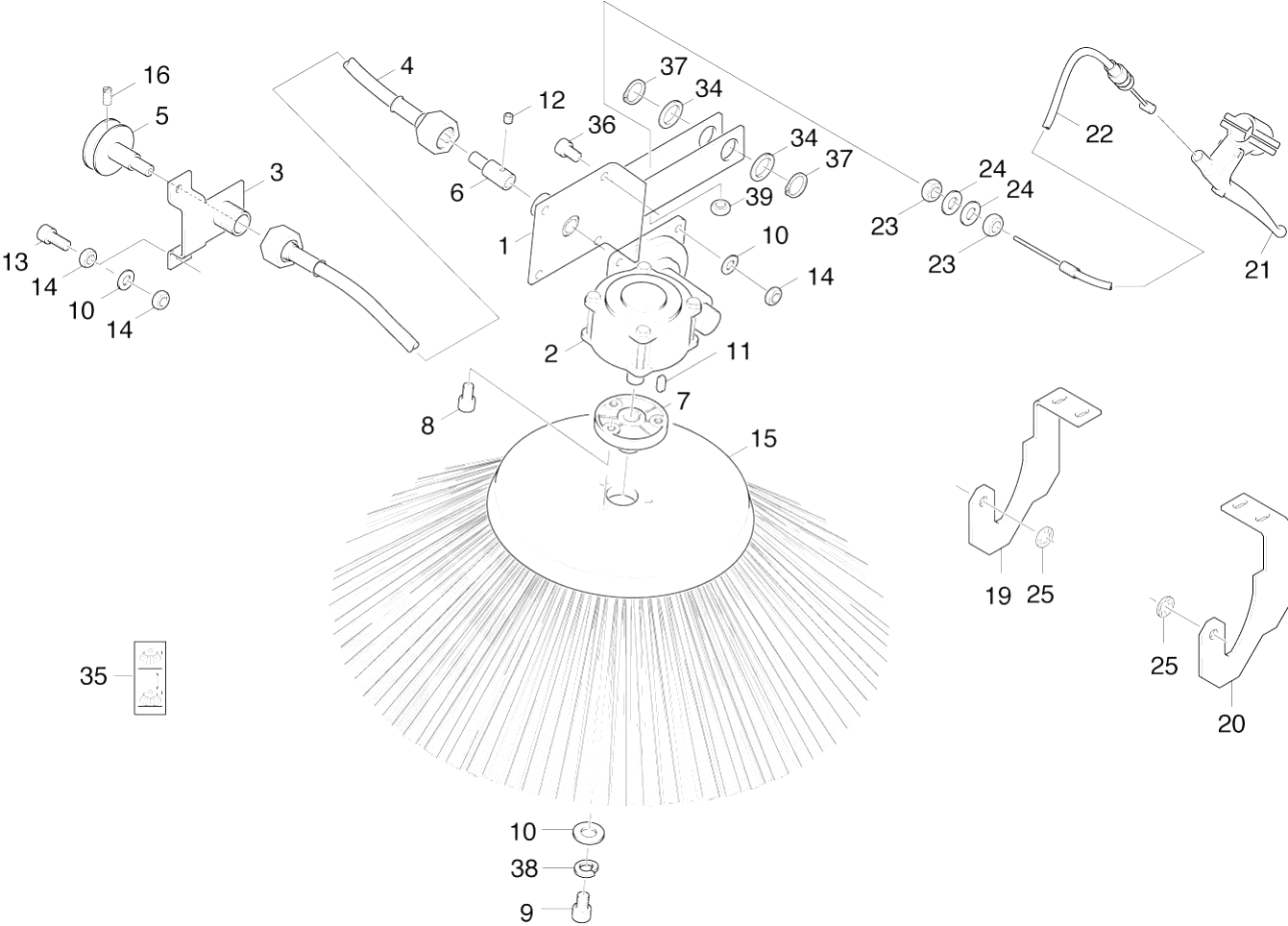

Karcher (Керхер) МК боковая щетка слева (0.196-374.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

REF.	АРТИКУЛ	ОПИСАНИЕ
1	4.038-604.0	Side arm complete
2	6.454-079.0	Worm gearing
3	4.038-460.0	Sheet metal component
4	6.431-126.0	Shaft flexible
5	5.625-286.0	Belt pulley
6	6.431-162.0	Shaft flexible
6	5.407-032.0	Sleeve
7	7.306-094.0	Screw M6x25 -8.8-R3R (In6Rd)
7	5.120-305.0	Hub
8	7.312-003.0	Washer 6 -200HV-A3E ISO 7090
8	7.306-092.0	Screw M6x20-ST- 8.8-R3R (IN6RD)
9	7.311-003.0	Hexagon nut M6 -8-A2E ISO 4032
9	7.306-087.0	Screw M6x10 -8.8-R3R (In6Rd)
10	7.307-512.0	Threaded pin M5x5 -45H-A2E ISO 4027
10	7.313-003.0	Spring washer B 6-FSt-A3E DIN 127
11	5.407-100.0	Sleeve
11	7.318-070.0	Parallel key 5x5x20-C45R DIN 6885-1
12	7.343-304.0	Lock washer 15 -A2 DIN 6799
12	7.307-512.0	Threaded pin M5x5 -45H-A2E ISO 4027
13	4.038-462.0	Sheet metal component
13	7.306-023.0	Cylinder head screw M6x25 -8.8-A2E ISO4
14	7.303-046.0	Screw M6x12 -St-R3R (In6Rd)
14	7.311-200.0	Hexagon nut M6 -04-A2E ISO 4035
15	4.038-747.0	Side arm complete
15	6.951-073.0	Side broom
16	7.307-402.0	Threaded pin M6x10 -St-45H-A2E ISO 4026
17	7.306-092.0	Screw M6x20-ST- 8.8-R3R (IN6RD)
17	5.515-045.0	Roller
18	5.305-262.0	Screw
18	5.305-271.0	Screw
18	7.304-262.0	Hexagonal head screw M8x60-A4-70 ISO 40
19	4.038-462.0	Sheet metal component
19	6.454-079.0	Worm gearing
19	5.481-215.0	Lever right
20	7.306-023.0	Cylinder head screw M6x25 -8.8-A2E ISO4
20	6.903-473.0	Rejecting plate
20	5.481-214.0	Lever left
21	7.311-425.0	Hexagon nut M6 -04-A2E ISO 10511
21	5.110-703.0	Sleeve
21	6.437-468.0	Operating lever
22	5.105-155.0	Axle
22	5.120-305.0	Hub
22	6.431-143.0	Bowden wire
23	7.306-092.0	Screw M6x20-ST- 8.8-R3R (IN6RD)
23	7.311-224.0	Hexagon nut M 8-04-A2E ISO 4035
24	7.312-005.0	Washer 10-200HV-A3E ISO 7090
24	7.312-292.0	Washer 6 -A2 ISO 7093-1
24	7.312-004.0	Washer 8 -200HV-A3E ISO 7090
25	5.321-190.0	Handhold
25	7.313-003.0	Spring washer B 6-FSt-A3E DIN 127
25	6.343-149.0	Quick-fastener
26	7.343-203.0	Lock washer 4-A2 DIN 6799
26	6.905-626.0	Side broom soft
27	5.132-010.0	Plug
27	6.389-794.0	Hose PU 6/4
28	6.389-359.0	Y-Bushing Y4
29	6.431-147.0	Bowden wire side broom
29	6.431-096.0	Bowden wire
29	6.472-941.0	Vacuum diaphragm unit
30	6.303-193.0	Cylinder head screw M 6X 12-8.8-R2R
30	7.311-203.0	Hexagon nut M 5-A4-70 ISO 4035
31	7.312-003.0	Washer 6 -200HV-A3E ISO 7090
31	5.115-772.0	Washer
32	6.330-079.0	Extension spring
33	7.311-004.0	Hexagon nut M8 -8-A3E ISO 4032
33	5.048-620.0	Sheet metal component
34	7.312-004.0	Washer 8 -200HV-A3E ISO 7090
34	7.343-040.0	Locking ring 20x1,2 -St-ph DIN 471
34	5.309-107.0	Threaded rod M5 SB L KMR1050S
35	7.343-040.0	Locking ring 20x1,2 -St-ph DIN 471
35	5.390-504.0	Label side broom
35	6.330-134.0	Extension spring
36	7.343-304.0	Lock washer 15 -A2 DIN 6799
36	7.306-090.0	Screw M6x16 -8.8-R3R (In6Rd)
36	7.312-005.0	Washer 10-200HV-A3E ISO 7090
37	7.343-304.0	Lock washer 15 -A2 DIN 6799
37	7.318-005.0	Parallel key 5x5x28-C45R DIN 6885
38	7.312-292.0	Washer 6 -A2 ISO 7093-1
39	7.311-425.0	Hexagon nut M6 -04-A2E ISO 10511
