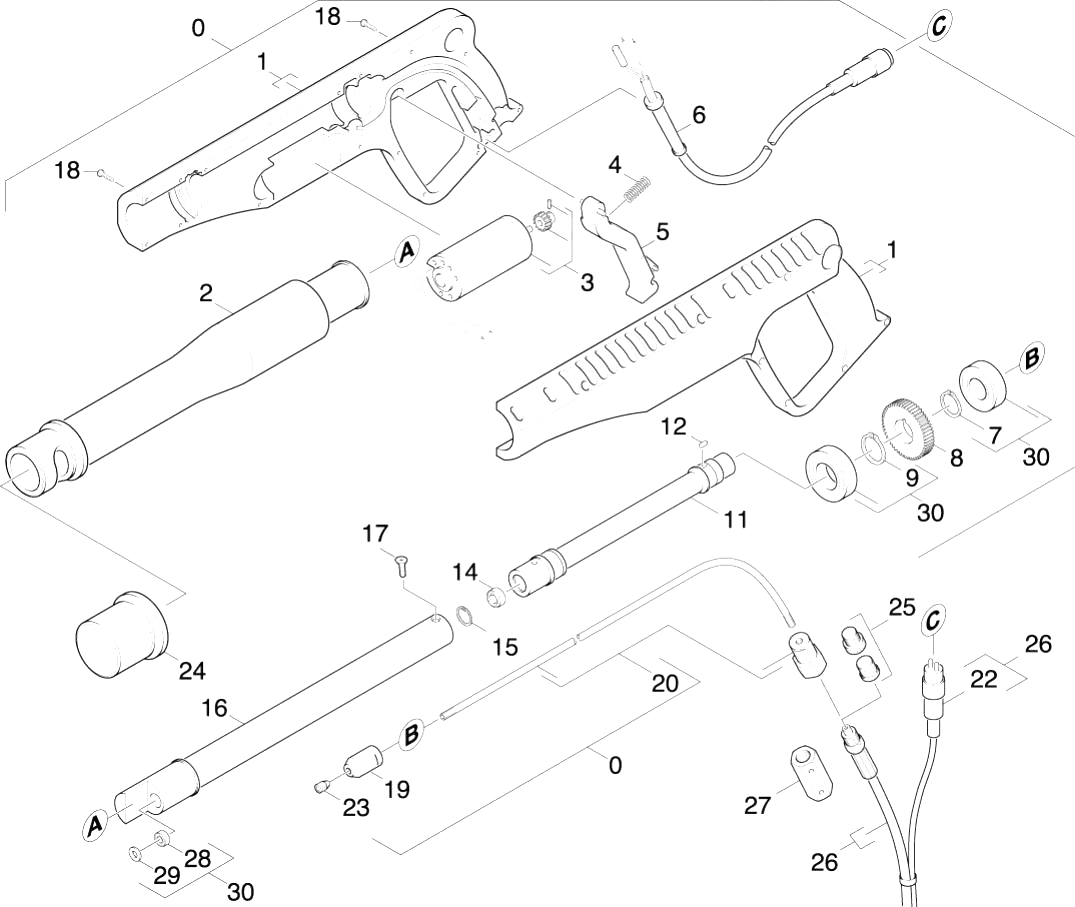

| REF. | АРТИКУЛ | ОПИСАНИЕ | ЗАПРОС НАЛИЧИЯ / ЦЕНЫ |
|---|---|---|---|
| 1 | 6.321-161.0 | Handhold complete pistol | |
| 1 | 7.305-044.0 | Countersunk screw M5x35 -4.8-A2E ISO 20 | |
| 2 | 6.234-055.0 | Protection tube | |
| 3 | 6.491-728.0 | Motor with gear wheel (Pistole) | |
| 4 | 6.330-185.0 | Spring | |
| 5 | 6.373-781.0 | Lever | |
| 6 | 6.906-345.0 | CONNECTION CABLE PI | |
| 8 | 6.348-373.0 | Gear wheel | |
| 11 | 6.234-067.0 | Tube transmission | |
| 12 | 6.491-729.0 | Parallel key | |
| 14 | 6.394-310.0 | Bearing | |
| 15 | 6.343-237.0 | Locking ring | |
| 16 | 6.234-061.0 | Tube short | |
| 16 | 6.234-060.0 | Tube standard | |
| 16 | 6.234-062.0 | Tube long | |
| 17 | 6.386-816.0 | CLOSING SCREW | |
| 17 | 7.305-054.0 | Countersunk screw M 6x 20-A2-70 (IN6RD) | |
| 18 | 7.303-064.0 | Sheet metal screw ST3,5X19-ST-R2R (In6R | |
| 19 | 6.415-855.0 | Nozzle holder HD | |
| 20 | 6.234-051.0 | Tube high pressure complete | |
| 22 | 6.682-000.0 | Cable 10m, H 05 RN-F 2X1 5,4 | |
| 22 | 6.682-602.0 | Cable 20m XBT | |
| 23 | 6.415-854.0 | Nozzle insert high-pressure Saphir TypII | |
| 23 | 6.415-852.0 | Nozzle insert high-pressure Saphir TypII | |
| 24 | 6.368-343.0 | Protecting cap nozzle | |
| 25 | 6.368-352.0 | Protecting cap set | |
| 26 | 6.390-659.0 | High pressure hose 10m | |
| 26 | 6.390-660.0 | High pressure hose 20M | |
| 28 | 6.394-311.0 | Bearing | |
| 29 | 6.312-111.0 | Washer | |
| 30 | 2.883-942.0 | Spare part set |
