| REF. | АРТИКУЛ | ОПИСАНИЕ | ЗАПРОС НАЛИЧИЯ / ЦЕНЫ |
|---|---|---|---|

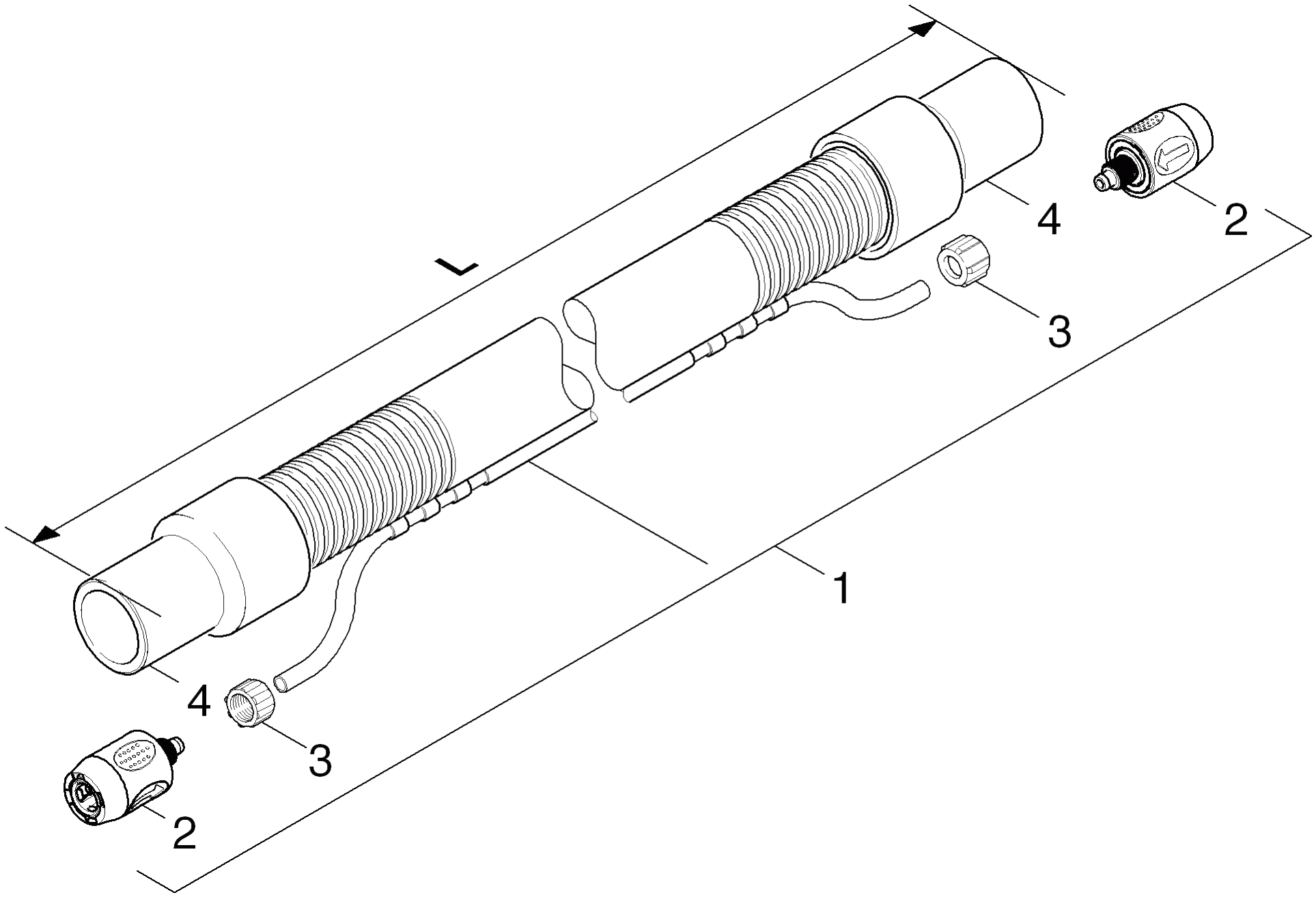

| 1 | 6.394-041.0 | Suction hose DN32/DN38 | |
| 1 | 4.063-662.0 | Cover complete | |
| 2 | 4.446-023.0 | Hose coupling complete for replacement | |
| 3 | 6.394-827.0 | Union nut yellow M 12x1 | |
| 3 | 5.363-455.0 | Joint ring | |
| 4 | 6.906-713.0 | Sleeve DN32 | |
| 4 | 5.734-091.0 | Strainer | |
| 5 | 5.585-032.0 | Float | |
| 6 | 6.322-010.0 | Hand wheel | |
| 7 | 5.308-059.0 | Threaded rod | |
| 8 | 5.408-059.0 | Elbow separator | |
| 9 | 5.408-060.0 | Elbow float | |
| 10 | 6.373-081.0 | U-Fastening 4,5-5mm | |
| 23 | 6.648-589.0 | Cable with plug * CH | |
| 23 | 6.648-590.0 | Cable with plug *AU | |
| 23 | 6.648-588.0 | Power cable 15m PVC *EU | |
| 24 | 6.388-664.0 | Hose DN10 | |
| 25 | 7.373-019.0 | Hose clip A 10-16x9-W4 DIN3017 | |
| 26 | 7.312-059.0 | Washer 14-A2 ISO 7090 | |
| 27 | 5.409-297.0 | Nipple | |
| 28 | 6.642-065.0 | Protection hose | |
| 29 | 6.641-478.0 | Clamp 22,0 | |
| 30 | 7.303-095.0 | Screw 4x 12-ST-10.9-R2R (IN6RD) | |
| 31 | 7.306-078.0 | Screw M5x20 -8.8-R2R (In6Rd) | |
| 32 | 7.312-001.0 | Washer 4 -200HV-A3E ISO 7089 | |
| 34 | 7.312-260.0 | Washer 6 -100HV-A3E ISO 7094 | |
| 35 | 7.312-167.0 | Toothed lock washer A6,4-FSt-A3E DIN 67 | |
| 36 | 7.304-521.0 | Hexagonal head screw M 6x16-A4-70 ISO 4 |
