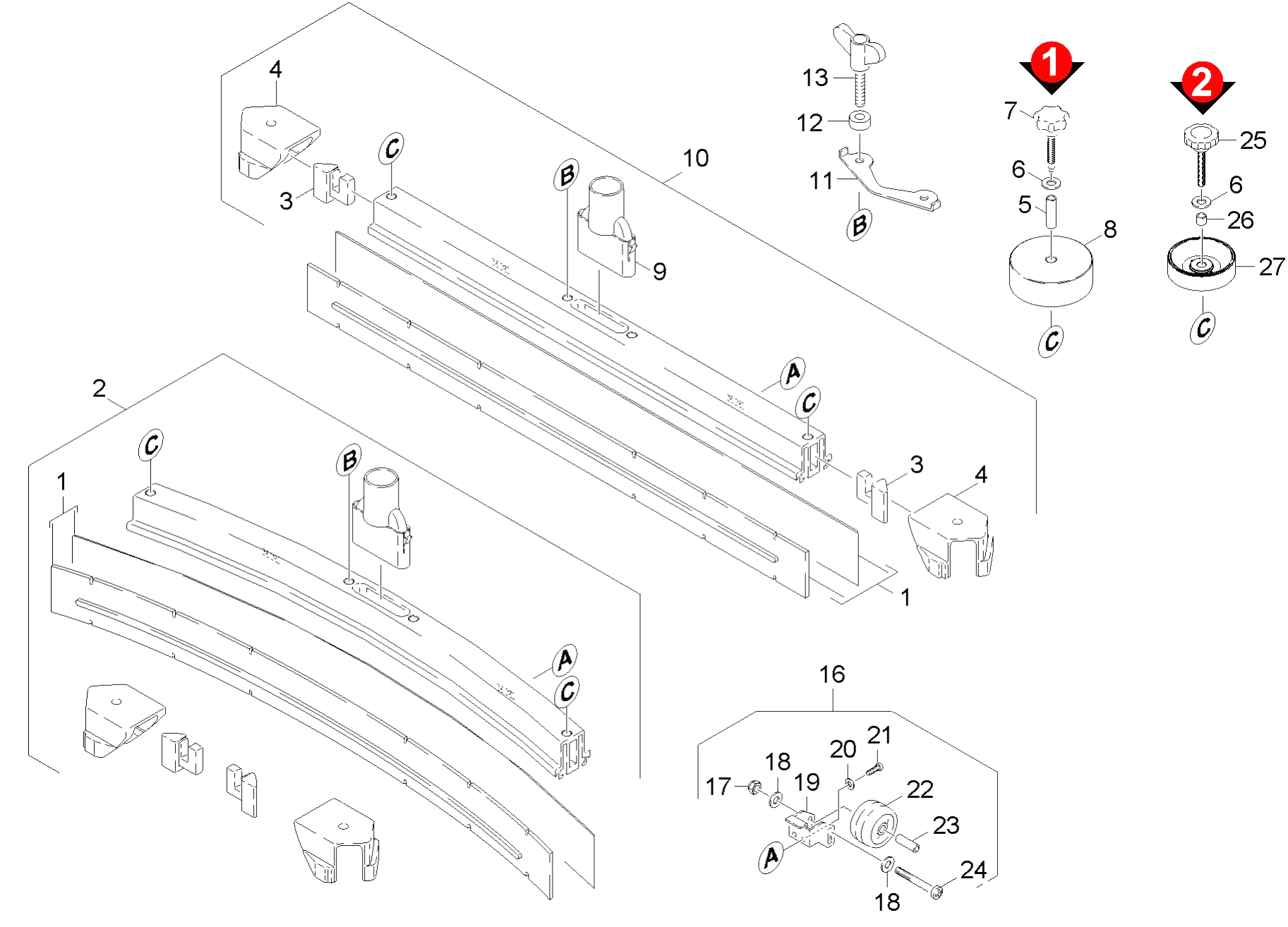

Karcher (Керхер) Всасывающая планка (0.163-984.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

REF.	АРТИКУЛ	ОПИСАНИЕ
1	6.273-216.0	Rubber lip set anti stripe oil resistant
1	6.273-210.0	Rubber lip set ( Oelfest) 1400 mm
1	6.273-252.0	Rubber lip set
2	4.777-415.0	Suction bar curved 1400mm
2	4.777-414.0	Suction bar curved 1160mm
3	2.885-326.0	End piece left / right spare parts set
4	2.885-294.0	End piece left / right spare parts set
5	5.094-050.0	Tube
6	7.312-004.0	Washer 8 -200HV-A3E ISO 7090
7	6.321-243.0	Star grip stainless steel D50x48
8	5.515-096.0	Roller
9	5.031-989.0	Suction nipple
10	4.777-404.0	Suction bar straight 1180mm
10	4.777-405.0	Suction bar straight 1420mm
11	5.032-746.0	Moulded part
11	5.007-217.0	Plate
11	5.007-619.0	Plate suction bar
12	5.321-738.0	Handhold operational concept
12	5.112-748.0	Втулка
12	5.112-810.0	Sleeve VA
13	2.630-001.0	Switch program selection
13	5.305-296.0	Wing screw M8x40 VA
13	5.305-286.0	Барашковый винт M8
14	7.303-107.0	Screw 5x16 -10.9-P2R (K-In6Rd)
15	6.313-014.0	Spring element
16	6.600-210.0	Key only for replacement
16	2.639-561.0	Add-on kit support wheels suction bar
17	6.632-483.0	Switch chemistry
17	7.311-422.0	Hexagon nut M 6-1.4305 ISO 10511
18	7.312-026.0	Washer 6 -A2 ISO 7090
19	5.044-304.0	Holder roller
20	7.312-058.0	Washer 5 -A2 ISO 7090
21	7.303-037.0	Screw M5x10 -St-P2R (In6Rd)
22	6.435-401.0	Wheel D54
23	5.105-245.0	Axle
24	7.306-199.0	Screw M 6x50-A2-70 (IN6RD)
24	7.304-550.0	Hexagonal head screw M 6x45-A4-70 ISO 4
25	6.321-239.0	Star grip VA ?50x43
26	5.094-231.0	Sleeve suction bar in VA
27	5.515-267.0	Deflector roll suction bar
