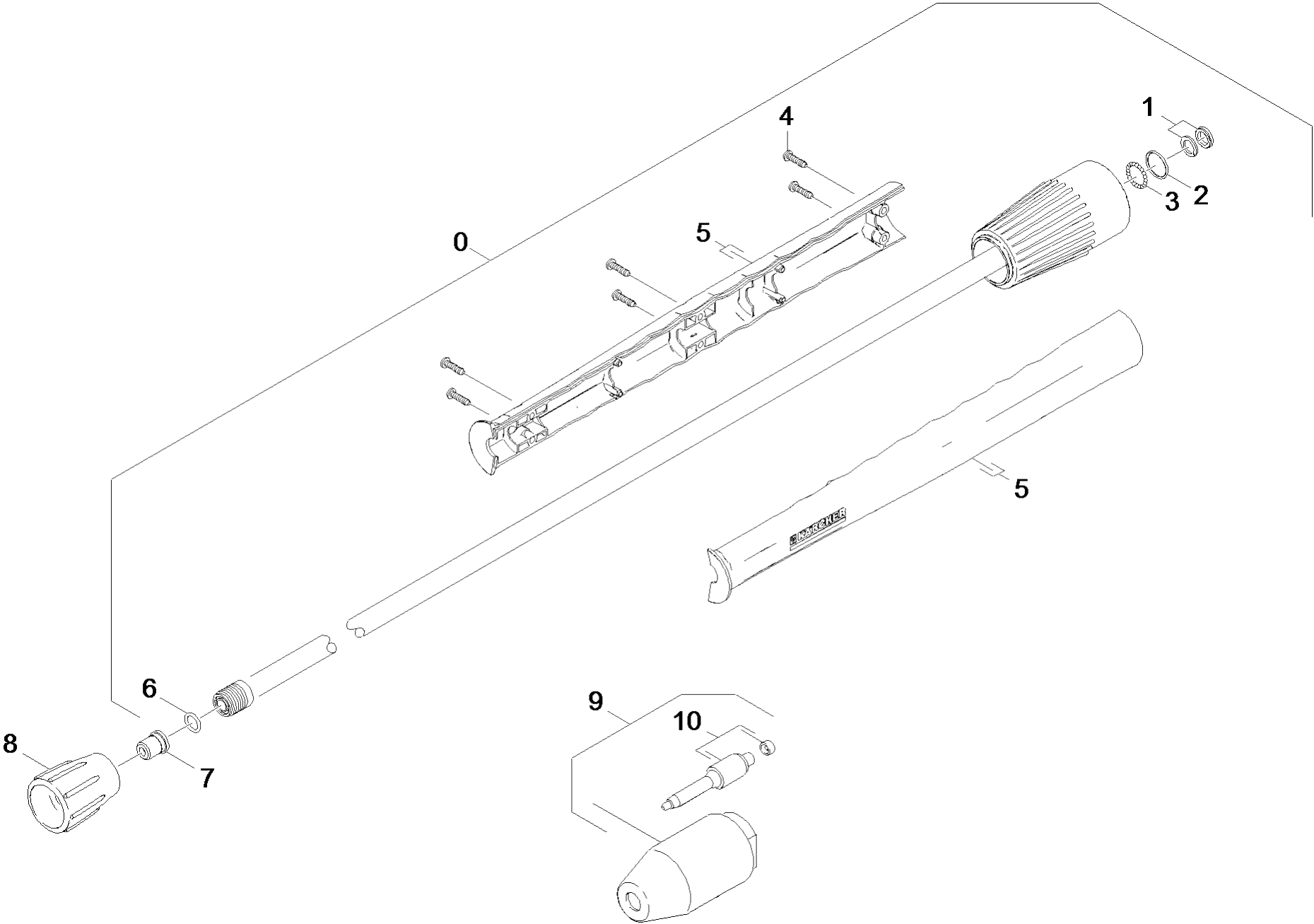

Karcher (Керхер) Струйная трубка (0.116-737.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

REF.	АРТИКУЛ	ОПИСАНИЕ
0	4.760-679.0	Jet pipe complete 700 mm 65 Mpa
0	4.775-824.0	Hand trigger gun only for replacement
1	4.363-692.0	Grooved ring kpl. -nur fuer Ersatz-
1	7.303-129.0	Screw 4x16 -10.9-R2R (K-In6Rd)
2	6.362-524.0	O-Ring seal 17,0 X 1,5
2	5.322-044.0	Handhold few 65MPa 3000l/h
3	7.401-915.0	Sphere 2,5 G20 -1.4034 DIN 5401
3	2.885-215.0	Spare part set seal 65MPa
4	7.303-129.0	Screw 4x16 -10.9-R2R (K-In6Rd)
4	5.411-529.0	Screw plug 65MPa
5	5.321-937.0	Handhold few jet pipe 60 MPa
5	6.362-397.0	O-Ring seal 18,0 X 1,5-NBR 70
6	2.880-990.0	Spare part set O-Ring 5x -Kaercher
6	2.885-216.0	Spare part set adapter 65MPa
7	5.765-166.0	Power nozzle hardened 15049 Tol. 1%
7	5.765-162.0	Power nozzle hardened 0049 Tol. 1%
7	6.363-069.0	O-Ring d. 15x1,5 NBR 90
8	5.401-321.0	Screw connector part
9	6.415-914.0	Power Rotary Jet 35 MPa
9	5.332-046.0	Helical spring
10	6.025-436.0	Nozzles set Power Rotary Jet F7 35 MPa
10	5.332-977.0	Spring
11	2.885-214.0	Spare part set piston 65MPa
12	5.424-145.0	Trigger safety latch yellow
14	5.401-330.0	Screw connector 65MPa
15	5.317-403.0	Pin
16	2.885-212.0	Spare part set lever yellow
17	7.314-042.0	Straight pin 5m6x26 - A1 ISO 2338
18	5.114-572.0	Supportring 65MPa
19	6.362-174.0	O-Ring seal 16,0 X 2,0-NBR 70
20	5.363-768.0	Sealing insert 65MPa
