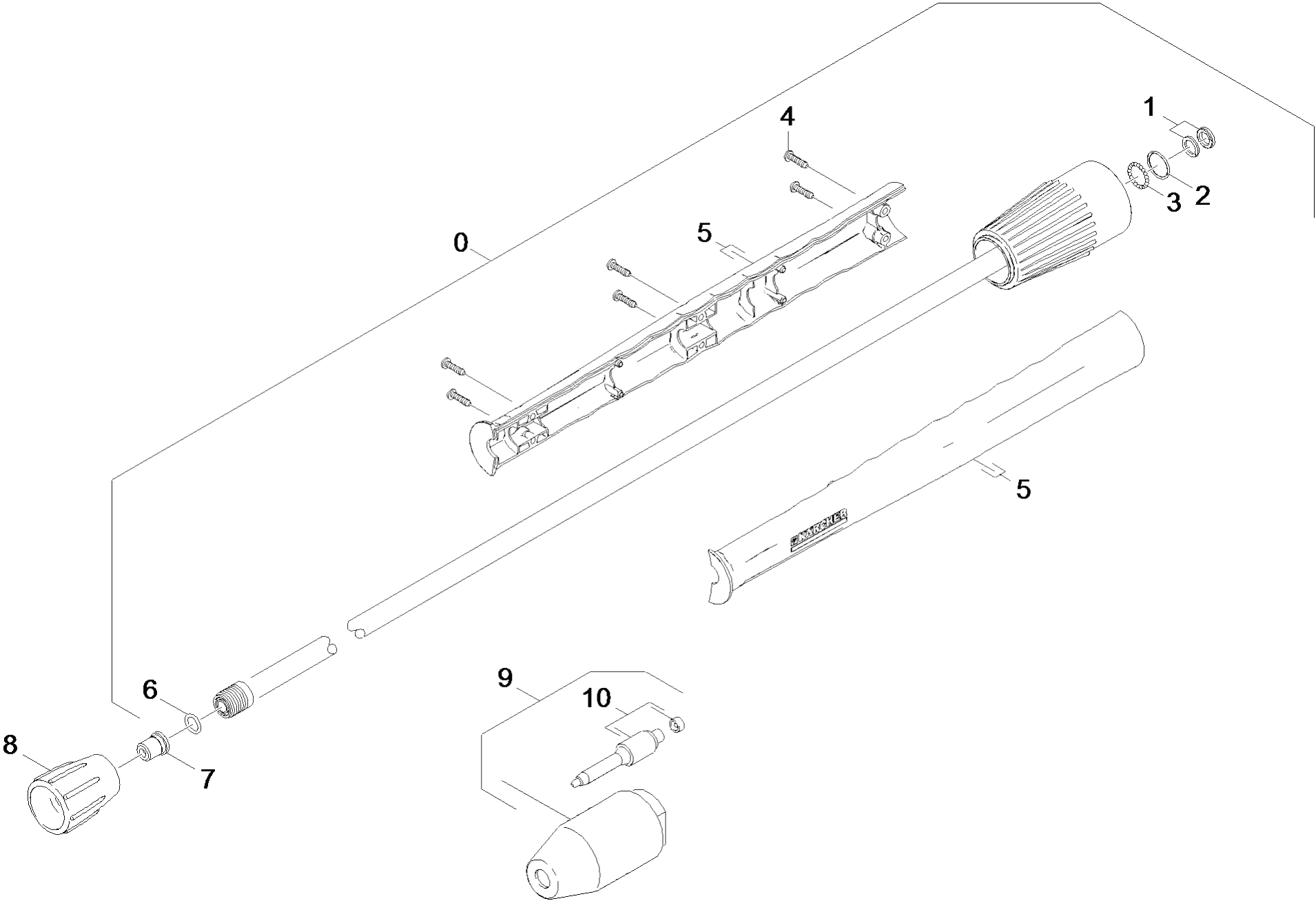

Karcher (Керхер) Струйная трубка (0.116-721.0)
Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85
| REF. |
АРТИКУЛ |
ОПИСАНИЕ |
ЗАПРОС НАЛИЧИЯ / ЦЕНЫ |
| 0 |
4.760-679.0 |
Jet pipe complete 700 mm 65 Mpa |
|
| 1 |
6.365-067.0 |
Grooved ring 24X34 |
|
| 1 |
4.363-692.0 |
Grooved ring kpl. -nur fuer Ersatz- |
|
| 2 |
5.115-307.0 |
Washer |
|
| 2 |
6.362-524.0 |
O-Ring seal 17,0 X 1,5 |
|
| 3 |
6.362-563.0 |
O-Ring seal 40,0 X 2,0-NBR 88 |
|
| 3 |
7.401-915.0 |
Sphere 2,5 G20 -1.4034 DIN 5401 |
|
| 4 |
5.112-727.0 |
Втулка |
|
| 4 |
7.303-129.0 |
Screw 4x16 -10.9-R2R (K-In6Rd) |
|
| 5 |
6.362-397.0 |
O-Ring seal 18,0 X 1,5-NBR 70 |
|
| 5 |
6.365-069.0 |
Compact seal 24X36X7 |
|
| 5 |
5.321-937.0 |
Handhold few jet pipe 60 MPa |
|
| 6 |
2.885-216.0 |
Spare part set adapter 65MPa |
|
| 6 |
6.343-144.0 |
Snap ring 24 |
|
| 6 |
2.880-990.0 |
Spare part set O-Ring 5x -Kaercher |
|
| 7 |
6.363-069.0 |
O-Ring d. 15x1,5 NBR 90 |
|
| 7 |
5.115-314.0 |
Washer |
|
| 7 |
5.765-165.0 |
Power nozzle hardened 15046 Tol. 1% |
|
| 7 |
5.765-161.0 |
Power nozzle hardened 0046 Tol. 1% |
|
| 8 |
5.363-202.0 |
Joint ring |
|
| 8 |
5.401-321.0 |
Screw connector part |
|
| 9 |
5.332-046.0 |
Helical spring |
|
| 9 |
6.367-032.0 |
Rotary shaft seal 24X 35-NBR |
|
| 9 |
6.415-914.0 |
Power Rotary Jet 35 MPa |
|
| 10 |
5.332-977.0 |
Spring |
|
| 10 |
7.304-461.0 |
Hexagonal head screw M 8x50-8.8-A2E IS |
|
| 10 |
6.025-436.0 |
Nozzles set Power Rotary Jet F7 35 MPa |
|
| 11 |
2.885-214.0 |
Spare part set piston 65MPa |
|
| 11 |
5.060-408.0 |
PISTON GUIDE |
|
| 12 |
5.424-145.0 |
Trigger safety latch yellow |
|
| 12 |
6.362-565.0 |
O-Ring seal 135,0 X 2,5-NBR 90 |
|
| 13 |
5.332-187.0 |
Helical spring |
|
| 14 |
5.401-330.0 |
Screw connector 65MPa |
|
| 14 |
5.115-315.0 |
Washer |
|
| 15 |
5.317-403.0 |
Pin |
|
| 15 |
4.640-054.0 |
Piston stainless steel complete |
|
| 16 |
2.885-212.0 |
Spare part set lever yellow |
|
| 17 |
7.314-042.0 |
Straight pin 5m6x26 - A1 ISO 2338 |
|
| 18 |
5.114-572.0 |
Supportring 65MPa |
|
| 19 |
6.362-174.0 |
O-Ring seal 16,0 X 2,0-NBR 70 |
|
| 20 |
5.363-768.0 |
Sealing insert 65MPa |
|
