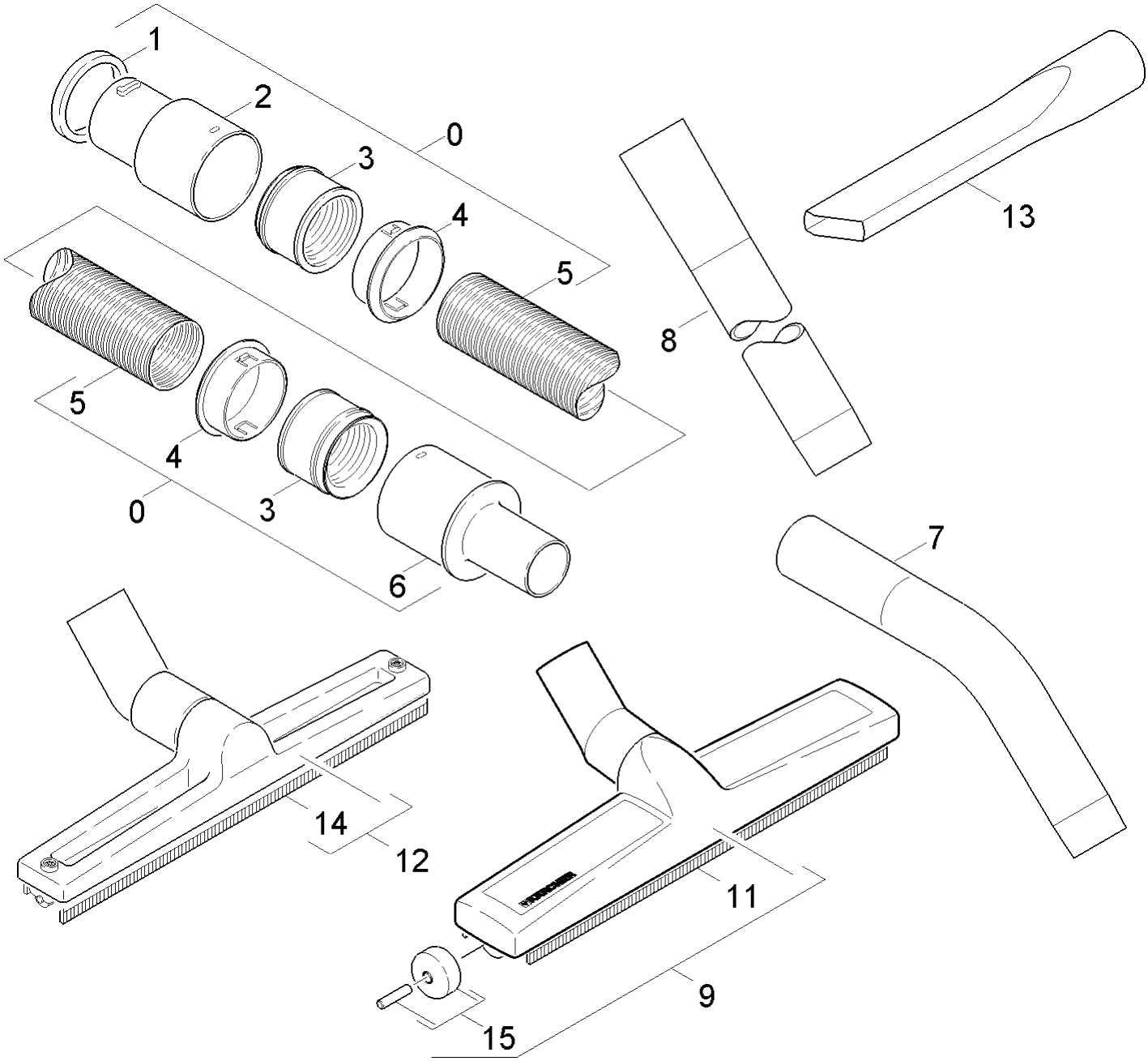

| REF. | АРТИКУЛ | ОПИСАНИЕ | ЗАПРОС НАЛИЧИЯ / ЦЕНЫ |
|---|---|---|---|
| 0 | 4.440-263.0 | Suction hose DN40 | |
| 1 | 5.114-105.0 | Ring | |
| 1 | 5.031-111.0 | Cover external | |
| 1 | 5.030-997.0 | Cover external | |
| 2 | 5.470-008.0 | Coupler | |
| 2 | 6.903-395.0 | Screw 5,0x28 | |
| 3 | 5.363-155.0 | Joint ring DN40 | |
| 3 | 6.303-195.0 | Oval head screw 3,5X16 | |
| 4 | 5.262-013.0 | Clamping ring DN40 | |
| 4 | 5.031-002.0 | Holder | |
| 4 | 6.414-446.0 | Filter | |
| 5 | 6.388-723.0 | Всасывающий шланг DN38 | |
| 5 | 6.682-281.0 | Electronics | |
| 5 | 6.682-300.0 | Electronics | |
| 5 | 5.031-001.0 | Screen rear | |
| 6 | 5.453-010.0 | Connecting sleeve 40 | |
| 6 | 5.031-003.0 | Cap | |
| 6 | 6.362-857.0 | Cord cellular rubber D10 | |
| 7 | 6.900-276.0 | Elbow DN40 STAHL | |
| 7 | 5.692-028.0 | Connection piece aspiration left | |
| 7 | 5.034-473.0 | Shearing shackle | |
| 8 | 6.900-275.0 | Suction tube DN40-0,55m | |
| 8 | 5.692-029.0 | Connection piece aspiration right | |
| 8 | 6.641-676.0 | Cable with plug 7,5m * GB | |
| 8 | 6.647-496.0 | Cable with plug | |
| 8 | 6.648-223.0 | Кабель с штепсель *CH 7.5M | |
| 8 | 6.647-069.0 | Power cable 10m | |
| 8 | 6.647-109.0 | Cable with plug *AU | |
| 8 | 6.648-232.0 | Cable with plug *RA | |
| 9 | 5.031-112.0 | Cover inside | |
| 9 | 5.030-996.0 | Cover inside | |
| 9 | 6.906-554.0 | Насадка для пола DN40 | |
| 9 | 6.903-987.0 | Cable bushing Z12,5E | |
| 9 | 5.820-070.0 | Cable bushing 6-8,5mm | |
| 10 | 5.030-995.0 | Base plate | |
| 10 | 5.031-134.0 | Base plate | |
| 10 | 5.030-993.0 | Washer | |
| 11 | 6.905-877.0 | Rubber lip set only for replacement | |
| 11 | 5.731-020.0 | Filter cartridge | |
| 11 | 7.306-194.0 | Screw M6x20 -A2-70 (In6Rd) | |
| 12 | 6.906-554.0 | Насадка для пола DN40 | |
| 12 | 5.050-030.0 | Frame | |
| 12 | 5.046-616.0 | Speed nut | |
| 13 | 6.903-033.0 | Crevice nozzle DN40 | |
| 13 | 7.311-424.0 | Hexagon nut M4 -8-A2E ISO 7040 | |
| 13 | 5.042-828.0 | Holder above | |
| 14 | 6.903-337.0 | Rubber lip set for floor nozzle | |
| 14 | 7.312-001.0 | Washer 4 -200HV-A3E ISO 7089 | |
| 15 | 4.515-342.0 | Roller complete with axle | |
| 15 | 6.362-401.0 | O-Ring seal 3,1 X 1,6 | |
| 15 | 5.070-178.0 | Tank 67L | |
| 15 | 5.070-186.0 | Емкость 67 L | |
| 15 | 5.070-517.0 | Tank 67L | |
| 16 | 5.107-144.0 | Probe | |
| 16 | 6.903-297.0 | Flange | |
| 17 | 6.373-593.0 | U-Fastening | |
| 17 | 7.303-128.0 | Countersunk screw 5x20 -10.9-R2R (In6Rd | |
| 18 | 5.031-116.0 | Extension | |
| 18 | 6.903-296.0 | Connecting nipple | |
| 19 | 6.435-241.0 | Castor with brake | |
| 20 | 7.303-026.0 | Screw 4x16 -A2-70 (In6Rd) | |
| 20 | 5.053-056.0 | Boom | |
| 21 | 7.312-045.0 | Washer 6-200HV-P4E ISO 7089 | |
| 22 | 5.003-102.0 | Baffle plate | |
| 22 | 5.004-655.0 | Strap | |
| 23 | 5.031-004.0 | Cap | |
| 23 | 7.312-045.0 | Washer 6-200HV-P4E ISO 7089 | |
| 24 | 5.314-094.0 | Pin | |
| 25 | 5.037-079.0 | Hook | |
| 26 | 6.303-055.0 | Oval head screw steel zinc-plated 4,8X 2 | |
| 27 | 5.030-998.0 | Hand grip | |
| 28 | 7.306-194.0 | Screw M6x20 -A2-70 (In6Rd) |
