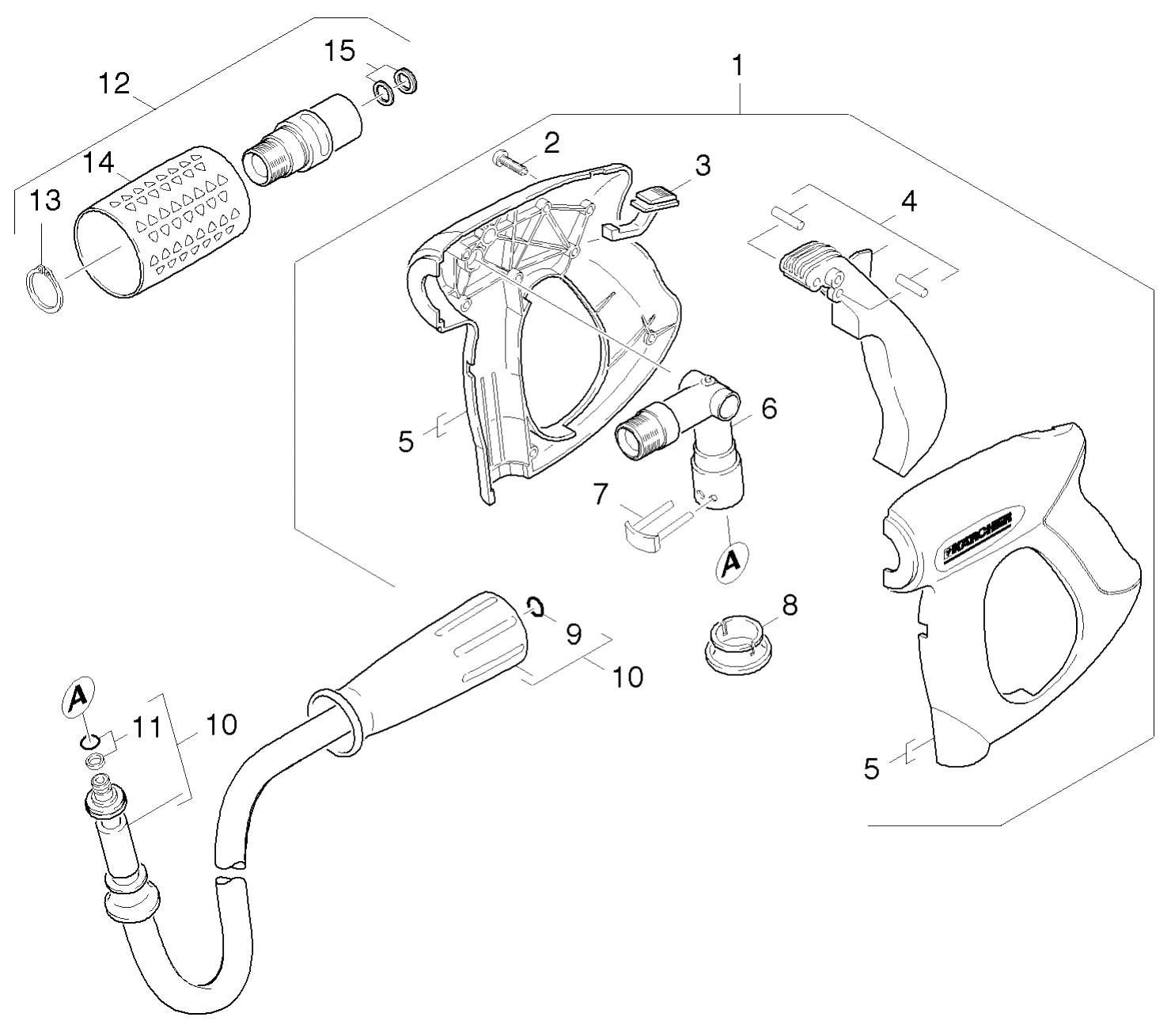

Karcher (Керхер) Pучной пистолет-распылитель (0.199-052.0)
Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85
| REF. |
АРТИКУЛ |
ОПИСАНИЕ |
ЗАПРОС НАЛИЧИЯ / ЦЕНЫ |
| 0 |
4.775-463.0 |
HAND TRIGGER GUN EASY PRESS |
|
| 0 |
4.623-550.0 |
Motor complete |
|
| 0 |
4.623-566.0 |
Motor complete |
|
| 0 |
4.623-565.0 |
Motor complete |
|
| 0 |
4.623-563.0 |
Motor complete |
|
| 0 |
4.623-562.0 |
Motor complete |
|
| 0 |
4.623-551.0 |
Motor complete |
|
| 1 |
5.583-125.0 |
Valve screw |
|
| 1 |
7.343-008.0 |
Locking ring 25x1,2-St-vz DIN 471 |
|
| 1 |
6.273-042.0 |
Sealing tape 19x4 |
|
| 1 |
5.321-534.0 |
Handhold few |
|
| 1 |
7.306-041.0 |
Cylinder head screw M8x20 -8.8-A2E ISO |
|
| 2 |
6.362-500.0 |
O-Ring seal complete /1ST.-R. |
|
| 2 |
7.303-096.0 |
Screw 4x22 -ST-10.9-R2R (IN6RD) |
|
| 2 |
5.058-033.0 |
Sheet metal component |
|
| 2 |
7.312-159.0 |
Toothed lock washer A8,4-FST-PH DIN 679 |
|
| 3 |
6.362-381.0 |
O-Ring seal 13x2 - NBR 70 |
|
| 3 |
5.481-331.0 |
Slider |
|
| 3 |
7.306-180.0 |
Screw M5x10-A2-70 (In6Rd) |
|
| 3 |
5.322-012.0 |
Hand wheel |
|
| 3 |
5.115-565.0 |
Washer |
|
| 4 |
4.580-262.0 |
Valve complete |
|
| 4 |
4.070-465.0 |
Tank |
|
| 4 |
6.362-642.0 |
O-Ring d. 7,65x1,78 -NBR 80 |
|
| 4 |
7.318-035.0 |
Parallel key 8x7x25 -C45R DIN 6885-1 |
|
| 5 |
5.321-669.0 |
Handhold few |
|
| 5 |
7.306-091.0 |
Cylinder head screw M12x90- 8.8-A3E ISO |
|
| 5 |
5.587-103.0 |
Valve housing |
|
| 5 |
5.481-178.0 |
Lever |
|
| 5 |
5.120-282.0 |
Wobble plate |
|
| 5 |
5.120-235.0 |
Wobble plate |
|
| 5 |
5.120-249.0 |
Wobble plate |
|
| 6 |
7.373-022.0 |
Hose clip A-16-27x9 -W2-2 DIN3017 |
|
| 6 |
5.044-624.0 |
Holder |
|
| 6 |
5.404-079.0 |
Hollow screw |
|
| 6 |
6.401-225.0 |
Taper roller bearing 41 |
|
| 7 |
4.037-013.0 |
Hook |
|
| 7 |
5.411-117.0 |
Screw plug |
|
| 7 |
5.364-095.0 |
Flat gasket |
|
| 7 |
5.553-348.0 |
Piston |
|
| 7 |
7.367-005.0 |
Radial shaft seal ring A35x53x7-NBR DIN |
|
| 7 |
7.367-009.0 |
Radial shaft seal ring A35x52x7-NBR DIN |
|
| 8 |
5.110-596.0 |
Sleeve |
|
| 8 |
7.362-004.0 |
Joint ring A12x15,5 -Cu DIN 7603 |
|
| 8 |
5.584-026.0 |
Valve pin |
|
| 8 |
5.581-243.0 |
Valve seat |
|
| 8 |
5.411-100.0 |
Screw plug |
|
| 9 |
5.442-997.0 |
Hose |
|
| 9 |
5.394-066.0 |
Protection part |
|
| 9 |
6.362-182.0 |
O-Ring seal 7,65x1,78 - NBR 90 |
|
| 9 |
6.363-273.0 |
O-Ring seal 11,0 x 2,0 |
|
| 10 |
6.391-238.0 |
High pressure hose DN6-10m |
|
| 10 |
5.550-229.0 |
Cylinder head |
|
| 10 |
7.311-431.0 |
Hexagon nut M 5-1.4305 ISO 10511 |
|
| 10 |
5.332-413.0 |
Helical spring |
|
| 10 |
6.362-161.0 |
O-Ring seal 19,3 X 2,4 |
|
| 11 |
4.363-691.0 |
O-Ring seal kpl. -nur fuer Ersatz- |
|
| 11 |
5.332-999.0 |
Helical spring |
|
| 11 |
7.316-013.0 |
Cotter 3,2x32-A ISO 1234 |
|
| 11 |
6.362-964.0 |
O-Ring seal complete |
|
| 11 |
5.070-457.0 |
Tank oil |
|
| 12 |
4.775-526.0 |
Rotary controller 270 l |
|
| 12 |
7.401-907.0 |
Sphere 3/8 G200-1.4301 DIN 5401 |
|
| 12 |
7.306-194.0 |
Screw M6x20 -A2-70 (In6Rd) |
|
| 12 |
5.427-214.0 |
Manifold |
|
| 12 |
5.063-195.0 |
Cover |
|
| 13 |
7.343-069.0 |
Locking ring 25x1,2-1.4122 DIN 471 |
|
| 13 |
4.581-019.0 |
Valve seat |
|
| 13 |
5.115-158.0 |
Washer |
|
| 13 |
6.362-992.0 |
O-Ring seal complete 2,6X1,9 |
|
| 13 |
5.057-055.0 |
Support |
|
| 14 |
5.321-668.0 |
Handle |
|
| 14 |
6.362-858.0 |
O-Ring seal 11,0 X 1,5 |
|
| 14 |
5.585-024.0 |
Float |
|
| 14 |
5.316-400.0 |
Bolt |
|
| 14 |
6.288-016.0 |
Gear oil 1L |
|
| 15 |
4.363-695.0 |
Grooved ring only for replacement |
|
| 15 |
7.311-422.0 |
Hexagon nut M 6-1.4305 ISO 10511 |
|
| 15 |
5.110-596.0 |
Sleeve |
|
| 16 |
7.312-279.0 |
Washer 6-CuZn ISO 7093-1 |
|
| 16 |
4.037-013.0 |
Hook |
|
| 17 |
4.591-044.0 |
Excess-current |
|
| 17 |
5.481-029.0 |
Lever |
|
| 17 |
6.362-503.0 |
O-Ring seal 8,0 X 1,0 |
|
| 18 |
5.311-177.0 |
Hexagon nut |
|
| 18 |
7.373-022.0 |
Hose clip A-16-27x9 -W2-2 DIN3017 |
|
| 19 |
7.311-004.0 |
Hexagon nut M8 -8-A3E ISO 4032 |
|
| 19 |
5.442-997.0 |
Hose |
|
| 19 |
4.363-691.0 |
O-Ring seal kpl. -nur fuer Ersatz- |
|
| 20 |
6.363-333.0 |
O-Ring seal complete 12,42 H-NBR 85 1St- |
|
| 20 |
6.362-078.0 |
O-Ring seal 13,3x2,4 |
|
| 20 |
6.390-025.0 |
High pressure hose DN 8 |
|
| 21 |
6.362-182.0 |
O-Ring seal 7,65x1,78 - NBR 90 |
|
| 21 |
5.443-285.0 |
Hose stem |
|
| 22 |
6.362-365.0 |
O-Ring seal complete 1ST.-R.- 7,65X 1,7 |
|
| 22 |
5.310-062.0 |
Nut |
|
| 22 |
4.775-471.0 |
Rotary controller 700L |
|
| 22 |
4.775-470.0 |
Rotary controller 416L |
|
| 23 |
7.306-320.0 |
Oval head screw M 5x40-A2-70 ISO 7045 |
|
| 23 |
6.390-320.0 |
Hose DN 16 |
|
| 23 |
7.343-069.0 |
Locking ring 25x1,2-1.4122 DIN 471 |
|
| 24 |
6.630-008.0 |
Micro switch |
|
| 24 |
5.050-197.0 |
Sheet metal component |
|
| 24 |
5.321-668.0 |
Handle |
|
| 25 |
4.363-695.0 |
Grooved ring only for replacement |
|
