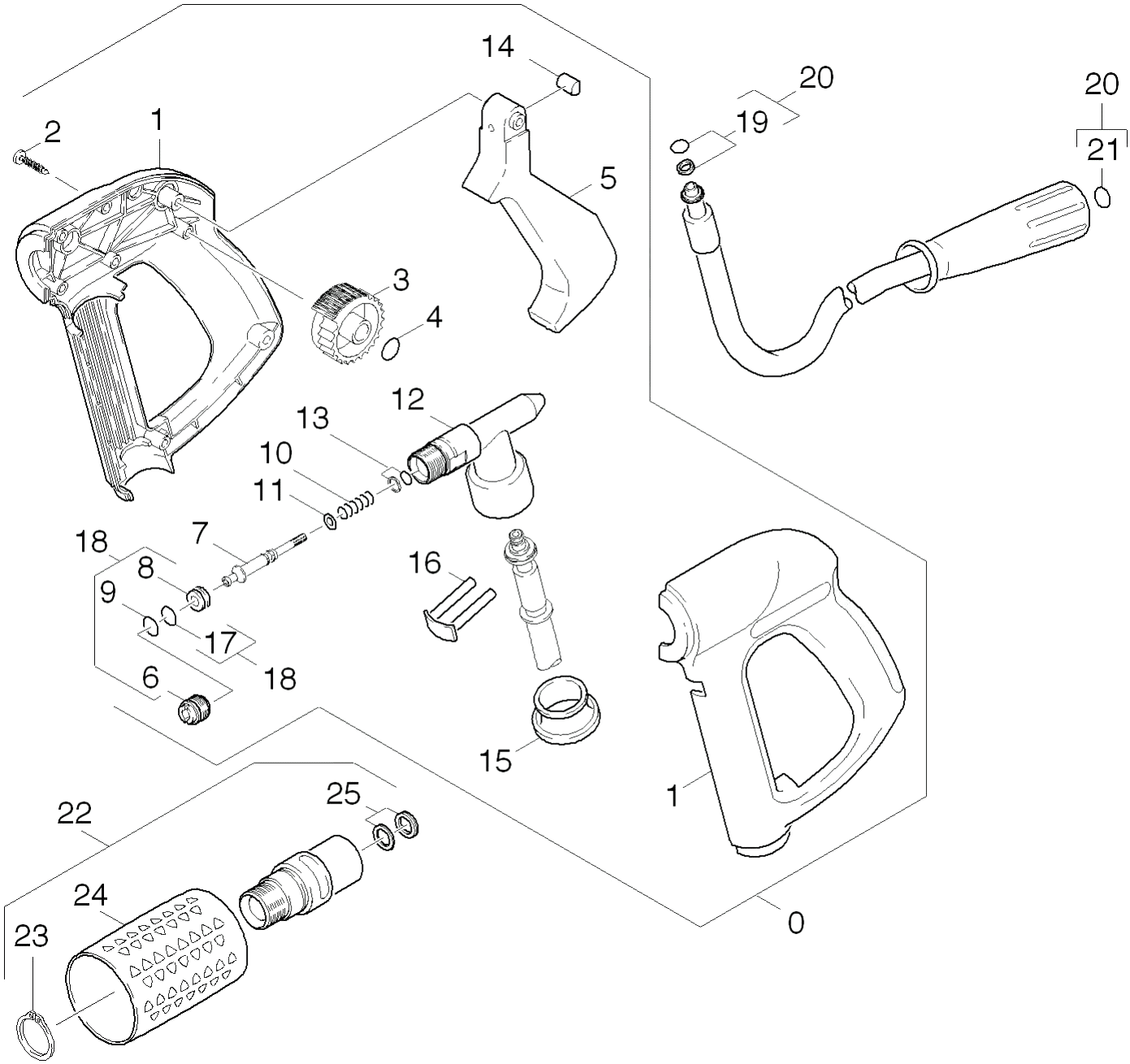

| REF. | АРТИКУЛ | ОПИСАНИЕ | ЗАПРОС НАЛИЧИЯ / ЦЕНЫ |
|---|---|---|---|
| 1 | 5.321-534.0 | Handhold few | |
| 2 | 5.058-033.0 | Sheet metal component | |
| 2 | 7.303-096.0 | Screw 4x22 -ST-10.9-R2R (IN6RD) | |
| 3 | 7.306-180.0 | Screw M5x10-A2-70 (In6Rd) | |
| 3 | 5.322-012.0 | Hand wheel | |
| 4 | 4.070-465.0 | Tank | |
| 4 | 6.362-642.0 | O-Ring d. 7,65x1,78 -NBR 80 | |
| 5 | 5.587-103.0 | Valve housing | |
| 5 | 5.481-178.0 | Lever | |
| 6 | 5.044-624.0 | Holder | |
| 6 | 5.404-079.0 | Hollow screw | |
| 7 | 5.364-095.0 | Flat gasket | |
| 7 | 5.553-348.0 | Piston | |
| 8 | 5.584-026.0 | Valve pin | |
| 8 | 5.581-243.0 | Valve seat | |
| 9 | 5.394-066.0 | Protection part | |
| 9 | 6.362-182.0 | O-Ring seal 7,65x1,78 - NBR 90 | |
| 10 | 7.311-431.0 | Hexagon nut M 5-1.4305 ISO 10511 | |
| 10 | 5.332-413.0 | Helical spring | |
| 11 | 7.316-013.0 | Cotter 3,2x32-A ISO 1234 | |
| 11 | 6.362-964.0 | O-Ring seal complete | |
| 12 | 7.306-194.0 | Screw M6x20 -A2-70 (In6Rd) | |
| 12 | 5.427-214.0 | Manifold | |
| 13 | 5.115-158.0 | Washer | |
| 13 | 6.362-992.0 | O-Ring seal complete 2,6X1,9 | |
| 14 | 5.585-024.0 | Float | |
| 14 | 5.316-400.0 | Bolt | |
| 15 | 7.311-422.0 | Hexagon nut M 6-1.4305 ISO 10511 | |
| 15 | 5.110-596.0 | Sleeve | |
| 16 | 7.312-279.0 | Washer 6-CuZn ISO 7093-1 | |
| 16 | 4.037-013.0 | Hook | |
| 17 | 5.481-029.0 | Lever | |
| 17 | 6.362-503.0 | O-Ring seal 8,0 X 1,0 | |
| 18 | 7.373-022.0 | Hose clip A-16-27x9 -W2-2 DIN3017 | |
| 19 | 4.363-691.0 | O-Ring seal kpl. -nur fuer Ersatz- | |
| 19 | 5.442-997.0 | Hose | |
| 20 | 6.390-025.0 | High pressure hose DN 8 | |
| 20 | 6.362-078.0 | O-Ring seal 13,3x2,4 | |
| 21 | 5.443-285.0 | Hose stem | |
| 22 | 4.775-471.0 | Rotary controller 700L | |
| 22 | 4.775-470.0 | Rotary controller 416L | |
| 22 | 5.310-062.0 | Nut | |
| 23 | 7.343-069.0 | Locking ring 25x1,2-1.4122 DIN 471 | |
| 23 | 6.390-320.0 | Hose DN 16 | |
| 24 | 5.321-668.0 | Handle | |
| 24 | 5.050-197.0 | Sheet metal component | |
| 25 | 4.363-695.0 | Grooved ring only for replacement |
