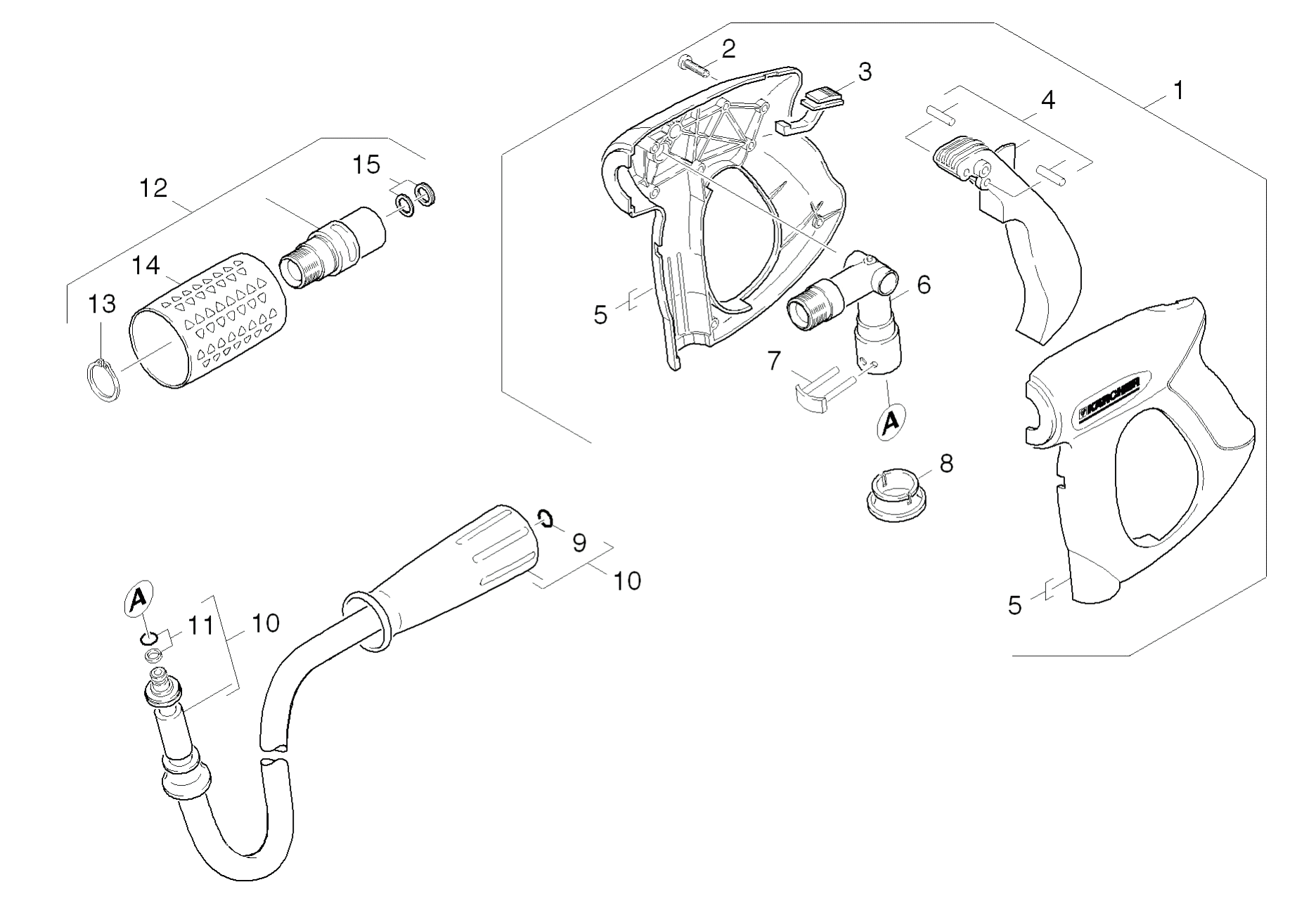

Karcher (Керхер) Pучной пистолет-распылитель (0.148-865.0)
Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85
| REF. |
АРТИКУЛ |
ОПИСАНИЕ |
ЗАПРОС НАЛИЧИЯ / ЦЕНЫ |
| 1 |
4.775-463.0 |
HAND TRIGGER GUN EASY PRESS |
|
| 1 |
6.304-099.0 |
Saucer-head screw M 6x 18-4.8-R2R |
|
| 1 |
6.362-686.0 |
O-Ring seal 20,0 X 3,0 |
|
| 1 |
7.306-074.0 |
Cylinder head screw M10x35-8.8-A3E ISO4 |
|
| 2 |
7.303-096.0 |
Screw 4x22 -ST-10.9-R2R (IN6RD) |
|
| 2 |
6.310-053.0 |
Putting nut |
|
| 2 |
5.427-307.0 |
Manifold |
|
| 2 |
5.063-611.0 |
Cover housing |
|
| 3 |
5.481-331.0 |
Slider |
|
| 3 |
5.069-166.0 |
Device cover HD 9/20-4M |
|
| 3 |
6.362-579.0 |
O-Ring seal 17,5 X 3,5 |
|
| 4 |
5.321-751.0 |
Handhold |
|
| 4 |
5.110-341.0 |
Sleeve |
|
| 5 |
5.321-669.0 |
Handhold few |
|
| 5 |
5.107-262.0 |
Bar |
|
| 5 |
5.427-411.0 |
Manifold short |
|
| 6 |
5.044-735.0 |
Holder |
|
| 6 |
6.303-153.0 |
Screw M5x15-ST-R2R (IN6RD) |
|
| 7 |
4.037-013.0 |
Hook |
|
| 7 |
5.032-475.0 |
Covering cap cover |
|
| 7 |
5.427-298.0 |
Manifold short |
|
| 8 |
5.110-596.0 |
Sleeve |
|
| 8 |
4.580-645.0 |
Proportioning valve chemistry |
|
| 8 |
7.306-043.0 |
Cylinder head screw M8x30 -8.8-A2E ISO |
|
| 9 |
6.388-216.0 |
Hose DN 5 |
|
| 9 |
6.362-528.0 |
O-Ring seal 9,5 X 2,0 |
|
| 10 |
6.390-025.0 |
High pressure hose DN 8 |
|
| 10 |
4.060-625.0 |
Cover cleaning agents |
|
| 10 |
5.411-168.0 |
Valve screw M16x1 |
|
| 11 |
4.363-691.0 |
O-Ring seal kpl. -nur fuer Ersatz- |
|
| 11 |
5.731-652.0 |
Filter with weight |
|
| 11 |
4.422-011.0 |
Манометр в сборе |
|
| 11 |
4.423-024.0 |
Pressure gauge complete |
|
| 12 |
4.775-470.0 |
Rotary controller 416L |
|
| 12 |
5.032-747.0 |
Retaining bracket |
|
| 13 |
7.343-008.0 |
Locking ring 25x1,2-St-vz DIN 471 |
|
| 13 |
5.392-038.0 |
Wheel cap |
|
| 13 |
5.034-494.0 |
Retaining bracket |
|
| 14 |
5.321-668.0 |
Handle |
|
| 14 |
6.343-217.0 |
Clamping washer D25 |
|
| 14 |
4.744-242.0 |
Switch kpl. -nur f?r Ersatz- |
|
| 15 |
4.363-695.0 |
Grooved ring only for replacement |
|
| 15 |
4.515-255.0 |
Колесо |
|
| 15 |
5.411-152.0 |
Screw plug |
|
| 16 |
5.105-413.0 |
Axle |
|
| 16 |
6.362-384.0 |
O-Ring seal 9x1,5 - NBR 70 |
|
| 17 |
5.050-431.0 |
Frame rear panel |
|
| 17 |
4.550-945.0 |
Cylinder head -nur fuer Ersatz- |
|
| 18 |
5.050-258.0 |
Frame front part |
|
| 18 |
6.362-481.0 |
O-Ring seal 14,0 x 2,0 NBR 80 |
|
| 19 |
5.057-062.0 |
Support |
|
| 19 |
5.583-146.0 |
Valve screw |
|
| 20 |
5.692-083.0 |
Air circulation electric control box bot |
|
| 20 |
4.580-594.0 |
Valve complete |
|
| 21 |
7.303-108.0 |
Screw 5x20 -10.9-R2R (In6Rd) |
|
| 21 |
5.411-166.0 |
CLOSING SCREW |
|
| 22 |
5.044-647.0 |
Holder roller rear |
|
| 22 |
6.362-690.0 |
O-Ring seal 7x2 - NBR 70 |
|
| 23 |
5.044-216.0 |
Holder |
|
| 23 |
5.411-070.0 |
Screw plug |
|
| 24 |
5.128-511.0 |
Axle |
|
| 24 |
5.443-624.0 |
Nipple |
|
| 25 |
5.515-191.0 |
Roller |
|
| 25 |
6.362-113.0 |
O-Ring seal 6,0 x 2,0 NBR 70 |
|
| 26 |
5.044-646.0 |
Holder roller front |
|
| 26 |
6.362-175.0 |
O-Ring seal 5,28x 1,78 |
|
| 27 |
5.050-252.0 |
Frame front part |
|
| 27 |
7.401-908.0 |
Sphere 7 G300 -1.4301 DIN 5401 |
|
| 28 |
5.044-216.0 |
Holder |
|
| 28 |
5.332-258.0 |
Helical spring |
|
| 29 |
7.303-048.0 |
Screw M6x20 -St-R3R (In6Rd) |
|
| 29 |
2.884-853.0 |
Spare part set nozzle insert |
|
| 30 |
5.032-782.0 |
Moulded part |
|
| 30 |
4.769-026.0 |
Nozzle insert |
|
| 31 |
7.312-060.0 |
Washer 24-100HV-A3E ISO 7091 |
|
| 31 |
4.481-226.0 |
Valve seat complete |
|
| 32 |
6.394-491.0 |
Bottle PE 2,5 L |
|
| 32 |
2.884-512.0 |
Valve (3 Stueck) |
|
| 33 |
6.362-547.0 |
O-Ring seal 20,0x1,5-NBR 70 |
|
| 34 |
5.583-177.0 |
Valve screw M20x1 |
|
| 35 |
6.362-388.0 |
O-Ring seal 8,0x1,5 -EPDM 70 |
|
| 36 |
6.362-575.0 |
O-Ring seal 12,42 KOMPL |
|
| 37 |
4.591-056.0 |
Set excess-current |
|
| 38 |
6.362-365.0 |
O-Ring seal complete 1ST.-R.- 7,65X 1,7 |
|
| 39 |
7.311-510.0 |
Hexagon nut M 8-8-A2E ISO 7040 |
|
| 40 |
4.427-310.0 |
Manifold complete |
|
| 41 |
6.414-141.0 |
Strainer |
|
| 42 |
6.362-161.0 |
O-Ring seal 19,3 X 2,4 |
|
| 43 |
5.443-291.0 |
Hose stem |
|
| 44 |
5.310-076.0 |
Nut |
|
| 45 |
6.362-381.0 |
O-Ring seal 13x2 - NBR 70 |
|
| 46 |
5.605-348.0 |
Filter housing |
|
| 47 |
6.414-949.0 |
Filter cartridge |
|
| 48 |
5.363-613.0 |
Seal |
|
| 49 |
5.064-107.0 |
Cover |
|
