Группа компаний "MIRZIP"

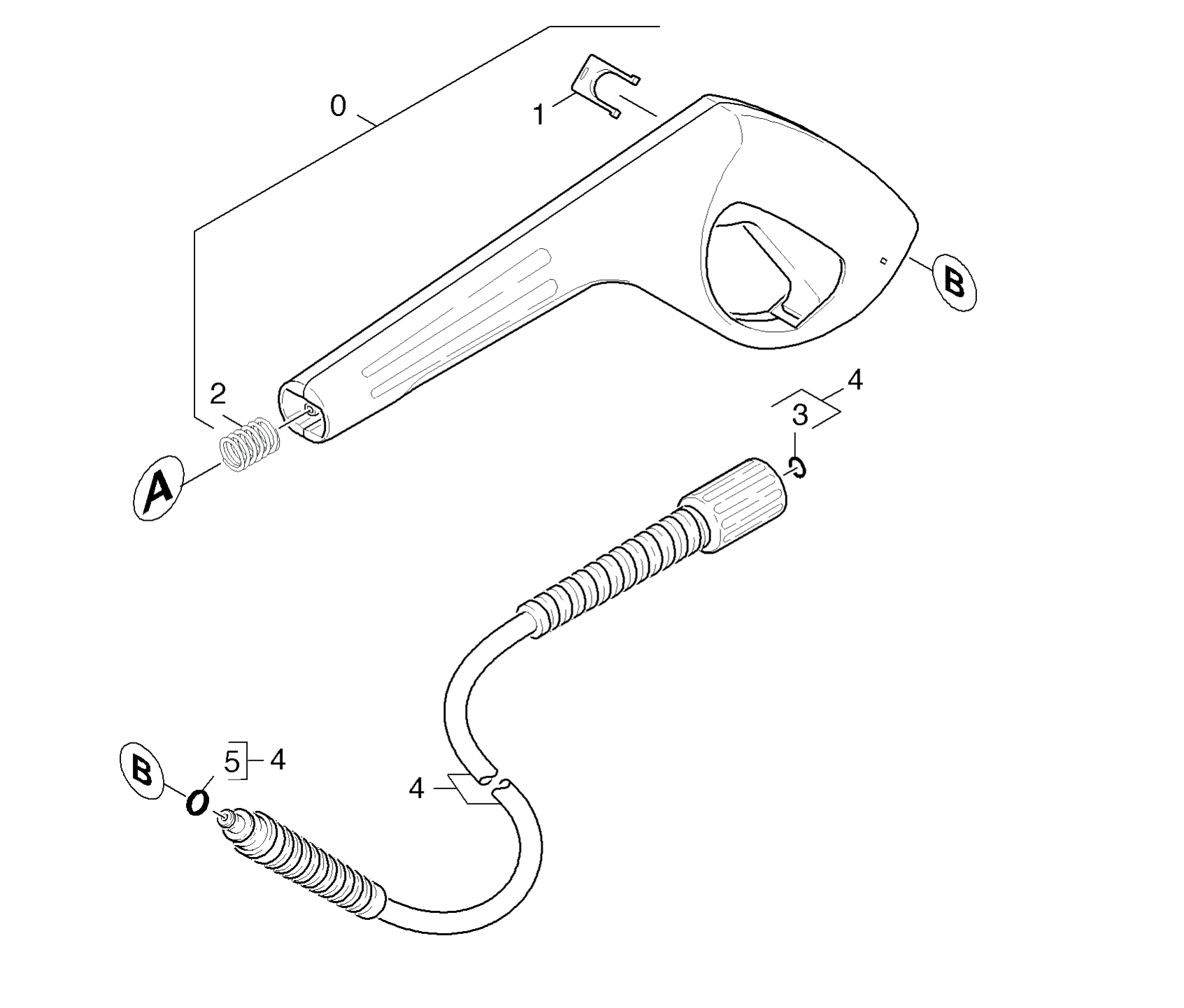

| REF. | АРТИКУЛ | ОПИСАНИЕ | ЗАПРОС НАЛИЧИЯ / ЦЕНЫ |
|---|---|---|---|
| 1 | 5.037-164.0 | Clamp | |
| 1 | 9.036-898.0 | Screw plug | |
| 2 | 5.332-464.0 | Pressure spring | |
| 2 | 9.081-402.0 | Кольцо 15х2 | |
| 3 | 9.001-353.0 | Suction connection complete | |
| 4 | 6.390-463.0 | H 9 high pressure hose | |
| 4 | 5.731-598.0 | Fine filter | |
| 5 | 6.363-198.0 | O-Ring seal 6x2 90 shore PUR | |
| 5 | 9.086-199.0 | Винт | |
| 6 | 9.081-417.0 | Кольцо круглого сечения 20 х 2 | |
| 7 | 9.001-281.0 | By-pass valve | |
| 8 | 4.025-894.0 | High-pressure outlet complete K5.91M | |
| 9 | 6.362-151.0 | O-Ring d. 10 x 2 NBR 70 | |
| 10 | 7.306-151.0 | Cylinder head screw M8x65 -8.8-A2E ISO4 | |
| 11 | 9.001-277.0 | Spare parts set chemistry | |
| 13 | 9.001-800.0 | Spare part set control head | |
| 14 | 9.081-424.0 | Фасонное уплотнение | |
| 15 | 9.001-274.0 | Spare part set control head | |
| 16 | 9.001-110.0 | Moulded part complete | |
| 17 | 6.362-875.0 | Grooved ring | |
| 18 | 9.037-059.0 | Support ring | |
| 19 | 9.001-275.0 | Valve set | |
| 20 | 9.001-276.0 | Joining piece | |
| 21 | 6.465-031.0 | Connection 3/4 | |
| 22 | 9.001-819.0 | Cage complete | |
| 23 | 4.769-035.0 | Nozzle insert | |
| 24 | 9.037-142.0 | Distance holder |
