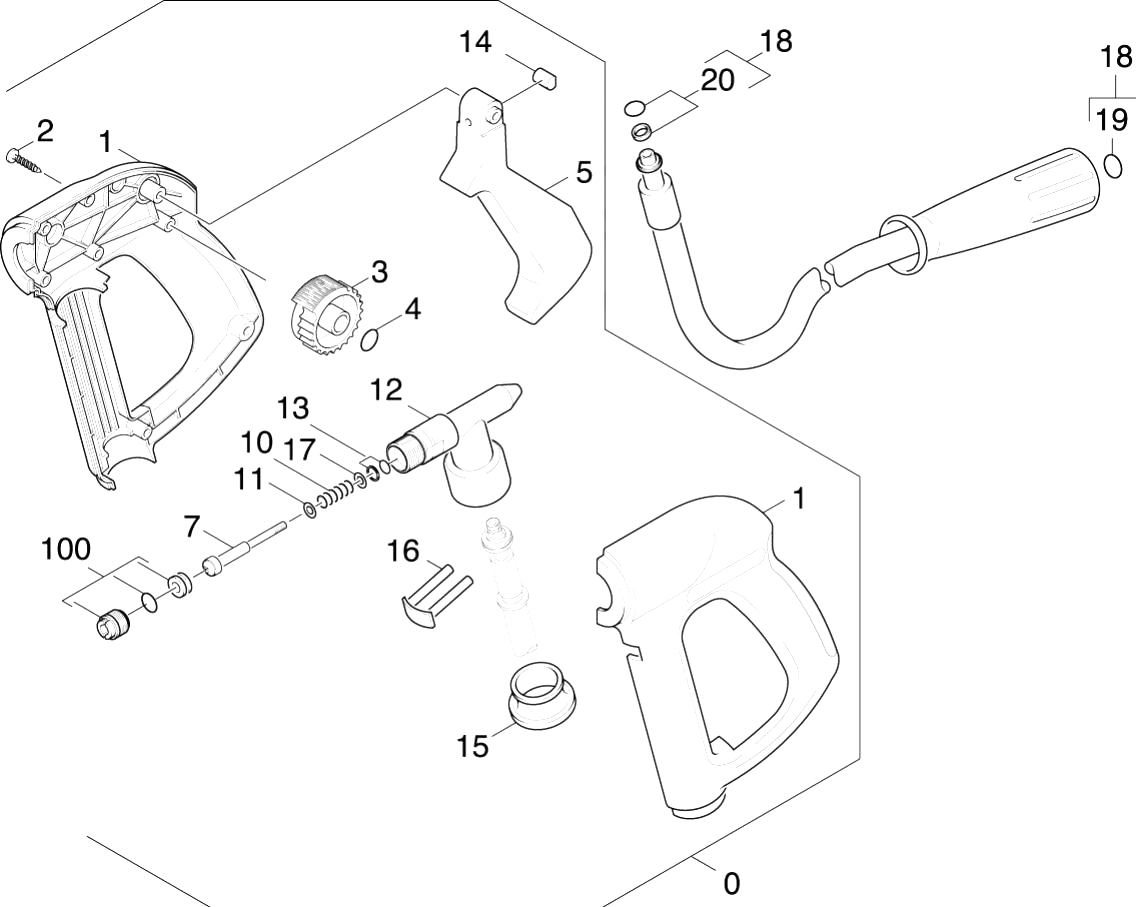

| REF. | АРТИКУЛ | ОПИСАНИЕ | ЗАПРОС НАЛИЧИЯ / ЦЕНЫ |
|---|---|---|---|
| 1 | 5.321-494.0 | Handhold few | |
| 1 | 5.321-307.0 | Handhold | |
| 1 | 4.775-463.0 | HAND TRIGGER GUN EASY PRESS | |
| 2 | 7.303-096.0 | Screw 4x22 -ST-10.9-R2R (IN6RD) | |
| 2 | 4.291-014.0 | Spindle complete | |
| 2 | 4.050-619.0 | Frame | |
| 3 | 7.314-629.0 | Grooved pin 2x10 -A1 ISO 8742 | |
| 4 | 6.362-642.0 | O-Ring d. 7,65x1,78 -NBR 80 | |
| 4 | 6.362-468.0 | O-Ring seal complete 1ST.-R. | |
| 5 | 5.481-178.0 | Lever | |
| 5 | 5.059-900.0 | Side plate | |
| 6 | 4.591-038.0 | Overflow valve | |
| 7 | 5.553-347.0 | Piston | |
| 7 | 6.388-194.0 | Hose DN 7 | |
| 8 | 5.110-596.0 | Sleeve | |
| 9 | 4.580-102.0 | Valve | |
| 10 | 5.332-384.0 | Helical spring | |
| 11 | 5.115-675.0 | Washer | |
| 11 | 5.332-028.0 | Helical spring | |
| 12 | 5.427-210.0 | Manifold | |
| 13 | 6.362-477.0 | O-Ring seal complete 1ST.-R. | |
| 13 | 5.132-010.0 | Plug | |
| 14 | 5.316-400.0 | Bolt | |
| 15 | 5.110-596.0 | Sleeve | |
| 15 | 5.443-448.0 | Nipple chemistry | |
| 15 | 6.472-112.0 | O-Ring seal 10,0 x 2,4 NBR 70 | |
| 17 | 7.401-908.0 | Sphere 7 G300 -1.4301 DIN 5401 | |
| 17 | 6.414-136.0 | Filter | |
| 18 | 4.822-241.0 | Cable complete | |
| 19 | 5.110-714.0 | Sleeve | |
| 20 | 5.009-547.0 | Plate bracket float tank | |
| 21 | 6.421-214.0 | Pressure gauge 0-300 BAR | |
| 22 | 7.303-037.0 | Screw M5x10 -St-P2R (In6Rd) | |
| 23 | 6.362-384.0 | O-Ring seal 9x1,5 - NBR 70 | |
| 25 | 5.584-091.0 | Valve pin check valve | |
| 26 | 6.362-851.0 | O-Ring seal 4 x 2 NBR 90 | |
| 27 | 7.306-047.0 | Cylinder head screw M8x60 -8.8-A2E ISO4 | |
| 29 | 6.631-807.0 | Micro switch | |
| 30 | 5.053-051.0 | Bracket | |
| 31 | 5.332-322.0 | Spring | |
| 33 | 5.034-494.0 | Retaining bracket | |
| 35 | 5.411-070.0 | Screw plug | |
| 37 | 2.884-916.0 | Valve (3 St?ck) | |
| 39 | 6.363-273.0 | O-Ring seal 11,0 x 2,0 | |
| 40 | 6.414-252.0 | Strainer | |
| 41 | 5.063-616.0 | Suction cover | |
| 43 | 7.306-129.0 | Screw M6x40 -8.8-R3R (In6Rd) | |
| 45 | 5.003-062.0 | Plate | |
| 47 | 5.115-465.0 | Washer | |
| 49 | 6.362-376.0 | O-Ring seal 24,0 X 1,5 | |
| 51 | 5.115-744.0 | Washer | |
| 53 | 4.553-183.0 | Piston complete | |
| 55 | 5.115-616.0 | Washer | |
| 57 | 6.362-587.0 | O-Ring seal complete 2,9 -NBR 70 | |
| 59 | 6.388-216.0 | Hose DN 5 | |
| 62 | 6.362-634.0 | O-Ring seal 15,6 x 1,78-NBR 70 | |
| 64 | 6.362-586.0 | O-Ring seal 2,9 X 1,78 -NBR 70 | |
| 66 | 5.332-203.0 | Helical spring | |
| 67 | 5.582-119.0 | Valve disc | |
| 68 | 5.583-187.0 | Valve screw |
