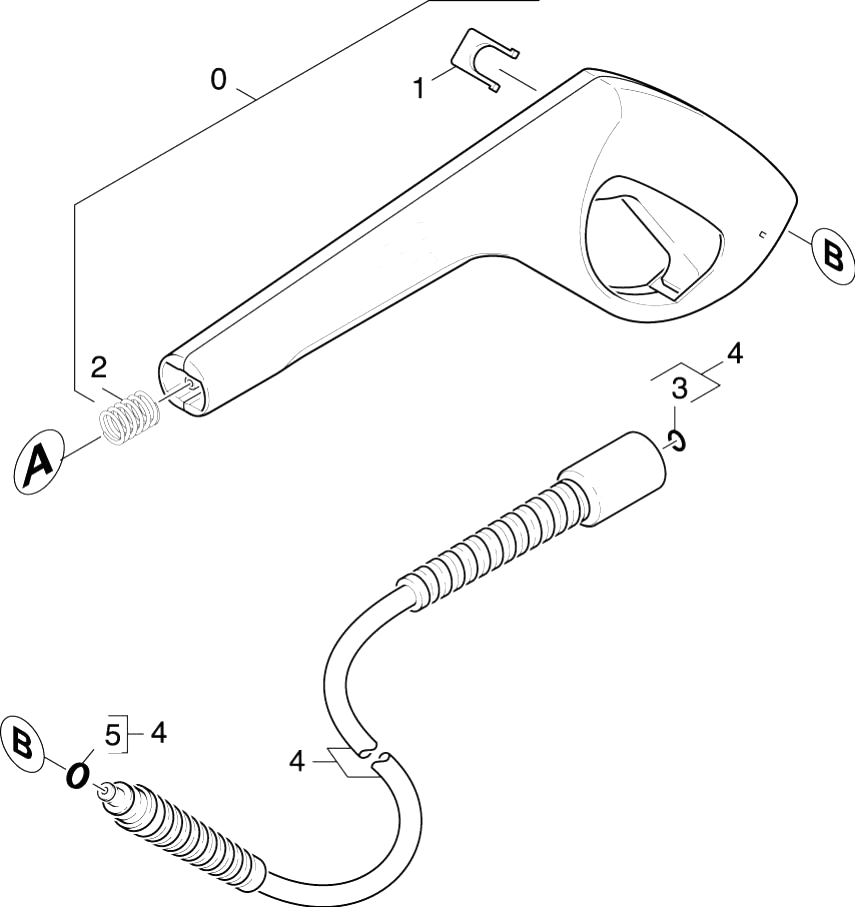

Karcher (Керхер) Pучной пистолет-распылитель (0.148-424.0)
Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85
| REF. |
АРТИКУЛ |
ОПИСАНИЕ |
ЗАПРОС НАЛИЧИЯ / ЦЕНЫ |
| 0 |
2.642-172.0 |
G 160 Q pistol Quick Connect |
|
| 1 |
5.037-164.0 |
Clamp |
|
| 1 |
9.001-741.0 |
FRONT HOUSING MODULAR COMPACT |
|
| 1 |
9.755-020.0 |
Цилиндрическая головка в сборе |
|
| 1 |
5.332-464.0 |
Pressure spring |
|
| 1 |
9.037-319.0 |
Connection delivery side |
|
| 2 |
5.332-464.0 |
Pressure spring |
|
| 2 |
9.001-110.0 |
Moulded part complete |
|
| 2 |
9.755-016.0 |
Картер рулевого механизма в сборе |
|
| 2 |
9.755-144.0 |
Корпус в сборе для замены K3.65 |
|
| 2 |
2.641-706.0 |
Шланг высокого давления 16MПа/9м |
|
| 2 |
9.039-148.0 |
Metal fork |
|
| 3 |
9.036-703.0 |
Connection delivery side |
|
| 3 |
9.086-200.0 |
Винт M 8x55 Класс 8.8 |
|
| 3 |
6.363-410.0 |
O-Ring seal 5,7x1,78 NBR 90Shore |
|
| 4 |
6.390-463.0 |
H 9 high pressure hose |
|
| 4 |
4.440-673.0 |
High pressure hose 12/16MPa,Kaer.,60G |
|
| 4 |
9.081-420.0 |
Кольцо круглого сечения d.17,86x2,62 |
|
| 4 |
9.001-375.0 |
Spare parts set suction connection |
|
| 4 |
6.363-410.0 |
O-Ring seal 5,7x1,78 NBR 90Shore |
|
| 4 |
9.081-421.0 |
Кольцо круглого сечения 18 х 3 |
|
| 5 |
6.363-198.0 |
O-Ring seal 6x2 90 shore PUR |
|
| 5 |
9.001-149.0 |
Spare parts set valve |
|
| 5 |
9.760-161.0 |
Впускное колено Kx.68 EU(PP) |
|
| 5 |
9.755-199.0 |
Всасывающее отверстие комплектный замени |
|
| 5 |
9.755-078.0 |
Впускной патрубок на замену K3.440 |
|
| 5 |
9.039-308.0 |
Крышка K130 |
|
| 6 |
9.039-148.0 |
Metal fork |
|
| 6 |
9.081-420.0 |
Кольцо круглого сечения d.17,86x2,62 |
|
| 7 |
9.036-703.0 |
Connection delivery side |
|
| 7 |
9.039-148.0 |
Metal fork |
|
| 7 |
9.001-741.0 |
FRONT HOUSING MODULAR COMPACT |
|
| 8 |
9.001-187.0 |
Inlet Elbow |
|
| 8 |
9.086-200.0 |
Винт M 8x55 Класс 8.8 |
|
| 8 |
9.001-692.0 |
Housing and pressure controller WCP |
|
| 9 |
6.465-031.0 |
Connection 3/4 |
|
| 9 |
6.362-151.0 |
O-Ring d. 10 x 2 NBR 70 |
|
| 9 |
9.036-801.0 |
Connection suction side black |
|
| 10 |
9.036-801.0 |
Connection suction side black |
|
| 10 |
9.081-422.0 |
Фасонное уплотнение |
|
| 11 |
9.036-444.0 |
Sleeve |
|
| 11 |
6.465-031.0 |
Connection 3/4 |
|
| 11 |
9.001-693.0 |
Spare parts set cylinder head WCP |
|
| 12 |
6.362-151.0 |
O-Ring d. 10 x 2 NBR 70 |
|
| 12 |
4.645-365.0 |
Coupler with label complete |
|
| 12 |
6.362-169.0 |
O-Ring seal 12,0 X 2,0 |
|
| 13 |
6.362-875.0 |
Grooved ring |
|
| 14 |
7.311-569.0 |
Square nut M4 -04-A2E DIN 562 |
|
| 14 |
9.001-107.0 |
Cage complete |
|
| 14 |
9.001-110.0 |
Moulded part complete |
|
| 15 |
6.388-216.0 |
Hose DN 5 |
|
| 15 |
9.047-026.0 |
Пружина |
|
| 15 |
9.001-149.0 |
Spare parts set valve |
|
| 16 |
5.731-652.0 |
Filter with weight |
|
| 16 |
9.001-108.0 |
Injector complete |
|
| 16 |
9.001-106.0 |
Joining piece |
|
| 17 |
9.036-322.0 |
Supporting disk |
|
| 17 |
9.755-183.0 |
Ниппель химия запасная часть - straight |
|
| 17 |
9.001-107.0 |
Cage complete |
|
| 18 |
6.362-875.0 |
Grooved ring |
|
| 18 |
9.047-026.0 |
Пружина |
|
| 19 |
9.001-108.0 |
Injector complete |
|
| 20 |
9.001-105.0 |
Spare parts set cylinder head |
|
| 20 |
9.001-690.0 |
Spare parts set suction side |
|
| 21 |
6.465-031.0 |
Connection 3/4 |
|
| 24 |
9.081-422.0 |
Фасонное уплотнение |
|
| 25 |
9.001-104.0 |
Spare parts set control head |
|
| 26 |
9.039-117.0 |
Cover |
|
| 27 |
9.086-200.0 |
Винт M 8x55 Класс 8.8 |
|
| 32 |
9.001-108.0 |
Injector complete |
|
| 34 |
9.047-026.0 |
Пружина |
|
| 35 |
9.001-107.0 |
Cage complete |
|
| 38 |
9.001-106.0 |
Joining piece |
|
