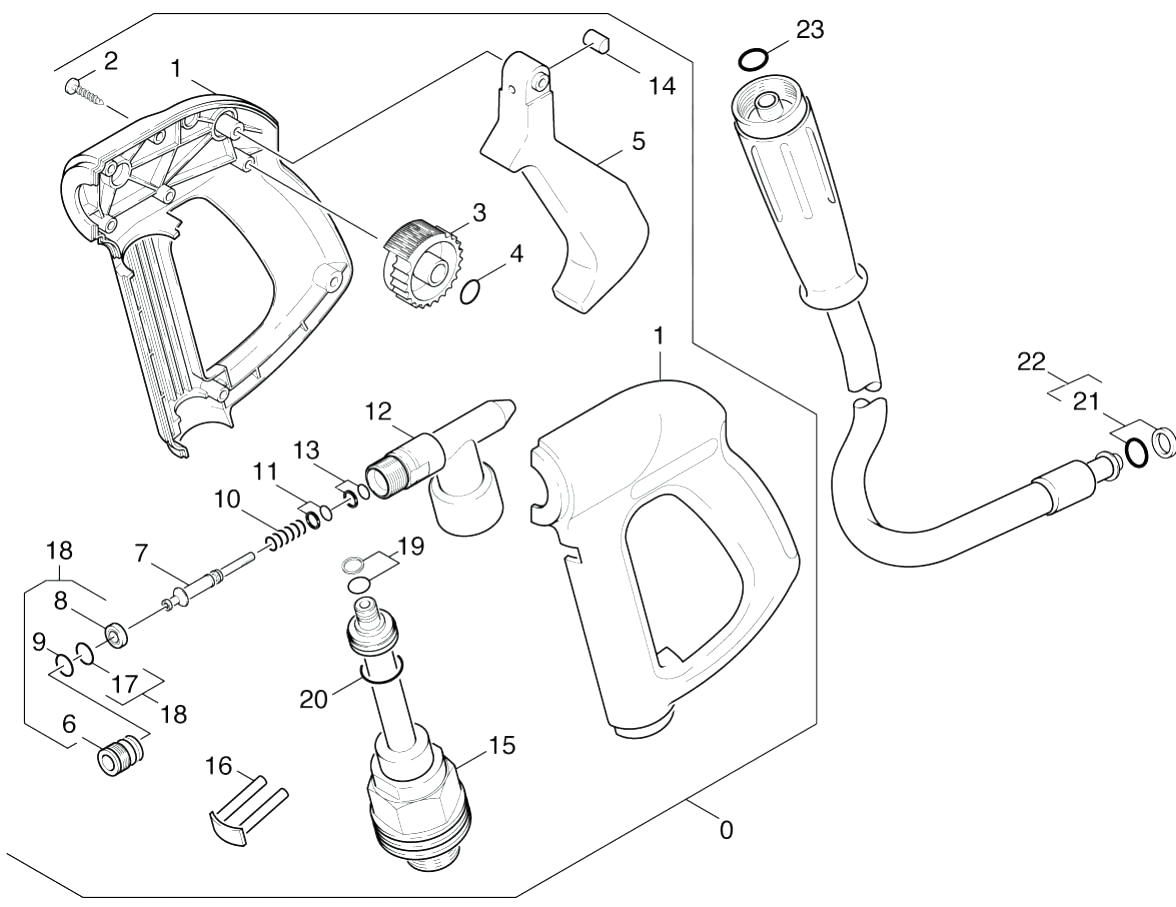

| REF. | АРТИКУЛ | ОПИСАНИЕ | ЗАПРОС НАЛИЧИЯ / ЦЕНЫ |
|---|---|---|---|
| 1 | 5.321-534.0 | Handhold few | |
| 1 | 4.775-463.0 | HAND TRIGGER GUN EASY PRESS | |
| 2 | 7.303-096.0 | Screw 4x22 -ST-10.9-R2R (IN6RD) | |
| 3 | 6.362-381.0 | O-Ring seal 13x2 - NBR 70 | |
| 3 | 5.322-012.0 | Hand wheel | |
| 3 | 5.481-331.0 | Slider | |
| 4 | 4.580-262.0 | Valve complete | |
| 4 | 6.362-642.0 | O-Ring d. 7,65x1,78 -NBR 80 | |
| 5 | 7.306-091.0 | Cylinder head screw M12x90- 8.8-A3E ISO | |
| 5 | 5.481-178.0 | Lever | |
| 5 | 5.321-669.0 | Handhold few | |
| 6 | 6.388-547.0 | Hose clip | |
| 6 | 5.404-079.0 | Hollow screw | |
| 7 | 5.411-117.0 | Screw plug | |
| 7 | 5.553-348.0 | Piston | |
| 7 | 4.037-013.0 | Hook | |
| 8 | 7.362-004.0 | Joint ring A12x15,5 -Cu DIN 7603 | |
| 8 | 5.581-243.0 | Valve seat | |
| 9 | 5.442-833.0 | Piece of tube | |
| 9 | 6.362-182.0 | O-Ring seal 7,65x1,78 - NBR 90 | |
| 10 | 5.550-187.0 | Cylinder head | |
| 10 | 5.332-413.0 | Helical spring | |
| 11 | 5.332-999.0 | Helical spring | |
| 11 | 6.362-964.0 | O-Ring seal complete | |
| 12 | 7.401-907.0 | Sphere 3/8 G200-1.4301 DIN 5401 | |
| 12 | 5.427-214.0 | Manifold | |
| 13 | 4.581-019.0 | Valve seat | |
| 13 | 6.362-992.0 | O-Ring seal complete 2,6X1,9 | |
| 14 | 6.362-858.0 | O-Ring seal 11,0 X 1,5 | |
| 14 | 5.316-400.0 | Bolt | |
| 15 | 6.647-379.0 | Cable with plug | |
| 15 | 4.421-275.0 | Adapter pipelines | |
| 16 | 6.303-174.0 | Screw 6,0X20-ST-A2R | |
| 16 | 4.037-013.0 | Hook | |
| 17 | 5.004-641.0 | Strap | |
| 17 | 4.591-028.0 | Overflow valve | |
| 17 | 6.362-503.0 | O-Ring seal 8,0 X 1,0 | |
| 18 | 5.605-226.0 | Housing | |
| 18 | 5.605-230.0 | Housing | |
| 18 | 5.311-177.0 | Hexagon nut | |
| 19 | 6.310-053.0 | Putting nut | |
| 19 | 7.311-004.0 | Hexagon nut M8 -8-A3E ISO 4032 | |
| 20 | 5.029-027.0 | Tube | |
| 20 | 6.362-575.0 | O-Ring seal 12,42 KOMPL | |
| 20 | 6.362-486.0 | O-Ring seal 4,7 X 1,9 -NBR 70 | |
| 21 | 5.110-773.0 | Sleeve | |
| 21 | 6.362-365.0 | O-Ring seal complete 1ST.-R.- 7,65X 1,7 | |
| 21 | 4.363-691.0 | O-Ring seal kpl. -nur fuer Ersatz- | |
| 22 | 6.343-137.0 | Quick-fastener | |
| 22 | 6.362-445.0 | O-Ring seal 16,0 X 2,4-NBR 80 | |
| 22 | 6.390-171.0 | Hose assembly DN8 max. 31,5MPa 20m | |
| 23 | 6.435-308.0 | Wheel | |
| 23 | 7.306-320.0 | Oval head screw M 5x40-A2-70 ISO 7045 | |
| 25 | 5.057-054.0 | Support | |
| 26 | 6.388-194.0 | Hose DN 7 | |
| 27 | 5.337-021.0 | Plate spring | |
| 28 | 5.321-430.0 | Handhold | |
| 31 | 6.362-993.0 | O-Ring seal complete | |
| 33 | 4.251-031.0 | Bearing support complete | |
| 34 | 4.037-013.0 | Hook | |
| 35 | 5.801-122.0 | Cover plate | |
| 36 | 5.115-758.0 | Washer | |
| 37 | 4.321-102.0 | Crank complete | |
| 38 | 7.303-038.0 | Screw M5x12 -St-P2R (In6Rd) | |
| 39 | 5.031-462.0 | Guide | |
| 40 | 7.312-017.0 | Washer 8-A2 ISO 7089 | |
| 41 | 7.311-620.0 | Cap nut M8 -A2 DIN 986 | |
| 42 | 5.105-264.0 | Axle | |
| 43 | 5.515-112.0 | Deflection pulley | |
| 44 | 5.031-463.0 | Slider | |
| 45 | 6.343-127.0 | Quick-fastener | |
| 46 | 7.343-007.0 | Locking ring 20x1,2-FST-RF DIN 471 | |
| 47 | 4.515-037.0 | Deflection pulley complete | |
| 48 | 5.044-071.0 | Holder |
