Karcher (Керхер) Pучной пистолет-распылитель (0.148-118.0)

Karcher (Керхер) Pучной пистолет-распылитель (0.148-118.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

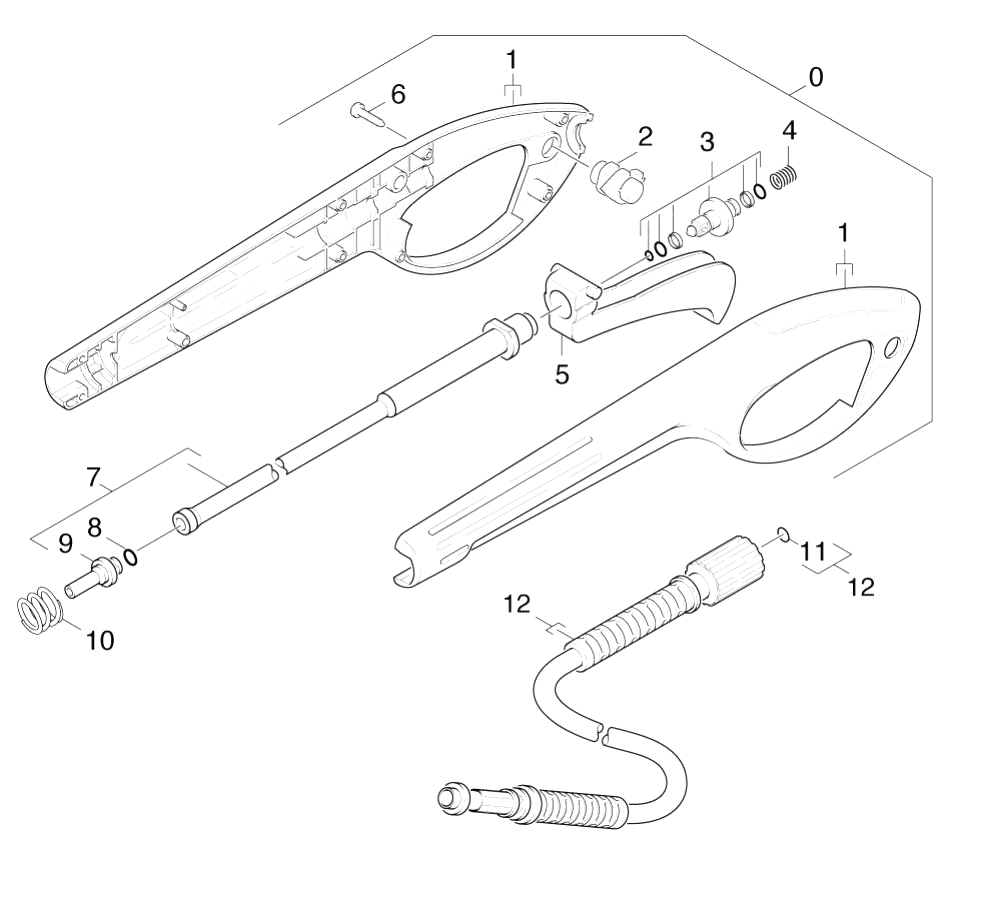

REF. АРТИКУЛ ОПИСАНИЕ ЗАПРОС НАЛИЧИЯ / ЦЕНЫ
0 9.001-125.0 Pistol only for replacement -KAERCHER 9
0 2.642-172.0 G 160 Q pistol Quick Connect
1 9.036-408.0 365 TRIGGER GUN HANDLES (CASING)
1 5.731-652.0 Filter with weight
1 9.037-673.0 Bracket pump (bridge)
1 5.332-464.0 Pressure spring
2 6.964-044.0 Moulded part
2 6.388-216.0 Hose DN 5
2 2.641-721.0 H 9 Q high pressure hose Quick Connect
3 9.011-402.0 Bush completely
3 9.001-741.0 FRONT HOUSING MODULAR COMPACT
3 9.001-745.0 Connection complete
3 6.363-410.0 O-Ring seal 5,7x1,78 NBR 90Shore
4 6.964-002.0 Spring
4 9.001-104.0 Spare parts set control head
4 5.731-598.0 Fine filter
5 5.481-159.0 Lever
5 7.311-569.0 Square nut M4 -04-A2E DIN 562
5 9.086-199.0 Винт
6 6.303-122.0 M4 .2X13 DIN 7981 TORX T15 PAN HD HI/LO
6 9.081-422.0 Фасонное уплотнение
6 9.081-417.0 Кольцо круглого сечения 20 х 2
7 9.011-397.0 Tube pistol 99
7 9.036-322.0 Supporting disk
7 9.001-281.0 By-pass valve
8 6.362-898.0 O-Ring seal 7X2 NBR90
8 6.362-875.0 Grooved ring
8 9.001-746.0 Connection delivery side
9 5.031-068.0 Joining piece
9 9.001-110.0 Moulded part complete
9 6.362-151.0 O-Ring d. 10 x 2 NBR 70
10 5.332-349.0 Pressure spring
10 9.001-105.0 Spare parts set cylinder head
10 7.306-151.0 Cylinder head screw M8x65 -8.8-A2E ISO4
11 9.036-444.0 Sleeve
11 9.001-277.0 Spare parts set chemistry
12 9.082-051.0 Шланг высокого давления нейтр. 9,0/130,
12 9.082-057.0 Шланг высокого давления 7,5/130
12 9.039-117.0 Cover
12 2.889-075.0 Spare part set pressure cap
13 6.363-115.0 O-Ring seal complete 1ST.-R.
13 7.306-042.0 Cylinder head screw M8x25 -8.8-A2E ISO4
13 9.001-800.0 Spare part set control head
14 9.047-026.0 Пружина
14 9.081-424.0 Фасонное уплотнение
15 9.001-149.0 Spare parts set valve
15 9.001-274.0 Spare part set control head
16 9.001-106.0 Joining piece
16 9.001-110.0 Moulded part complete
17 9.001-107.0 Cage complete
17 6.362-875.0 Grooved ring
18 9.001-108.0 Injector complete
18 9.037-059.0 Support ring
19 6.465-031.0 Connection 3/4
19 9.001-275.0 Valve set
20 9.001-187.0 Inlet Elbow
20 9.001-276.0 Joining piece
21 6.465-031.0 Connection 3/4
22 9.001-819.0 Cage complete
23 4.769-035.0 Nozzle insert
24 9.037-142.0 Distance holder
