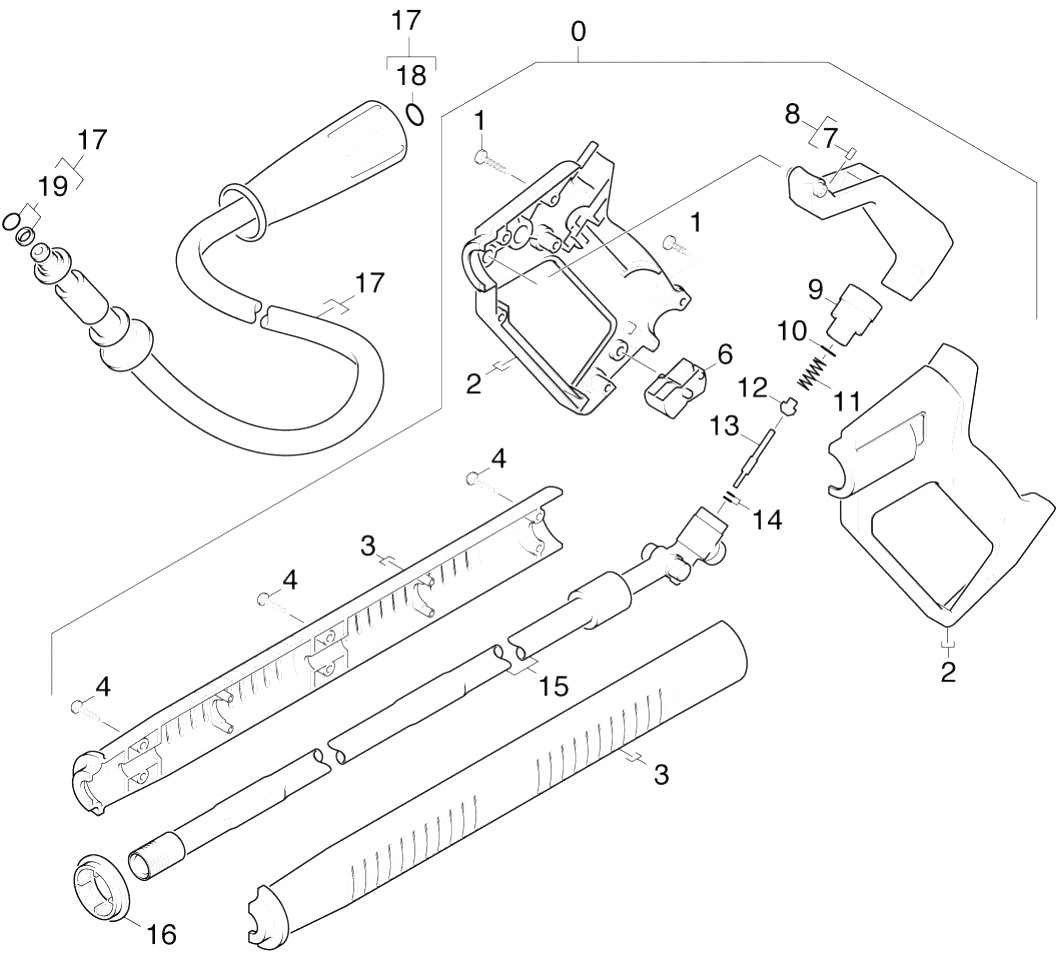

Karcher (Керхер) Pучной пистолет-распылитель (0.148-094.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

REF.	АРТИКУЛ	ОПИСАНИЕ
0	4.623-374.0	Motor complete
1	7.303-096.0	Screw 4x22 -ST-10.9-R2R (IN6RD)
1	5.030-533.0	Moulded part
1	7.367-156.0	Radial shaft seal ring A30x40x7-NBR DIN
2	5.321-332.0	Handhold few
2	5.332-209.0	Helical spring
2	7.401-032.0	Ball bearing 7305-B-WAELZLAGST DIN 628
3	4.481-055.0	Lever
3	5.582-080.0	Valve disc
3	4.120-173.0	Wobble plate complete
4	5.481-082.0	Lever black
4	6.362-768.0	O-Ring seal 88.0X 2.2
5	5.411-067.0	Screw plug
5	5.030-500.0	Moulded part
5	7.312-260.0	Washer 6 -100HV-A3E ISO 7094
6	5.332-157.0	Helical spring
6	5.332-206.0	Helical spring
6	7.306-092.0	Screw M6x20-ST- 8.8-R3R (IN6RD)
7	5.582-058.0	Valve disc
7	5.553-267.0	Piston
7	7.318-070.0	Parallel key 5x5x20-C45R DIN 6885-1
8	6.362-584.0	O-Ring seal 12,42X 1,78
8	6.365-322.0	Grooved ring 16X24X7
9	7.307-417.0	Threaded pin M8x16 -45H-A2E ISO 4026
9	5.115-493.0	Washer
10	5.107-259.0	Bar
10	6.365-351.0	Compact seal 16 x 24 x 4
11	6.362-571.0	O-Ring seal complete /1ST.-R
11	5.112-402.0	Bush
12	4.427-179.0	Manifold
12	7.306-090.0	Screw M6x16 -8.8-R3R (In6Rd)
13	5.031-259.0	Moulded part
13	5.060-395.0	Housing
14	6.303-025.0	Oval head screw 4,2x16-St-vz
15	5.321-524.0	Handhold few neutrally
15	6.362-398.0	O-Ring seal 27,5 X 1,5-NBR 70
16	5.115-492.0	Washer
17	6.391-420.0	High pressure hose neutrally DN 6
17	6.365-354.0	Grooved ring 16X24X5,3
19	6.363-115.0	O-Ring seal complete 1ST.-R.
