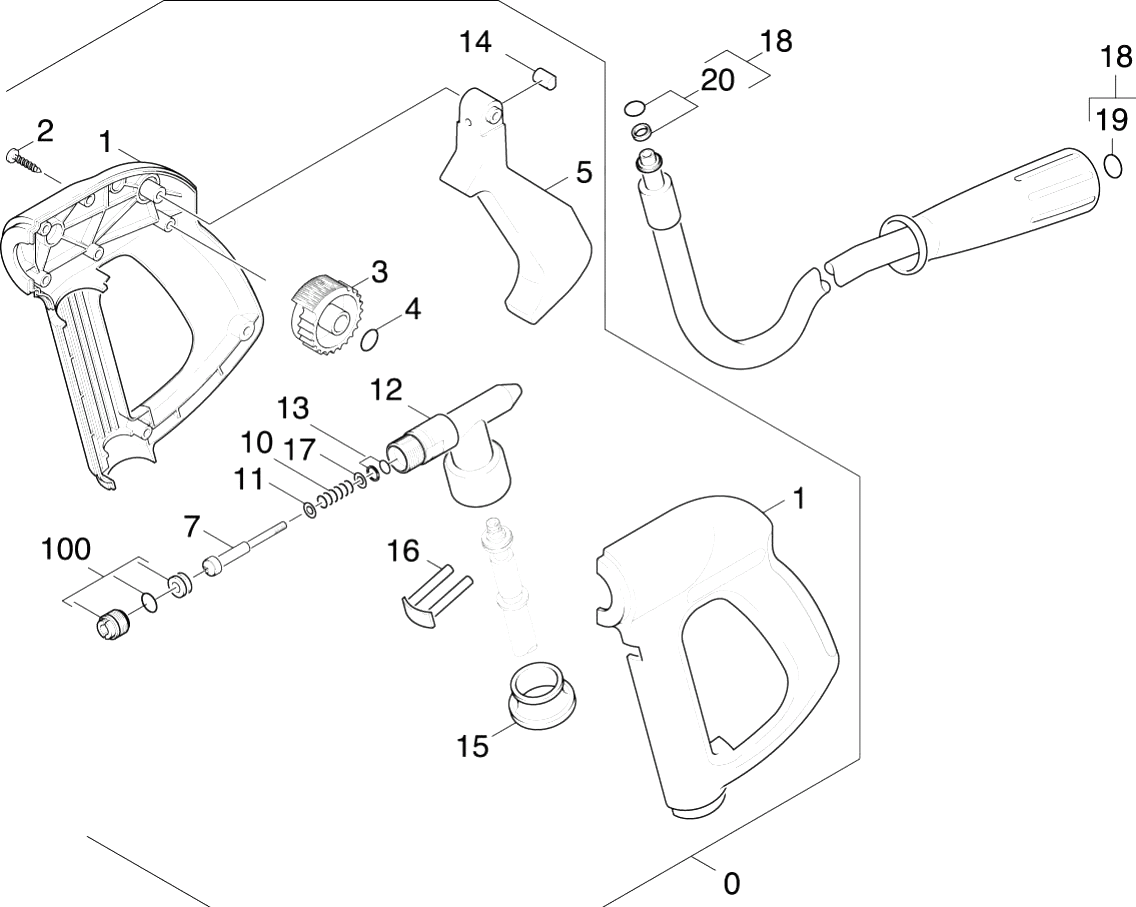

| REF. | АРТИКУЛ | ОПИСАНИЕ | ЗАПРОС НАЛИЧИЯ / ЦЕНЫ |
|---|---|---|---|
| 1 | 5.321-494.0 | Handhold few | |
| 1 | 4.769-034.0 | Nozzle insert only for replacement | |
| 2 | 6.362-384.0 | O-Ring seal 9x1,5 - NBR 70 | |
| 2 | 4.050-619.0 | Frame | |
| 3 | 5.322-011.0 | Hand wheel | |
| 3 | 5.584-091.0 | Valve pin check valve | |
| 4 | 6.362-851.0 | O-Ring seal 4 x 2 NBR 90 | |
| 4 | 6.130-001.0 | Putting nut | |
| 5 | 5.481-178.0 | Lever | |
| 5 | 5.110-714.0 | Sleeve | |
| 5 | 5.059-900.0 | Side plate | |
| 6 | 5.058-464.0 | Front panel HD 9/16 ST | |
| 7 | 7.401-908.0 | Sphere 7 G300 -1.4301 DIN 5401 | |
| 7 | 6.388-194.0 | Hose DN 7 | |
| 9 | 6.362-451.0 | O-Ring seal 8,0 x 1,0 | |
| 9 | 4.580-102.0 | Valve | |
| 10 | 5.332-384.0 | Helical spring | |
| 11 | 6.388-216.0 | Hose DN 5 | |
| 11 | 5.332-028.0 | Helical spring | |
| 12 | 5.427-210.0 | Manifold | |
| 13 | 6.365-432.0 | Grooved ring 14x22x5.3 | |
| 13 | 5.132-010.0 | Plug | |
| 14 | 5.316-400.0 | Bolt | |
| 15 | 5.110-596.0 | Sleeve | |
| 15 | 5.003-062.0 | Plate | |
| 15 | 6.472-112.0 | O-Ring seal 10,0 x 2,4 NBR 70 | |
| 17 | 2.884-916.0 | Valve (3 St?ck) | |
| 17 | 6.414-136.0 | Filter | |
| 18 | 4.822-241.0 | Cable complete | |
| 19 | 6.362-472.0 | O-Ring seal 6,0 X 1,0-NBR 70 | |
| 20 | 5.009-547.0 | Plate bracket float tank | |
| 21 | 5.063-897.0 | Suction cover | |
| 22 | 4.132-007.0 | Drain plug only for replacement | |
| 22 | 7.303-037.0 | Screw M5x10 -St-P2R (In6Rd) | |
| 23 | 6.363-273.0 | O-Ring seal 11,0 x 2,0 | |
| 26 | 5.311-071.0 | Nut |
