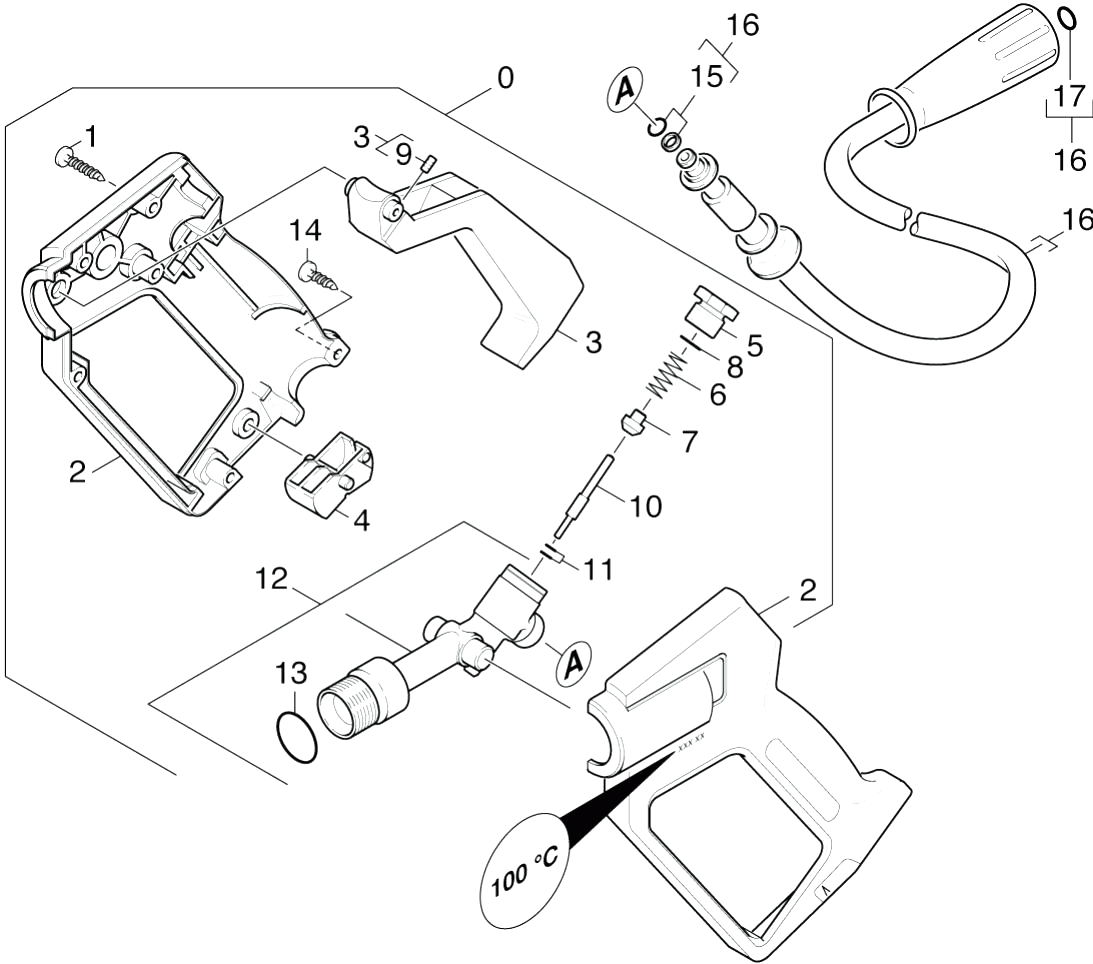

| REF. | АРТИКУЛ | ОПИСАНИЕ | ЗАПРОС НАЛИЧИЯ / ЦЕНЫ |
|---|---|---|---|
| 0 | 4.775-080.0 | Hand trigger gun replacement | |
| 1 | 7.303-096.0 | Screw 4x22 -ST-10.9-R2R (IN6RD) | |
| 2 | 5.321-206.0 | Handhold few | |
| 3 | 5.052-016.0 | Stand left | |
| 3 | 4.481-050.0 | Lever | |
| 4 | 7.306-041.0 | Cylinder head screw M8x20 -8.8-A2E ISO | |
| 4 | 5.481-052.0 | Lever | |
| 5 | 7.311-218.0 | Hexagon nut M 6-LH-CU2 ISO 4035 | |
| 5 | 5.411-067.0 | Screw plug | |
| 5 | 7.312-004.0 | Washer 8 -200HV-A3E ISO 7090 | |
| 6 | 7.311-431.0 | Hexagon nut M 5-1.4305 ISO 10511 | |
| 6 | 5.042-394.0 | Holder | |
| 6 | 5.332-157.0 | Helical spring | |
| 7 | 6.362-610.0 | O-Ring seal complete 2ST.-R. | |
| 7 | 5.052-017.0 | Stand right | |
| 7 | 5.582-058.0 | Valve disc | |
| 8 | 5.553-217.0 | Piston | |
| 8 | 5.066-847.0 | Cover | |
| 8 | 6.362-480.0 | O-Ring seal 12,42x 1,78 | |
| 9 | 5.332-160.0 | Helical spring | |
| 9 | 7.307-417.0 | Threaded pin M8x16 -45H-A2E ISO 4026 | |
| 10 | 6.362-480.0 | O-Ring seal 12,42x 1,78 | |
| 10 | 5.107-259.0 | Bar | |
| 11 | 5.581-078.0 | Valve seat | |
| 11 | 6.362-571.0 | O-Ring seal complete /1ST.-R | |
| 12 | 5.584-051.0 | Valve pin | |
| 13 | 4.550-126.0 | Cylinder head complete | |
| 13 | 6.362-496.0 | O-Ring seal 17,12X 2,62-NBR 70 | |
| 14 | 6.303-025.0 | Oval head screw 4,2x16-St-vz | |
| 15 | 6.363-115.0 | O-Ring seal complete 1ST.-R. | |
| 16 | 6.389-853.0 | Hose assembly standard DN6 25MPa 10m |
