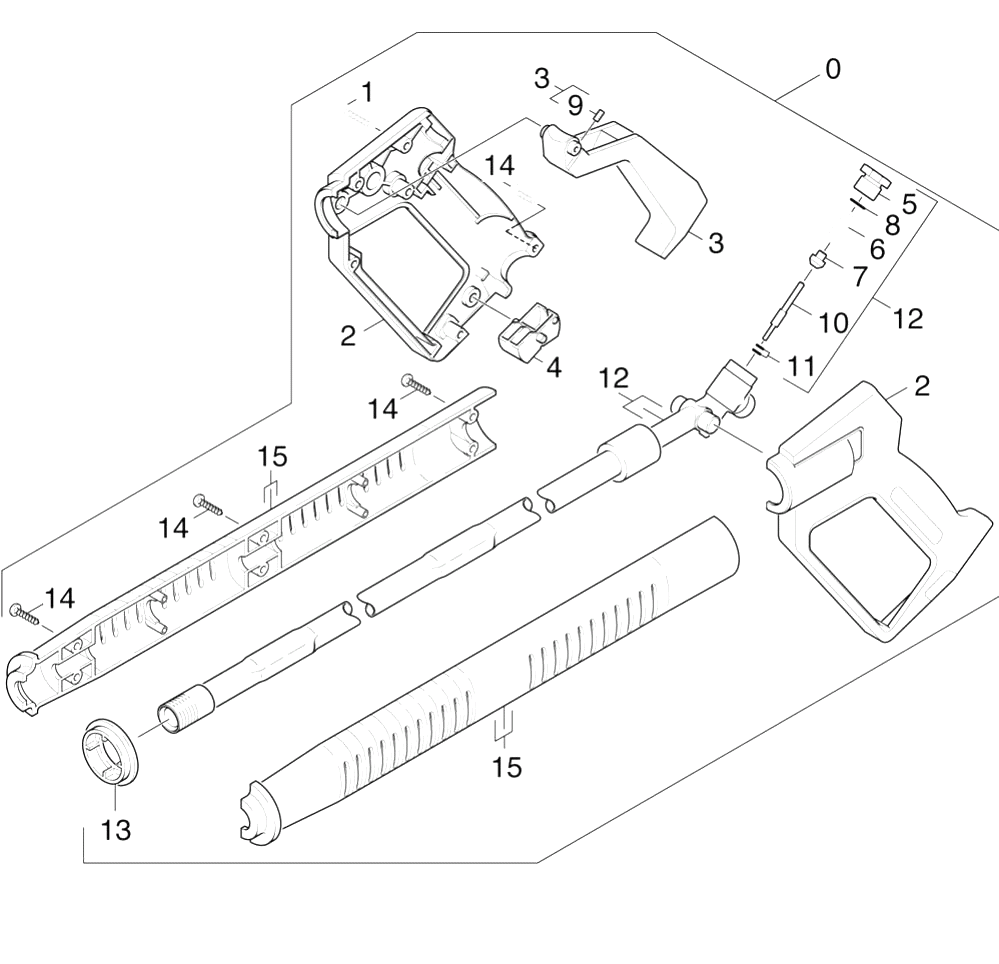

Karcher (Керхер) Pучной пистолет-распылитель (0.148-002.0)
Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85
| REF. |
АРТИКУЛ |
ОПИСАНИЕ |
ЗАПРОС НАЛИЧИЯ / ЦЕНЫ |
| 0 |
3.593-096.0 |
Float tank |
|
| 0 |
6.472-925.0 |
Pump oil burner only for replacement |
|
| 1 |
7.303-096.0 |
Screw 4x22 -ST-10.9-R2R (IN6RD) |
|
| 1 |
6.647-527.0 |
Holder |
|
| 1 |
5.587-134.0 |
Valve housing |
|
| 1 |
6.472-107.0 |
Screw ventilation |
|
| 2 |
5.321-341.0 |
Handhold few |
|
| 2 |
4.821-071.0 |
IGNITION LEAD (HDS 557CI) |
|
| 2 |
5.364-095.0 |
Flat gasket |
|
| 2 |
6.472-106.0 |
O-Ring seal 5,0 X 1,8 |
|
| 3 |
4.481-055.0 |
Lever |
|
| 3 |
5.423-140.0 |
Conduit |
|
| 3 |
5.584-026.0 |
Valve pin |
|
| 3 |
6.472-111.0 |
O-Ring seal 32,0 X 1,6 |
|
| 4 |
5.481-082.0 |
Lever black |
|
| 4 |
6.389-262.0 |
Union nut A 4-LL |
|
| 4 |
5.394-066.0 |
Protection part |
|
| 4 |
6.472-112.0 |
O-Ring seal 10,0 x 2,4 NBR 70 |
|
| 5 |
5.411-067.0 |
Screw plug |
|
| 5 |
6.389-263.0 |
Cutting ring d.4 |
|
| 5 |
7.316-004.0 |
Bolt A 3x25 -CuZn ISO 2340 |
|
| 5 |
6.472-113.0 |
Filter cartridge |
|
| 6 |
5.332-157.0 |
Helical spring |
|
| 6 |
7.311-101.0 |
Hexagon nut M10x1 -04-A2E ISO 8675 |
|
| 6 |
5.481-029.0 |
Lever |
|
| 6 |
6.472-123.0 |
Filter housing complete |
|
| 7 |
5.582-117.0 |
Valve disc |
|
| 7 |
7.312-302.0 |
Spring washer B10-FST-A2E DIN 137 |
|
| 7 |
7.306-194.0 |
Screw M6x20 -A2-70 (In6Rd) |
|
| 7 |
6.472-122.0 |
Protecting cap |
|
| 8 |
6.362-584.0 |
O-Ring seal 12,42X 1,78 |
|
| 8 |
5.115-158.0 |
Washer |
|
| 8 |
6.472-109.0 |
Housing spring |
|
| 9 |
7.307-417.0 |
Threaded pin M8x16 -45H-A2E ISO 4026 |
|
| 9 |
7.312-279.0 |
Washer 6-CuZn ISO 7093-1 |
|
| 10 |
5.107-259.0 |
Bar |
|
| 10 |
7.306-217.0 |
Screw M5x14 -8.8-R2R (In6Rd) |
|
| 10 |
7.311-422.0 |
Hexagon nut M 6-1.4305 ISO 10511 |
|
| 11 |
6.362-571.0 |
O-Ring seal complete /1ST.-R |
|
| 11 |
2.638-974.0 |
Conversion kit ignition electrode |
|
| 11 |
5.585-014.0 |
Float |
|
| 12 |
4.427-184.0 |
Manifold |
|
| 12 |
7.303-038.0 |
Screw M5x12 -St-P2R (In6Rd) |
|
| 12 |
7.303-078.0 |
Sheet metal screw ST4,8X19-ST-A2R (KOMBI |
|
| 13 |
5.031-259.0 |
Moulded part |
|
| 13 |
6.343-165.0 |
Serrated ring |
|
| 13 |
7.312-278.0 |
Washer 5-200HV-A2E ISO7093-1 |
|
| 14 |
6.303-025.0 |
Oval head screw 4,2x16-St-vz |
|
| 14 |
6.278-018.0 |
Glass pane |
|
| 14 |
6.310-028.0 |
Snap nut 4,8 |
|
| 15 |
5.321-524.0 |
Handhold few neutrally |
|
| 15 |
5.667-055.0 |
Nozzle holder |
|
| 15 |
5.070-099.0 |
Tank |
|
| 16 |
6.415-758.0 |
Nozzle 1,1GPH 60G ES |
|
| 16 |
7.316-432.0 |
Cotter 4x50 -St-A2E ISO 1234 |
|
| 17 |
4.654-196.0 |
Cover pressure boiler |
|
| 17 |
5.112-193.0 |
Bush |
|
| 18 |
6.303-258.0 |
Self-tapping screw |
|
| 18 |
6.641-474.0 |
Cable tape 8-210 |
|
| 19 |
6.388-775.0 |
Hose 19x4x0,2m |
|
| 20 |
4.652-112.0 |
Outer covering |
|
| 20 |
6.362-078.0 |
O-Ring seal 13,3x2,4 |
|
| 21 |
5.443-211.0 |
Hose stem |
|
| 22 |
5.310-062.0 |
Nut |
|
| 23 |
4.654-218.0 |
Cover pressure boiler |
|
| 23 |
6.388-719.0 |
FLEX HOSE(CUT TO REQD LENGTH-M'S) |
|
| 24 |
5.654-059.0 |
Cover pressure boiler |
|
| 24 |
6.388-547.0 |
Hose clip |
|
| 25 |
2.638-976.0 |
Conversion kit ignition cable |
|
| 25 |
5.310-061.0 |
"""Nut R 3/4"""" """ |
|
| 26 |
7.306-090.0 |
Screw M6x16 -8.8-R3R (In6Rd) |
|
| 26 |
5.443-224.0 |
Hose stem |
|
| 27 |
5.030-985.0 |
Moulded part |
|
| 28 |
5.394-470.0 |
Protecting cap |
|
| 28 |
5.427-178.0 |
Manifold |
|
| 29 |
6.303-174.0 |
Screw 6,0X20-ST-A2R |
|
| 30 |
6.414-282.0 |
Strainer |
|
