Karcher (Керхер) Pучной пистолет-распылитель (0.147-989.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

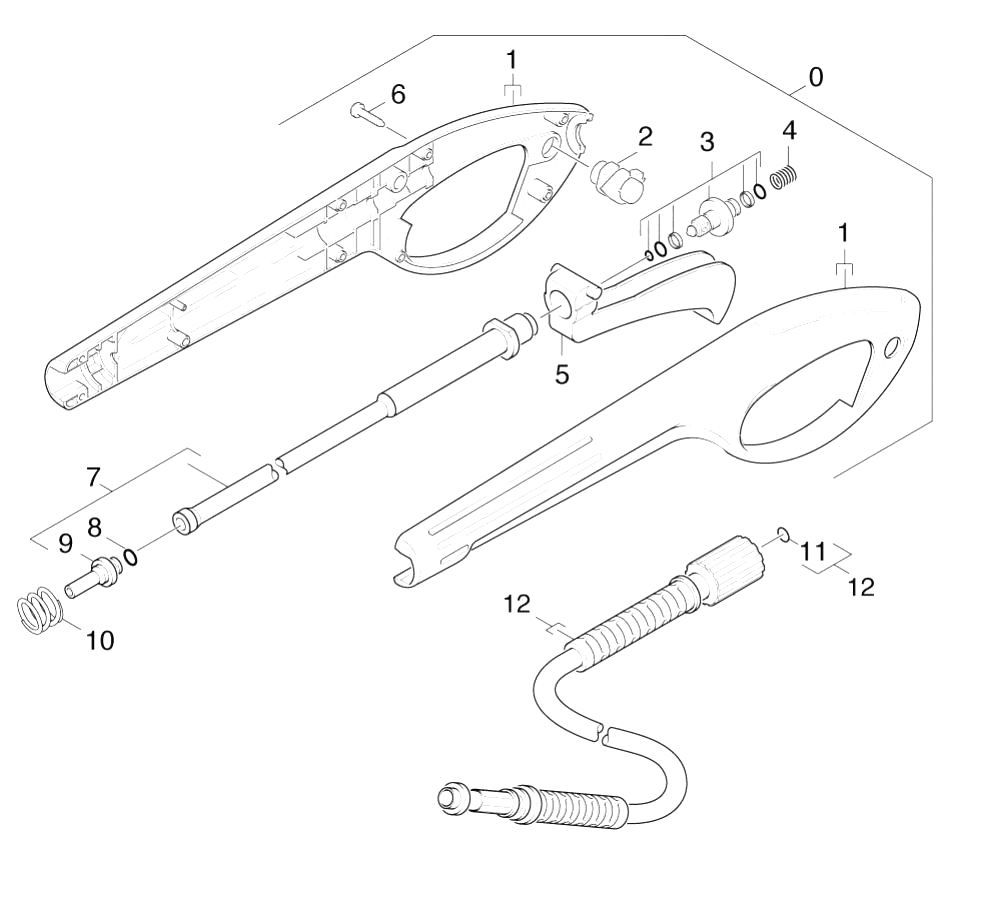

REF.	АРТИКУЛ	ОПИСАНИЕ
0	9.001-125.0	Pistol only for replacement -KAERCHER 9
0	4.775-542.0	Pistol M V2 EPC
1	9.036-408.0	365 TRIGGER GUN HANDLES (CASING)
1	9.036-703.0	Connection delivery side
1	5.037-164.0	Clamp
2	6.964-044.0	Moulded part
2	9.039-148.0	Metal fork
2	5.332-464.0	Pressure spring
3	9.011-402.0	Bush completely
3	7.306-151.0	Cylinder head screw M8x65 -8.8-A2E ISO4
4	6.964-002.0	Spring
4	9.081-420.0	Кольцо круглого сечения d.17,86x2,62
4	6.390-463.0	H 9 high pressure hose
5	5.481-159.0	Lever
5	9.039-308.0	Крышка K130
5	6.363-198.0	O-Ring seal 6x2 90 shore PUR
6	6.303-122.0	M4 .2X13 DIN 7981 TORX T15 PAN HD HI/LO
6	5.731-598.0	Fine filter
7	9.011-397.0	Tube pistol 99
7	9.001-741.0	FRONT HOUSING MODULAR COMPACT
8	6.362-898.0	O-Ring seal 7X2 NBR90
8	9.001-361.0	Spare parts set control head
9	5.031-068.0	Joining piece
9	9.036-801.0	Connection suction side black
10	5.332-349.0	Pressure spring
10	9.081-422.0	Фасонное уплотнение
11	9.001-677.0	Cylinder head complete
12	9.082-057.0	Шланг высокого давления 7,5/130
12	9.082-051.0	Шланг высокого давления нейтр. 9,0/130,
12	6.388-216.0	Hose DN 5
13	6.363-115.0	O-Ring seal complete 1ST.-R.
13	6.362-875.0	Grooved ring
14	9.001-110.0	Moulded part complete
15	9.001-149.0	Spare parts set valve
16	9.001-106.0	Joining piece
17	9.001-107.0	Cage complete
18	9.047-026.0	Пружина
19	9.001-108.0	Injector complete
20	9.001-682.0	Spare parts set suction connection SV5
20	9.001-664.0	Spare parts set suction connection SV5.5
21	6.465-031.0	Connection 3/4
22	9.001-925.0	Pressure piston+detergent niplle
23	9.036-322.0	Supporting disk
24	6.362-151.0	O-Ring d. 10 x 2 NBR 70
