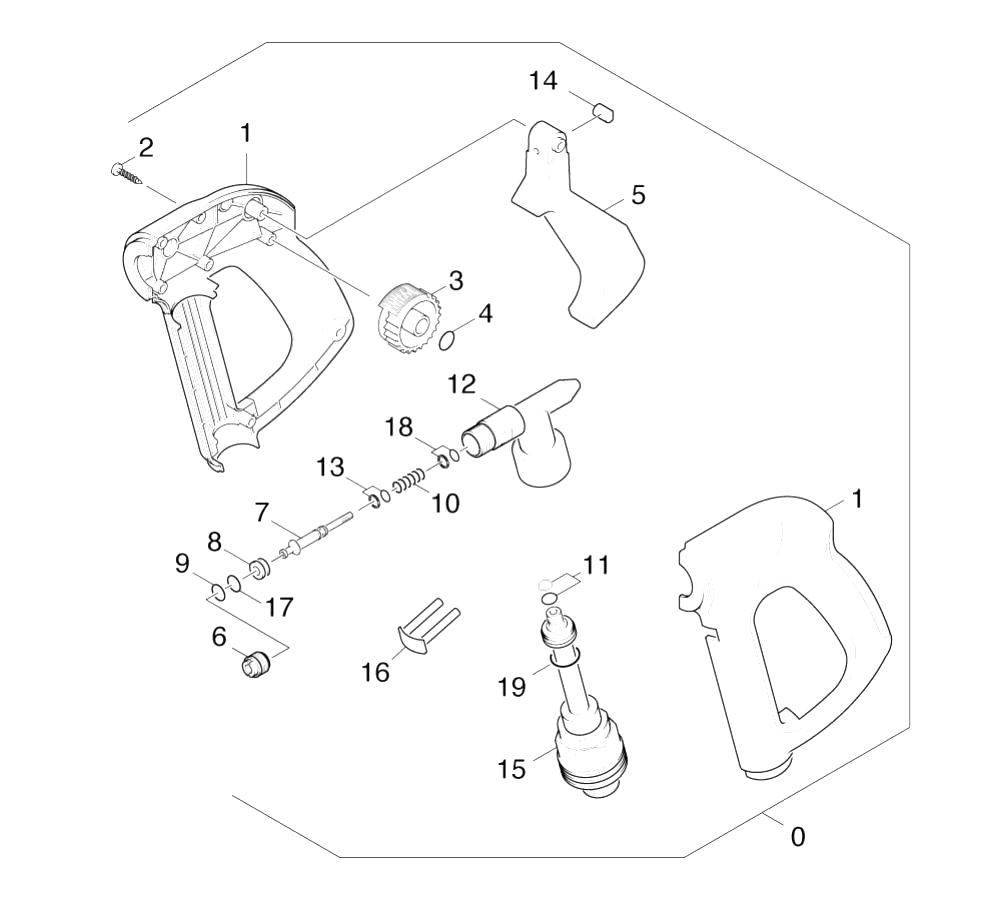

Karcher (Керхер) Pучной пистолет-распылитель (0.147-955.0)
Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85
| REF. |
АРТИКУЛ |
ОПИСАНИЕ |
ЗАПРОС НАЛИЧИЯ / ЦЕНЫ |
| 1 |
5.321-534.0 |
Handhold few |
|
| 1 |
6.303-191.0 |
Screw M8x30-ST-A2R DIN 7500-1 |
|
| 2 |
7.303-096.0 |
Screw 4x22 -ST-10.9-R2R (IN6RD) |
|
| 2 |
7.312-277.0 |
Washer 8-200HV-A2E ISO7093-1 |
|
| 3 |
5.322-012.0 |
Hand wheel |
|
| 3 |
5.110-760.0 |
Sleeve |
|
| 4 |
6.362-642.0 |
O-Ring d. 7,65x1,78 -NBR 80 |
|
| 4 |
7.304-097.0 |
Hexagonal head screw M8x70-8.8-A2E ISO |
|
| 5 |
5.481-178.0 |
Lever |
|
| 5 |
7.312-166.0 |
Toothed lock washer A8,4-FSt-A3E DIN 67 |
|
| 6 |
5.404-079.0 |
Hollow screw |
|
| 6 |
7.312-004.0 |
Washer 8 -200HV-A3E ISO 7090 |
|
| 7 |
5.553-348.0 |
Piston |
|
| 7 |
6.310-081.0 |
Cage nut M 8 |
|
| 8 |
5.581-243.0 |
Valve seat |
|
| 8 |
5.050-111.0 |
Frame |
|
| 9 |
6.362-182.0 |
O-Ring seal 7,65x1,78 - NBR 90 |
|
| 9 |
6.303-031.0 |
Screw M8x16-ST-A2R DIN 7500-1 |
|
| 10 |
5.332-413.0 |
Helical spring |
|
| 10 |
6.343-161.0 |
Lock washer |
|
| 11 |
4.363-691.0 |
O-Ring seal kpl. -nur fuer Ersatz- |
|
| 11 |
7.303-037.0 |
Screw M5x10 -St-P2R (In6Rd) |
|
| 12 |
5.427-214.0 |
Manifold |
|
| 12 |
4.822-098.0 |
Cable green/yellow 2,5mm?x900mm |
|
| 12 |
4.822-102.0 |
Cable green/yellow 1,5mm?x830mm |
|
| 13 |
6.362-964.0 |
O-Ring seal complete |
|
| 14 |
5.316-400.0 |
Bolt |
|
| 15 |
7.312-277.0 |
Washer 8-200HV-A2E ISO7093-1 |
|
| 15 |
4.421-275.0 |
Adapter pipelines |
|
| 16 |
6.401-294.0 |
Wobble plate |
|
| 16 |
4.037-013.0 |
Hook |
|
| 17 |
5.112-586.0 |
Bush |
|
| 17 |
6.362-503.0 |
O-Ring seal 8,0 X 1,0 |
|
| 18 |
6.401-332.0 |
Angular contact ball bearing |
|
| 18 |
6.362-992.0 |
O-Ring seal complete 2,6X1,9 |
|
| 19 |
6.367-047.0 |
Rotary shaft seal AS 25X35X7 |
|
| 19 |
6.362-486.0 |
O-Ring seal 4,7 X 1,9 -NBR 70 |
|
| 24 |
7.312-003.0 |
Washer 6 -200HV-A3E ISO 7090 |
|
| 26 |
7.303-031.0 |
Screw M4x10 -St-P2R (In6Rd) |
|
