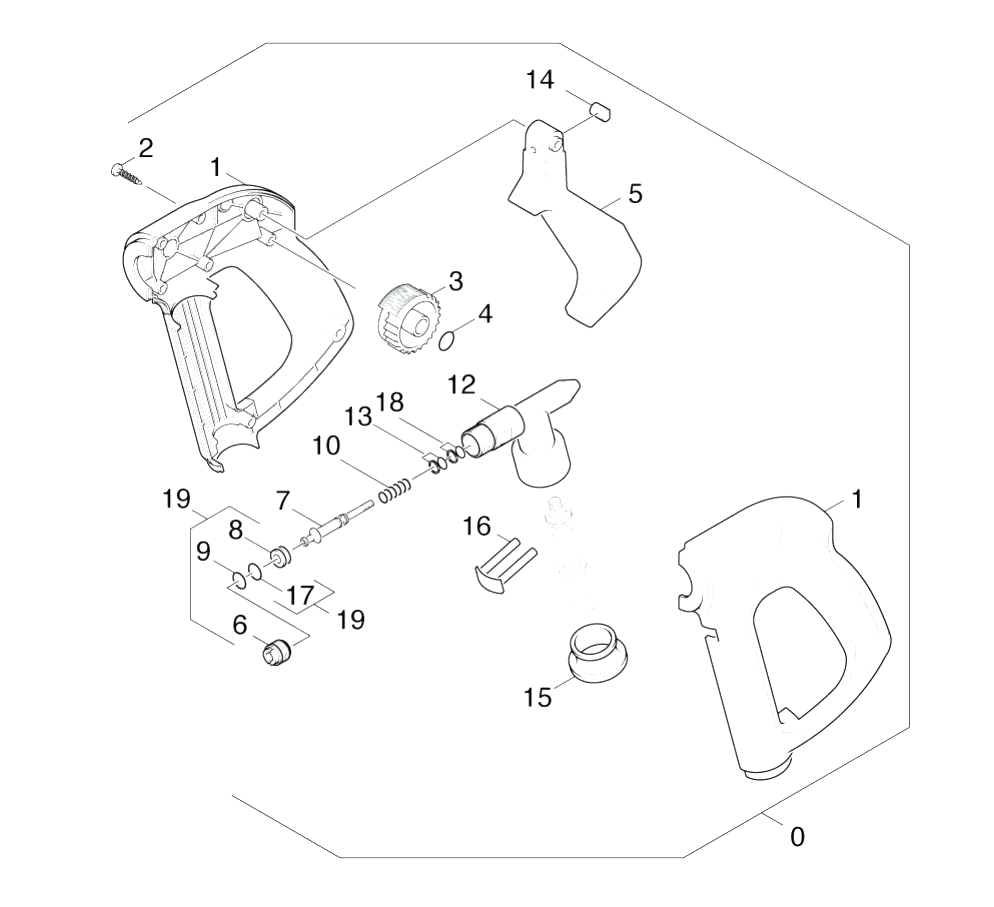

| REF. | АРТИКУЛ | ОПИСАНИЕ | ЗАПРОС НАЛИЧИЯ / ЦЕНЫ |
|---|---|---|---|
| 0 | 4.749-140.0 | Safety system | |
| 1 | 5.321-534.0 | Handhold few | |
| 1 | 5.060-478.0 | Housing | |
| 2 | 7.303-096.0 | Screw 4x22 -ST-10.9-R2R (IN6RD) | |
| 2 | 6.363-037.0 | O-Ring seal complete 1ST.-R. | |
| 3 | 5.322-012.0 | Hand wheel | |
| 3 | 4.553-025.0 | Piston | |
| 4 | 6.362-642.0 | O-Ring d. 7,65x1,78 -NBR 80 | |
| 4 | 5.115-147.0 | Washer | |
| 5 | 5.481-178.0 | Lever | |
| 6 | 5.404-079.0 | Hollow screw | |
| 7 | 5.553-348.0 | Piston | |
| 7 | 5.107-192.0 | Bar | |
| 8 | 5.581-243.0 | Valve seat | |
| 8 | 5.332-070.0 | Helical spring | |
| 9 | 6.362-182.0 | O-Ring seal 7,65x1,78 - NBR 90 | |
| 9 | 5.332-069.0 | Helical spring | |
| 10 | 5.332-413.0 | Helical spring | |
| 10 | 5.112-453.0 | Bush | |
| 11 | 6.362-169.0 | O-Ring seal 12,0 X 2,0 | |
| 12 | 5.427-253.0 | Manifold | |
| 12 | 5.553-265.0 | Piston | |
| 13 | 6.362-964.0 | O-Ring seal complete | |
| 13 | 5.332-293.0 | Helical spring | |
| 14 | 5.316-400.0 | Bolt | |
| 14 | 5.316-278.0 | Bolt spring | |
| 15 | 5.110-596.0 | Sleeve | |
| 15 | 5.060-414.0 | Housing | |
| 16 | 4.037-013.0 | Hook | |
| 16 | 5.037-080.0 | Hook | |
| 17 | 6.362-503.0 | O-Ring seal 8,0 X 1,0 | |
| 17 | 5.042-618.0 | Holder | |
| 18 | 6.362-992.0 | O-Ring seal complete 2,6X1,9 | |
| 18 | 6.631-751.0 | Микропереключатель | |
| 19 | 5.042-728.0 | Holder | |
| 20 | 5.316-284.0 | Bolt | |
| 21 | 7.303-117.0 | Screw 4x20 -A2-70 (In6Rd) |
