Karcher (Керхер) Pучной пистолет-распылитель (0.147-685.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

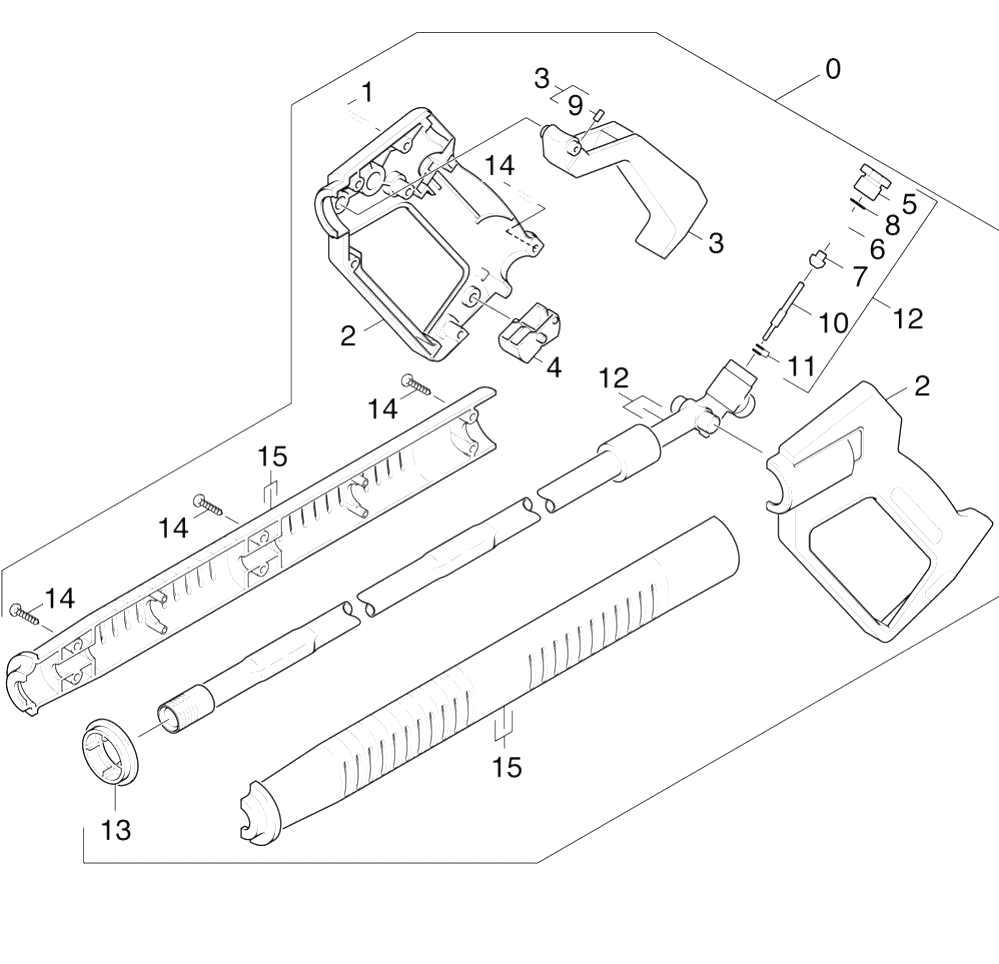

REF.	АРТИКУЛ	ОПИСАНИЕ
0	6.472-925.0	Pump oil burner only for replacement
1	7.303-096.0	Screw 4x22 -ST-10.9-R2R (IN6RD)
1	6.647-527.0	Holder
1	6.472-107.0	Screw ventilation
2	5.321-230.0	Handhold few
2	4.821-071.0	IGNITION LEAD (HDS 557CI)
2	6.472-106.0	O-Ring seal 5,0 X 1,8
3	4.481-055.0	Lever
3	5.423-140.0	Conduit
3	6.472-111.0	O-Ring seal 32,0 X 1,6
4	5.481-082.0	Lever black
4	6.389-262.0	Union nut A 4-LL
4	6.472-112.0	O-Ring seal 10,0 x 2,4 NBR 70
5	5.411-067.0	Screw plug
5	6.389-263.0	Cutting ring d.4
6	5.332-157.0	Helical spring
6	7.311-101.0	Hexagon nut M10x1 -04-A2E ISO 8675
7	5.582-117.0	Valve disc
7	7.312-302.0	Spring washer B10-FST-A2E DIN 137
8	6.362-584.0	O-Ring seal 12,42X 1,78
9	7.307-417.0	Threaded pin M8x16 -45H-A2E ISO 4026
10	5.107-259.0	Bar
10	7.306-217.0	Screw M5x14 -8.8-R2R (In6Rd)
11	6.362-571.0	O-Ring seal complete /1ST.-R
11	2.638-974.0	Conversion kit ignition electrode
12	4.427-184.0	Manifold
12	7.303-038.0	Screw M5x12 -St-P2R (In6Rd)
13	5.031-259.0	Moulded part
13	6.343-165.0	Serrated ring
14	6.310-028.0	Snap nut 4,8
14	6.303-025.0	Oval head screw 4,2x16-St-vz
14	6.278-018.0	Glass pane
15	5.070-099.0	Tank
15	5.321-691.0	Handhold few jet pipe
15	5.667-055.0	Nozzle holder
16	7.316-432.0	Cotter 4x50 -St-A2E ISO 1234
16	6.415-758.0	Nozzle 1,1GPH 60G ES
17	5.112-193.0	Bush
17	4.654-196.0	Cover pressure boiler
18	6.641-474.0	Cable tape 8-210
18	6.303-258.0	Self-tapping screw
19	6.388-775.0	Hose 19x4x0,2m
20	6.362-078.0	O-Ring seal 13,3x2,4
20	4.652-112.0	Outer covering
21	5.443-211.0	Hose stem
22	5.310-062.0	Nut
23	6.388-719.0	FLEX HOSE(CUT TO REQD LENGTH-M'S)
23	4.654-218.0	Cover pressure boiler
24	6.388-547.0	Hose clip
24	5.654-059.0	Cover pressure boiler
25	5.310-061.0	"""Nut R 3/4"""" """
25	2.638-976.0	Conversion kit ignition cable
26	5.443-224.0	Hose stem
26	7.306-090.0	Screw M6x16 -8.8-R3R (In6Rd)
27	5.030-985.0	Moulded part
28	5.427-178.0	Manifold
28	5.394-470.0	Protecting cap
29	6.303-174.0	Screw 6,0X20-ST-A2R
30	6.414-282.0	Strainer
