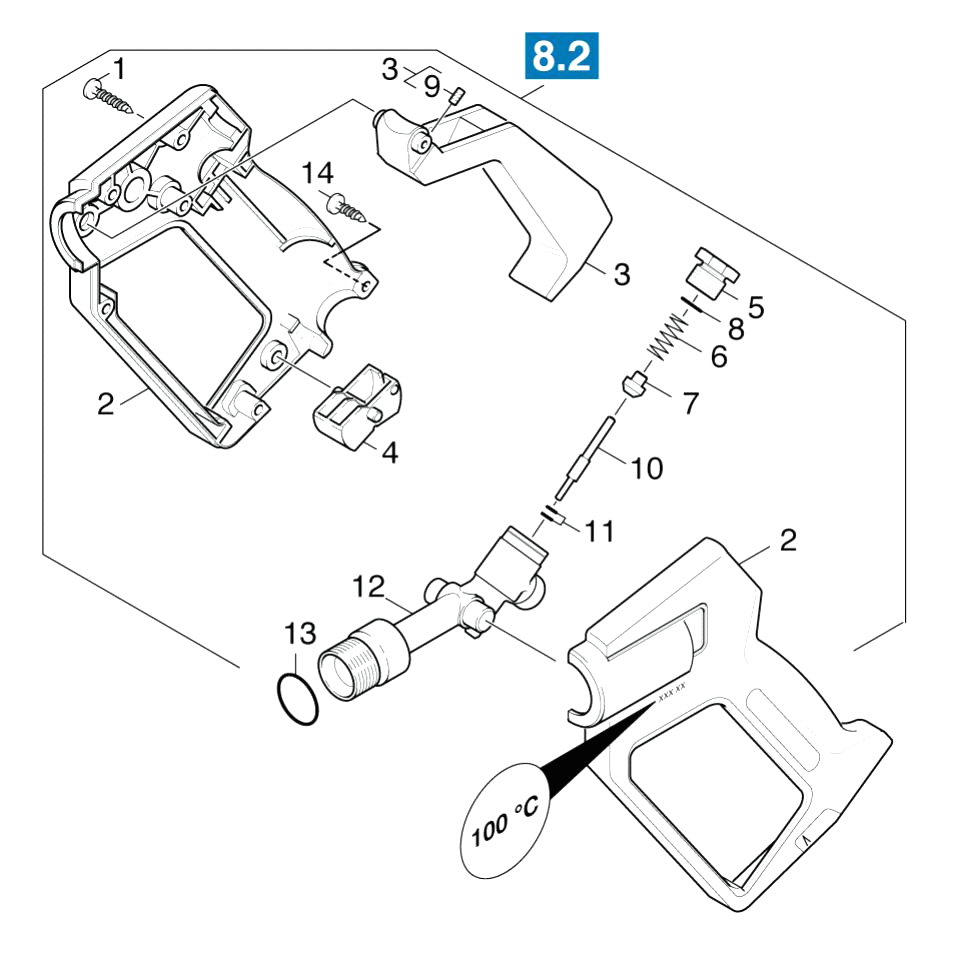

Karcher (Керхер) Pучной пистолет-распылитель (0.147-559.0)
Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85
| REF. |
АРТИКУЛ |
ОПИСАНИЕ |
ЗАПРОС НАЛИЧИЯ / ЦЕНЫ |
| 0 |
4.623-915.0 |
Motor complete only for replacement |
|
| 0 |
4.624-022.0 |
Motor complete only for replacement |
|
| 1 |
7.303-096.0 |
Screw 4x22 -ST-10.9-R2R (IN6RD) |
|
| 1 |
7.303-069.0 |
Screw M 8x25-ST-R3R (IN6RD) |
|
| 1 |
7.303-049.0 |
Screw M6x25-ST-A3R (IN6RD) |
|
| 1 |
5.321-579.0 |
Handle |
|
| 1 |
5.587-214.0 |
Valve housing |
|
| 1 |
4.775-463.0 |
HAND TRIGGER GUN EASY PRESS |
|
| 2 |
5.066-704.0 |
Cover |
|
| 2 |
5.321-206.0 |
Handhold few |
|
| 2 |
5.321-830.0 |
Sliding handle left |
|
| 2 |
6.401-253.0 |
Ball bearing 6305-2Z |
|
| 2 |
7.311-002.0 |
Hexagon nut M5 -8-A2E ISO 4032 |
|
| 2 |
5.364-095.0 |
Flat gasket |
|
| 2 |
7.343-008.0 |
Locking ring 25x1,2-St-vz DIN 471 |
|
| 3 |
7.303-045.0 |
Screw M5X 55-ST-A2R (IN6RD) |
|
| 3 |
4.481-050.0 |
Lever |
|
| 3 |
5.321-831.0 |
Sliding handle right |
|
| 3 |
6.343-010.0 |
Tolerance ring 62x10 |
|
| 3 |
7.307-017.0 |
Threaded pin M5x40 -St-45H-A2E ISO 4026 |
|
| 3 |
5.584-085.0 |
Valve pin |
|
| 3 |
5.321-668.0 |
Handle |
|
| 4 |
7.303-078.0 |
Sheet metal screw ST4,8X19-ST-A2R (KOMBI |
|
| 4 |
5.481-052.0 |
Lever |
|
| 4 |
7.303-209.0 |
Screw 6x50 -10.9-R2R (K-In6Rd) |
|
| 4 |
7.318-032.0 |
Parallel key 6x6x32-C45R DIN 6885 |
|
| 4 |
5.304-070.0 |
Hexagonal head screw |
|
| 4 |
5.481-256.0 |
Lever |
|
| 4 |
4.775-470.0 |
Rotary controller 416L |
|
| 5 |
7.306-203.0 |
Screw M 3X 8-A2-70 (IN6RD) |
|
| 5 |
5.411-067.0 |
Screw plug |
|
| 5 |
5.501-070.0 |
Hinge cover |
|
| 5 |
5.063-189.0 |
Cover |
|
| 5 |
7.401-931.0 |
Sphere 5 Kl3 -1.4401 DIN 5401 |
|
| 5 |
5.585-030.0 |
Float |
|
| 5 |
6.391-351.0 |
Hose assembly only for replacement DN8 4 |
|
| 6 |
7.306-205.0 |
Screw M4x8 -A2-70 (In6Rd) |
|
| 6 |
5.332-157.0 |
Helical spring |
|
| 6 |
5.317-228.0 |
Bolt hinge |
|
| 6 |
4.070-904.0 |
Tank only for replacement |
|
| 6 |
5.582-121.0 |
Valve disc |
|
| 6 |
4.070-658.0 |
Tank complete |
|
| 6 |
4.363-691.0 |
O-Ring seal kpl. -nur fuer Ersatz- |
|
| 7 |
6.631-770.0 |
Switch |
|
| 7 |
6.631-774.0 |
Switch |
|
| 7 |
5.582-058.0 |
Valve disc |
|
| 7 |
5.317-291.0 |
Bolt |
|
| 7 |
6.362-722.0 |
O-Ring seal 28,0 X 3,0 |
|
| 7 |
5.404-082.0 |
Hollow screw |
|
| 7 |
4.747-097.0 |
Level probe -nur f?r Ersatz- |
|
| 8 |
6.310-034.0 |
Speed nut |
|
| 8 |
6.362-480.0 |
O-Ring seal 12,42x 1,78 |
|
| 8 |
4.066-379.0 |
Крышка в сборе HDS 1218 |
|
| 8 |
5.411-100.0 |
Screw plug |
|
| 8 |
4.440-796.0 |
Hose SDS |
|
| 8 |
5.310-062.0 |
Nut |
|
| 9 |
6.651-316.0 |
Lens housing red |
|
| 9 |
7.307-417.0 |
Threaded pin M8x16 -45H-A2E ISO 4026 |
|
| 9 |
7.303-086.0 |
Screw 5x30 -10.9-R2R (K-In6Rd) |
|
| 9 |
6.362-458.0 |
O-Ring seal 11,0x2,0-NBR 70 |
|
| 9 |
5.332-444.0 |
Helical spring |
|
| 9 |
4.037-013.0 |
Hook |
|
| 10 |
6.651-320.0 |
Lens housing green |
|
| 10 |
5.107-259.0 |
Bar |
|
| 10 |
5.033-381.0 |
Profile |
|
| 10 |
5.767-005.0 |
Rubber buffer |
|
| 10 |
5.584-114.0 |
Valve pin |
|
| 10 |
5.443-312.0 |
Hose stem |
|
| 10 |
5.321-669.0 |
Handhold few |
|
| 11 |
6.368-076.0 |
Ornamental hub cap D10/D12 |
|
| 11 |
6.362-571.0 |
O-Ring seal complete /1ST.-R |
|
| 11 |
7.303-106.0 |
Screw 4x12 -10.9-R2R (IN6RD) |
|
| 11 |
7.367-009.0 |
Radial shaft seal ring A35x52x7-NBR DIN |
|
| 11 |
5.311-204.0 |
Hexagon nut M22x1,5 |
|
| 11 |
6.391-612.0 |
Piece of tube only for replacement |
|
| 11 |
7.303-096.0 |
Screw 4x22 -ST-10.9-R2R (IN6RD) |
|
| 12 |
4.651-026.0 |
Pilot lamp only for replacement |
|
| 12 |
5.427-115.0 |
Manifold |
|
| 12 |
6.401-405.0 |
Taper roller bearing |
|
| 12 |
4.553-198.0 |
Piston complete only for replacement |
|
| 12 |
5.112-193.0 |
Bush |
|
| 12 |
5.481-331.0 |
Slider |
|
| 13 |
6.685-381.0 |
Thermostat |
|
| 13 |
6.362-496.0 |
O-Ring seal 17,12X 2,62-NBR 70 |
|
| 13 |
5.033-344.0 |
Крышка DGT HDS 13/20 |
|
| 13 |
5.120-398.0 |
Wobble plate |
|
| 13 |
4.120-242.0 |
Wobble plate -nur fuer Ersatz- |
|
| 13 |
6.362-468.0 |
O-Ring seal complete 1ST.-R. |
|
| 13 |
5.443-553.0 |
Connection piece |
|
| 14 |
6.631-771.0 |
Switch |
|
| 14 |
6.303-025.0 |
Oval head screw 4,2x16-St-vz |
|
| 14 |
5.332-236.0 |
Helical spring |
|
| 14 |
5.115-565.0 |
Washer |
|
| 14 |
6.362-161.0 |
O-Ring seal 19,3 X 2,4 |
|
| 14 |
5.110-596.0 |
Sleeve |
|
| 15 |
6.368-099.0 |
Cap |
|
| 15 |
5.316-318.0 |
Bolt |
|
| 15 |
7.312-159.0 |
Toothed lock washer A8,4-FST-PH DIN 679 |
|
| 15 |
4.730-124.0 |
Filter complete |
|
| 15 |
4.363-695.0 |
Grooved ring only for replacement |
|
| 16 |
5.424-139.0 |
Fixing jet pipe |
|
| 16 |
7.306-041.0 |
Cylinder head screw M8x20 -8.8-A2E ISO |
|
| 16 |
6.414-681.0 |
Filter cartridge |
|
| 17 |
5.314-143.0 |
Pin fixing jet pipe |
|
| 17 |
7.318-030.0 |
Parallel key 6x6x25 -C45R DIN 6885-1 |
|
| 17 |
5.363-613.0 |
Seal |
|
| 18 |
6.303-497.0 |
Screw M8x35-8.8-A2E (IN6RD) |
|
| 18 |
5.061-186.0 |
Bearing cover B |
|
| 18 |
5.583-146.0 |
Valve screw |
|
| 18 |
5.064-107.0 |
Cover |
|
| 19 |
7.312-277.0 |
Washer 8-200HV-A2E ISO7093-1 |
|
| 19 |
5.600-087.0 |
Blower wheel |
|
| 19 |
6.362-481.0 |
O-Ring seal 14,0 x 2,0 NBR 80 |
|
| 19 |
7.373-022.0 |
Hose clip A-16-27x9 -W2-2 DIN3017 |
|
| 20 |
6.362-377.0 |
O-Ring seal 38,0 X 2,0-NBR 70 |
|
| 20 |
2.884-512.0 |
Valve (3 Stueck) |
|
| 20 |
6.388-719.0 |
FLEX HOSE(CUT TO REQD LENGTH-M'S) |
|
| 21 |
5.425-495.0 |
CONNECTION PIECE DGT |
|
| 21 |
6.363-003.0 |
O-Ring seal 13,0 X 2,0-NBR 90 |
|
| 21 |
5.310-061.0 |
"""Nut R 3/4"""" """ |
|
| 22 |
2.885-055.0 |
Circuit board |
|
| 22 |
4.550-888.0 |
Cylinder head complete |
|
| 22 |
5.443-224.0 |
Hose stem |
|
| 23 |
5.044-889.0 |
Holder circuit board |
|
| 23 |
6.363-536.0 |
O-Ring seal 21x1,5 |
|
| 23 |
6.362-078.0 |
O-Ring seal 13,3x2,4 |
|
| 24 |
5.033-155.0 |
Flap |
|
| 24 |
5.427-416.0 |
Manifold water intake |
|
| 24 |
5.365-289.0 |
Rubber bushing transmitter feeder |
|
| 25 |
5.033-113.0 |
Flap |
|
| 25 |
7.306-043.0 |
Cylinder head screw M8x30 -8.8-A2E ISO |
|
| 25 |
4.686-030.0 |
Solenoid valve only for replacement |
|
| 26 |
5.190-254.0 |
Strip cover |
|
| 26 |
6.362-381.0 |
O-Ring seal 13x2 - NBR 70 |
|
| 26 |
4.070-905.0 |
Tank only for replacement |
|
| 27 |
5.190-253.0 |
Strip boiler |
|
| 27 |
6.362-703.0 |
O-Ring seal 6,0x1,5-NBR 70 |
|
| 27 |
6.641-474.0 |
Cable tape 8-210 |
|
| 28 |
5.317-220.0 |
Bolt |
|
| 28 |
5.110-863.0 |
Sleeve |
|
| 28 |
7.303-108.0 |
Screw 5x20 -10.9-R2R (In6Rd) |
|
| 29 |
5.033-112.0 |
Storage compartment |
|
| 29 |
6.362-427.0 |
O-Ring seal 15,0x2,0 |
|
| 29 |
5.427-432.0 |
Manifold |
|
| 30 |
5.412-015.0 |
Closure cover |
|
| 30 |
2.882-691.0 |
Conversion kit holder small Kessel |
|
| 30 |
7.303-086.0 |
Screw 5x30 -10.9-R2R (K-In6Rd) |
|
| 30 |
4.580-581.0 |
Valve complete |
|
| 30 |
6.414-141.0 |
Strainer |
|
| 31 |
6.431-274.0 |
Tackle cover |
|
| 31 |
5.061-319.0 |
Housing electric box |
|
| 31 |
6.362-853.0 |
O-Ring seal 4,47x1,78 |
|
| 32 |
4.064-014.0 |
Cover complete RM 110 |
|
| 32 |
5.263-086.0 |
Tensioning part |
|
| 32 |
5.263-091.0 |
Tensioning part |
|
| 32 |
5.402-705.0 |
Joining piece |
|
| 33 |
5.033-118.0 |
Covering cap box DGT |
|
| 33 |
5.365-285.0 |
Profile gasket |
|
| 33 |
6.363-037.0 |
O-Ring seal complete 1ST.-R. |
|
| 34 |
5.363-300.0 |
Joint ring |
|
| 34 |
6.303-153.0 |
Screw M5x15-ST-R2R (IN6RD) |
|
| 34 |
4.553-197.0 |
Piston complete only for replacement |
|
| 35 |
4.828-010.0 |
Interference suppressor complete |
|
| 35 |
6.661-283.0 |
Interference suppressor triple-pole |
|
| 35 |
5.115-796.0 |
Washer |
|
| 36 |
5.802-261.0 |
Mounting part |
|
| 36 |
5.332-268.0 |
Helical spring |
|
| 37 |
6.641-270.0 |
Plug |
|
| 37 |
5.411-148.0 |
Screw plug |
|
| 38 |
7.303-106.0 |
Screw 4x12 -10.9-R2R (IN6RD) |
|
| 38 |
5.367-030.0 |
Diaphragm |
|
| 39 |
6.632-334.0 |
Power contactor LC1 D32 B7 |
|
| 39 |
4.632-002.0 |
Contactor -nur fuer Ersatz- |
|
| 39 |
5.034-494.0 |
Retaining bracket |
|
| 40 |
2.885-054.0 |
Frame circuit board complete |
|
| 40 |
4.580-594.0 |
Valve complete |
|
| 41 |
5.064-226.0 |
Cover electric box |
|
| 41 |
4.744-225.0 |
Switch complete |
|
| 42 |
6.649-384.0 |
Cable 2x0,35 350mm |
|
| 42 |
4.744-224.0 |
Switch complete |
|
| 43 |
5.411-504.0 |
Screw plug |
|
| 44 |
6.362-176.0 |
O-Ring seal 6,07x1,78 |
|
| 45 |
6.362-079.0 |
O-Ring seal 18,0 X 2,5 |
|
| 46 |
5.581-239.0 |
Valve seat |
|
| 47 |
6.362-386.0 |
O-Ring seal 5,0 x 1,5-NBR 80 |
|
| 100 |
2.885-036.0 |
Spare part set pump |
|
