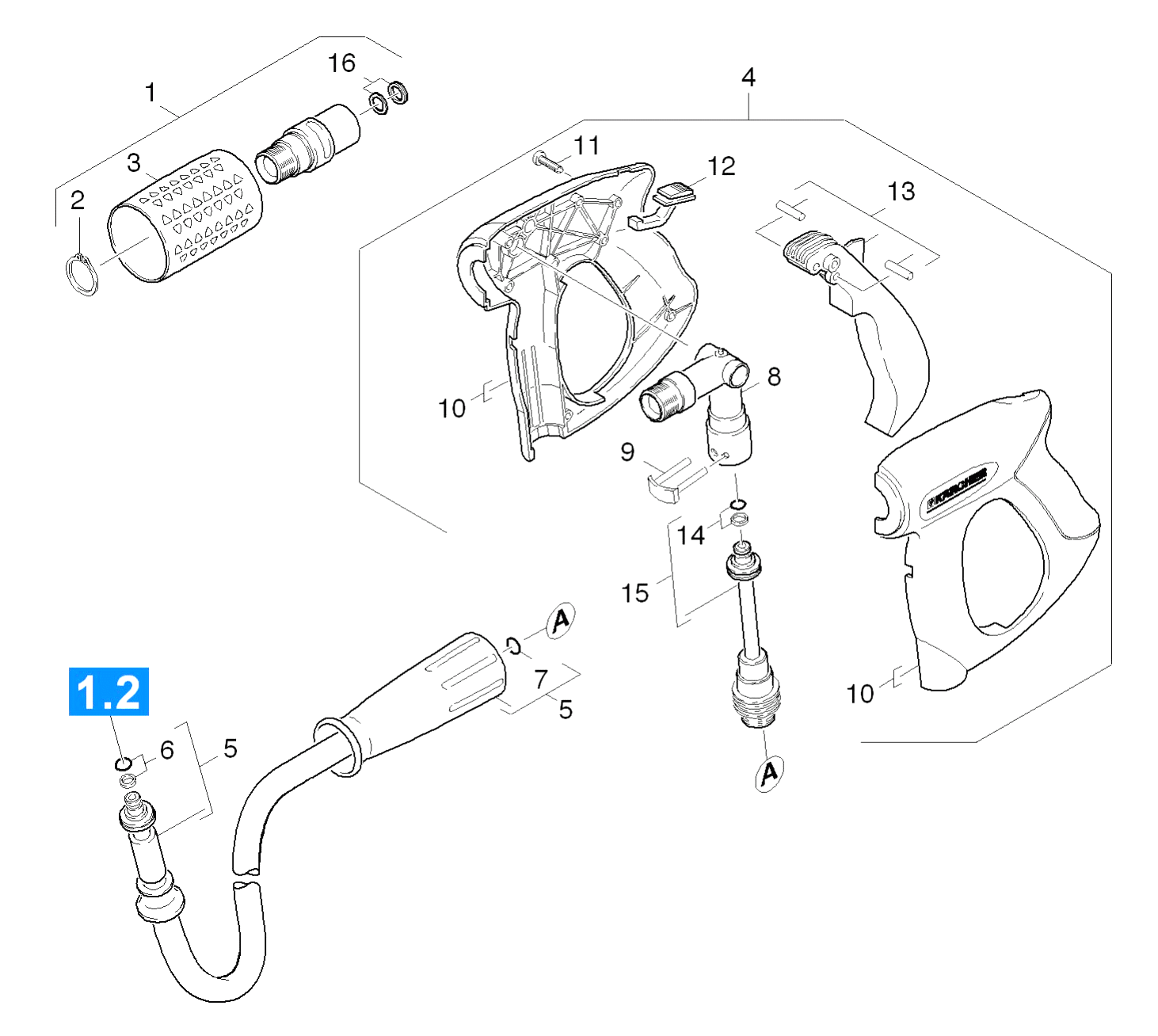

| REF. | АРТИКУЛ | ОПИСАНИЕ | ЗАПРОС НАЛИЧИЯ / ЦЕНЫ |
|---|---|---|---|
| 1 | 4.775-470.0 | Rotary controller 416L | |
| 2 | 7.343-008.0 | Locking ring 25x1,2-St-vz DIN 471 | |
| 3 | 5.321-668.0 | Handle | |
| 4 | 4.775-466.0 | Hand trigger gun | |
| 5 | 6.390-208.0 | Hose assembly DN8 40MPa 20m | |
| 9 | 4.037-013.0 | Hook | |
| 10 | 5.321-669.0 | Handhold few | |
| 11 | 5.515-191.0 | Roller | |
| 11 | 7.303-096.0 | Screw 4x22 -ST-10.9-R2R (IN6RD) | |
| 12 | 7.303-110.0 | Screw 5x35 -10.9-R2R (In6Rd) | |
| 12 | 5.481-331.0 | Slider | |
| 13 | 5.013-091.0 | Funnel | |
| 14 | 5.057-062.0 | Support | |
| 14 | 4.363-691.0 | O-Ring seal kpl. -nur fuer Ersatz- | |
| 15 | 5.029-000.0 | Axle | |
| 15 | 5.033-342.0 | Axle | |
| 15 | 4.421-739.0 | Adapter pipelines AVS-M22x1,5 | |
| 16 | 5.044-646.0 | Holder roller front | |
| 16 | 4.363-695.0 | Grooved ring only for replacement | |
| 17 | 5.251-049.0 | Bearing support right | |
| 18 | 5.251-048.0 | Bearing support left | |
| 19 | 5.032-406.0 | Covering cap | |
| 20 | 5.128-511.0 | Axle | |
| 21 | 4.050-601.0 | Frame complete | |
| 22 | 4.580-608.0 | Proportioning valve chemistry |
