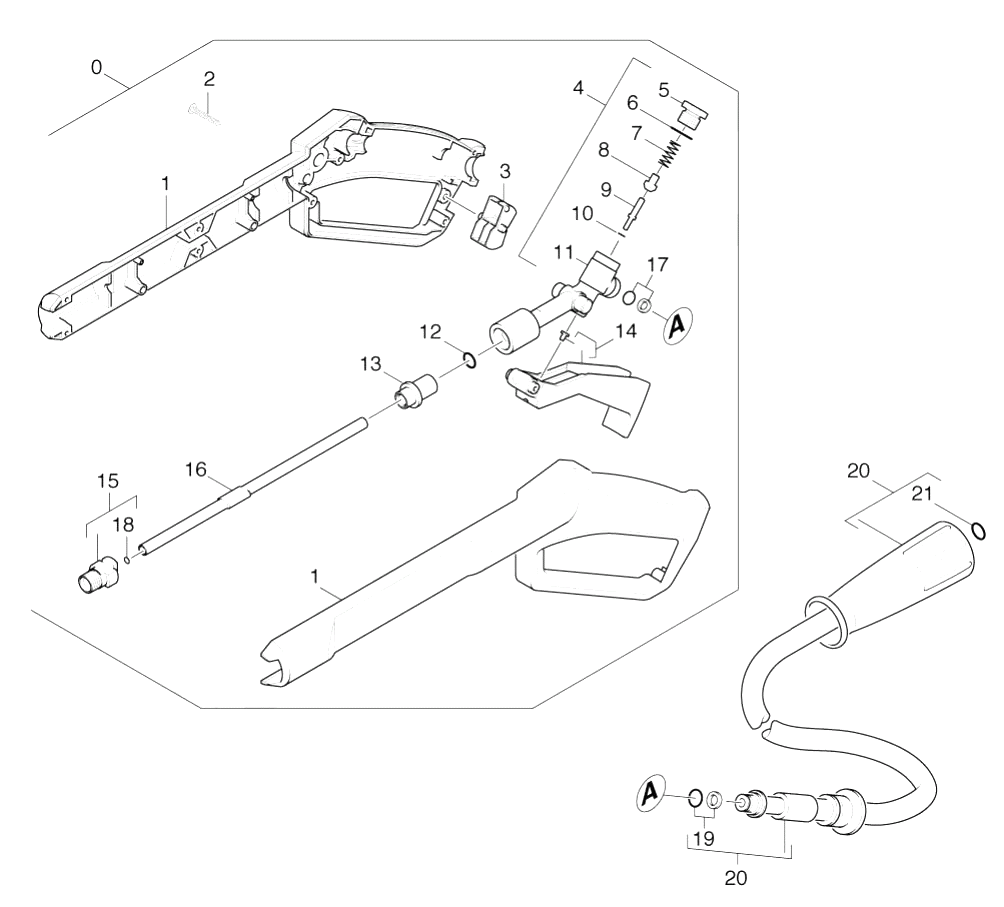

| REF. | АРТИКУЛ | ОПИСАНИЕ | ЗАПРОС НАЛИЧИЯ / ЦЕНЫ |
|---|---|---|---|
| 1 | 5.321-419.0 | Захватная пара | |
| 1 | 5.321-556.0 | Handhold | |
| 2 | 6.303-122.0 | M4 .2X13 DIN 7981 TORX T15 PAN HD HI/LO | |
| 2 | 6.472-112.0 | O-Ring seal 10,0 x 2,4 NBR 70 | |
| 3 | 6.303-075.0 | Screw M5x18-ST-A2R (KOMB-IN6RD) | |
| 3 | 5.481-082.0 | Lever black | |
| 3 | 6.313-014.0 | Spring element | |
| 4 | 5.057-054.0 | Support | |
| 4 | 4.427-150.0 | Узловая деталь | |
| 4 | 6.631-190.0 | Motor protecting switch | |
| 4 | 6.362-768.0 | O-Ring seal 88.0X 2.2 | |
| 5 | 5.028-336.0 | Tube | |
| 5 | 5.411-054.0 | Screw plug | |
| 5 | 5.063-522.0 | Cover | |
| 5 | 5.030-500.0 | Moulded part | |
| 6 | 5.110-453.0 | Sleeve | |
| 6 | 6.362-480.0 | O-Ring seal 12,42x 1,78 | |
| 6 | 6.273-117.0 | Ring cellular rubber | |
| 6 | 5.332-206.0 | Helical spring | |
| 7 | 6.435-196.0 | Wheel D 180 | |
| 7 | 5.332-157.0 | Helical spring | |
| 7 | 6.303-153.0 | Screw M5x15-ST-R2R (IN6RD) | |
| 7 | 5.553-276.0 | Piston | |
| 8 | 6.343-168.0 | Lock washer | |
| 8 | 5.582-058.0 | Valve disc | |
| 8 | 6.647-198.0 | Cable with rubber bushing | |
| 8 | 6.365-322.0 | Grooved ring 16X24X7 | |
| 9 | 6.435-197.0 | Wheel cap zinc yellow | |
| 9 | 5.107-067.0 | Bar | |
| 9 | 7.303-031.0 | Screw M4x10 -St-P2R (In6Rd) | |
| 9 | 5.115-493.0 | Washer | |
| 10 | 7.362-502.0 | O-Ring seal 2,8x1,6-NBR 70 DIN 3770 | |
| 10 | 6.365-351.0 | Compact seal 16 x 24 x 4 | |
| 11 | 6.343-170.0 | Retaining clip | |
| 11 | 5.112-402.0 | Bush | |
| 12 | 6.362-802.0 | O-Ring seal 7,8 X 3,6 | |
| 12 | 7.306-090.0 | Screw M6x16 -8.8-R3R (In6Rd) | |
| 13 | 5.110-477.0 | Sleeve | |
| 13 | 4.066-202.0 | Top part cover only for replacement | |
| 13 | 5.060-451.0 | Housing | |
| 14 | 4.481-052.0 | Lever | |
| 14 | 6.273-118.0 | Profile gasket cellular rubber | |
| 15 | 6.362-398.0 | O-Ring seal 27,5 X 1,5-NBR 70 | |
| 16 | 7.312-002.0 | Washer 5-200HV-A3E ISO 7090 | |
| 16 | 5.115-425.0 | Washer | |
| 17 | 6.363-115.0 | O-Ring seal complete 1ST.-R. | |
| 17 | 6.303-149.0 | Oval head screw 5,0X40 | |
| 17 | 6.365-354.0 | Grooved ring 16X24X5,3 | |
| 18 | 6.362-182.0 | O-Ring seal 7,65x1,78 - NBR 90 | |
| 20 | 6.391-420.0 | High pressure hose neutrally DN 6 |
