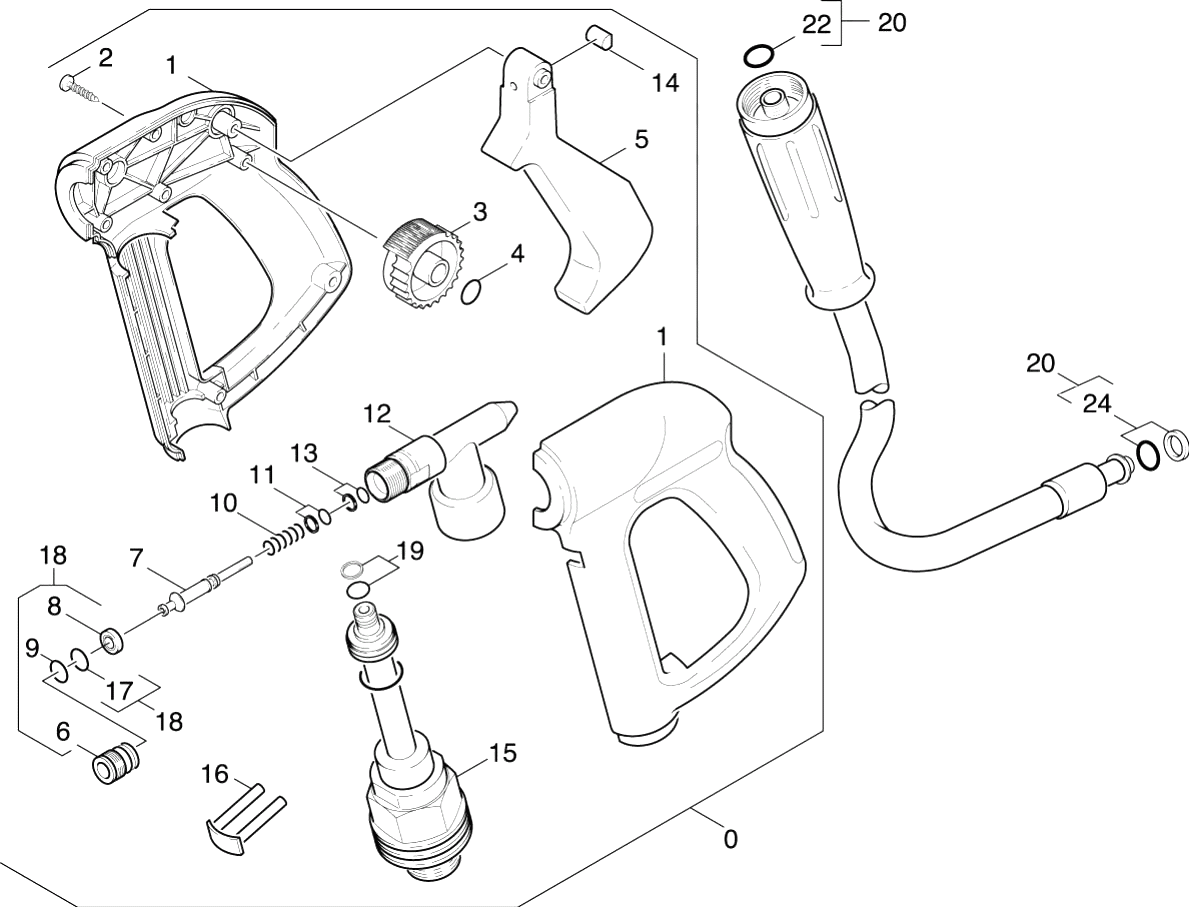

| REF. | АРТИКУЛ | ОПИСАНИЕ | ЗАПРОС НАЛИЧИЯ / ЦЕНЫ |
|---|---|---|---|
| 1 | 5.321-494.0 | Handhold few | |
| 2 | 7.303-096.0 | Screw 4x22 -ST-10.9-R2R (IN6RD) | |
| 3 | 5.067-229.0 | Cover HD 1040 B | |
| 4 | 6.303-193.0 | Cylinder head screw M 6X 12-8.8-R2R | |
| 5 | 7.312-005.0 | Washer 10-200HV-A3E ISO 7090 | |
| 5 | 5.481-178.0 | Lever | |
| 6 | 7.311-423.0 | Hexagon nut M10 -04-A2E ISO 10511 | |
| 10 | 5.332-384.0 | Helical spring | |
| 12 | 5.427-205.0 | Manifold | |
| 14 | 5.316-400.0 | Bolt | |
| 16 | 4.037-013.0 | Hook | |
| 17 | 6.362-365.0 | O-Ring seal complete 1ST.-R.- 7,65X 1,7 | |
| 18 | 6.390-185.0 | Hose assembly DN8 max.31,5MPa 15m | |
| 24 | 6.363-115.0 | O-Ring seal complete 1ST.-R. | |
| 27 | 5.110-608.0 | Sleeve | |
| 29 | 5.583-146.0 | Valve screw | |
| 30 | 5.583-157.0 | Valve screw | |
| 31 | 7.382-274.0 | """Screw plug R1/8""""-CuZn DIN 909 """ | |
| 32 | 5.321-199.0 | Handhold | |
| 33 | 5.404-075.0 | Hollow screw | |
| 34 | 4.686-001.0 | Temperature limiter complete | |
| 35 | 4.580-323.0 | Valve complete | |
| 36 | 7.362-003.0 | Joint ring A10x13,5 -Cu DIN 7603 |
