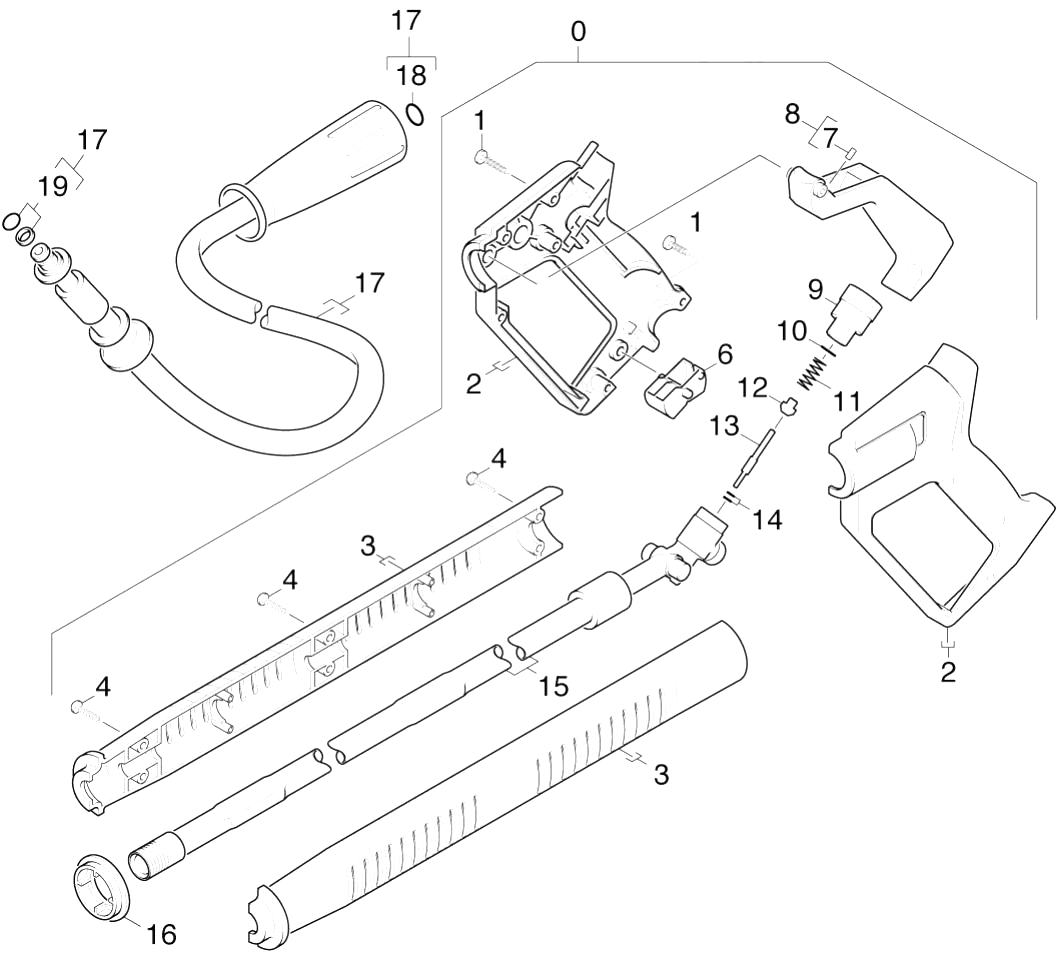

Karcher (Керхер) Pучной пистолет-распылитель (0.147-350.0)
Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85
| REF. |
АРТИКУЛ |
ОПИСАНИЕ |
ЗАПРОС НАЛИЧИЯ / ЦЕНЫ |
| 1 |
7.303-096.0 |
Screw 4x22 -ST-10.9-R2R (IN6RD) |
|
| 1 |
4.775-463.0 |
HAND TRIGGER GUN EASY PRESS |
|
| 1 |
7.306-105.0 |
Screw M6x30 -8.8-R3R (In6Rd) |
|
| 2 |
5.321-590.0 |
Handhold few |
|
| 2 |
7.303-096.0 |
Screw 4x22 -ST-10.9-R2R (IN6RD) |
|
| 2 |
6.414-252.0 |
Strainer |
|
| 3 |
5.321-691.0 |
Handhold few jet pipe |
|
| 3 |
5.481-331.0 |
Slider |
|
| 3 |
5.064-150.0 |
Suction cover |
|
| 4 |
6.303-025.0 |
Oval head screw 4,2x16-St-vz |
|
| 4 |
2.884-916.0 |
Valve (3 St?ck) |
|
| 5 |
5.321-669.0 |
Handhold few |
|
| 5 |
7.303-108.0 |
Screw 5x20 -10.9-R2R (In6Rd) |
|
| 6 |
5.481-052.0 |
Lever |
|
| 6 |
5.402-727.0 |
Suction nipple |
|
| 7 |
7.307-417.0 |
Threaded pin M8x16 -45H-A2E ISO 4026 |
|
| 7 |
4.037-013.0 |
Hook |
|
| 7 |
6.362-481.0 |
O-Ring seal 14,0 x 2,0 NBR 80 |
|
| 8 |
4.481-050.0 |
Lever |
|
| 8 |
5.110-596.0 |
Sleeve |
|
| 8 |
5.064-230.0 |
Suction cover |
|
| 9 |
6.421-216.0 |
Pressure gauge |
|
| 9 |
5.550-320.0 |
Cylinder head |
|
| 9 |
5.550-324.0 |
Cylinder head |
|
| 10 |
6.362-584.0 |
O-Ring seal 12,42X 1,78 |
|
| 10 |
2.884-501.0 |
Spare part set control piston |
|
| 10 |
6.391-875.0 |
Hose assembly premium DN6 30MPa 10m |
|
| 11 |
5.332-157.0 |
Helical spring |
|
| 11 |
4.132-007.0 |
Drain plug only for replacement |
|
| 11 |
4.363-691.0 |
O-Ring seal kpl. -nur fuer Ersatz- |
|
| 12 |
5.582-058.0 |
Valve disc |
|
| 12 |
5.003-062.0 |
Plate |
|
| 12 |
4.775-526.0 |
Rotary controller 270 l |
|
| 13 |
5.107-259.0 |
Bar |
|
| 13 |
5.443-624.0 |
Nipple |
|
| 13 |
7.343-069.0 |
Locking ring 25x1,2-1.4122 DIN 471 |
|
| 14 |
6.362-571.0 |
O-Ring seal complete /1ST.-R |
|
| 14 |
6.362-113.0 |
O-Ring seal 6,0 x 2,0 NBR 70 |
|
| 14 |
5.321-668.0 |
Handle |
|
| 15 |
4.427-183.0 |
Manifold |
|
| 15 |
7.401-908.0 |
Sphere 7 G300 -1.4301 DIN 5401 |
|
| 15 |
4.363-695.0 |
Grooved ring only for replacement |
|
| 16 |
5.031-259.0 |
Moulded part |
|
| 16 |
6.362-175.0 |
O-Ring seal 5,28x 1,78 |
|
| 17 |
6.389-853.0 |
Hose assembly standard DN6 25MPa 10m |
|
| 17 |
5.332-258.0 |
Helical spring |
|
| 18 |
6.362-384.0 |
O-Ring seal 9x1,5 - NBR 70 |
|
| 19 |
6.363-115.0 |
O-Ring seal complete 1ST.-R. |
|
| 19 |
6.362-851.0 |
O-Ring seal 4 x 2 NBR 90 |
|
| 20 |
5.584-091.0 |
Valve pin check valve |
|
| 21 |
4.769-034.0 |
Nozzle insert only for replacement |
|
| 23 |
6.362-533.0 |
O-Ring seal 14,0 X 1,5-NBR 70 |
|
| 24 |
4.591-038.0 |
Overflow valve |
|
| 27 |
5.110-630.0 |
Sleeve |
|
| 28 |
7.314-629.0 |
Grooved pin 2x10 -A1 ISO 8742 |
|
| 29 |
5.583-147.0 |
Valve screw |
|
| 30 |
6.362-468.0 |
O-Ring seal complete 1ST.-R. |
|
| 31 |
4.291-014.0 |
Spindle complete |
|
| 32 |
5.322-095.0 |
Handhold yellow RAL 1018 |
|
| 33 |
4.744-168.0 |
Switch complete |
|
| 33 |
4.744-242.0 |
Switch kpl. -nur f?r Ersatz- |
|
| 34 |
5.034-494.0 |
Retaining bracket |
|
| 35 |
6.362-161.0 |
O-Ring seal 19,3 X 2,4 |
|
| 36 |
5.443-291.0 |
Hose stem |
|
| 37 |
5.310-076.0 |
Nut |
|
| 38 |
6.421-349.0 |
Pressure gauge 0-30 MPa |
|
