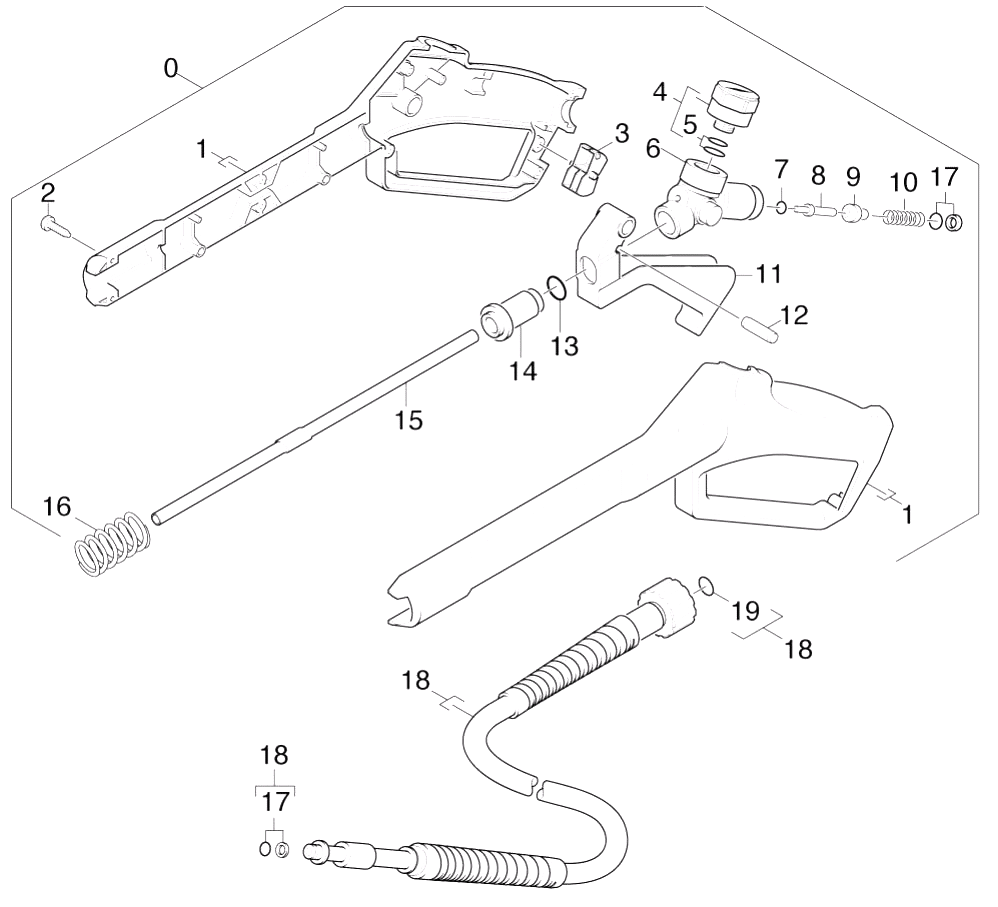

Karcher (Керхер) Pучной пистолет-распылитель (0.147-320.0)
Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85
| REF. |
АРТИКУЛ |
ОПИСАНИЕ |
ЗАПРОС НАЛИЧИЯ / ЦЕНЫ |
| 0 |
4.623-376.0 |
Motor complete only for replacement *GB |
|
| 0 |
4.623-386.0 |
Motor complete only for replacement |
|
| 1 |
5.030-967.0 |
Handhold few |
|
| 1 |
5.034-646.0 |
Retaining bracket |
|
| 1 |
6.288-050.0 |
Engine oil 1L |
|
| 1 |
6.964-092.0 |
Viscous oil 50ml |
|
| 1 |
5.321-451.0 |
Handhold chemistry |
|
| 2 |
6.303-122.0 |
M4 .2X13 DIN 7981 TORX T15 PAN HD HI/LO |
|
| 2 |
6.303-125.0 |
Screw 5x20-Sonder In6Rd+Spitze |
|
| 2 |
5.093-010.0 |
Bearing plate A-SEITE |
|
| 2 |
4.291-011.0 |
Spindle complete |
|
| 3 |
5.481-052.0 |
Lever |
|
| 3 |
5.067-023.0 |
Cover for replacement (M) |
|
| 3 |
6.303-320.0 |
Screw M 5x 20-St-R2R |
|
| 3 |
6.362-856.0 |
O-Ring seal 4,47X 1,78 |
|
| 4 |
6.421-205.0 |
Pressure gauge 0-150 BAR |
|
| 4 |
7.303-047.0 |
Screw M6x16 -St-R3R (In6Rd) |
|
| 4 |
7.367-018.0 |
Radial shaft seal ring A26x37x7 -NBR DI |
|
| 4 |
7.303-049.0 |
Screw M6x25-ST-A3R (IN6RD) |
|
| 5 |
2.883-782.0 |
O-Ring kit |
|
| 5 |
5.030-965.0 |
Covering tank |
|
| 5 |
6.362-471.0 |
O-Ring seal 80,0 X 3,0 -NBR 70 |
|
| 5 |
5.063-562.0 |
Cover housing |
|
| 6 |
5.427-186.0 |
Manifold |
|
| 6 |
5.063-571.0 |
Cap of a tank |
|
| 6 |
7.401-155.0 |
Ball bearing 6304-WAELZLAGERST DIN 625 |
|
| 6 |
2.883-439.0 |
Spare part set chemistry |
|
| 7 |
7.362-502.0 |
O-Ring seal 2,8x1,6-NBR 70 DIN 3770 |
|
| 7 |
5.731-044.0 |
Filter |
|
| 7 |
6.401-196.0 |
Wobble plate |
|
| 7 |
6.362-169.0 |
O-Ring seal 12,0 X 2,0 |
|
| 8 |
5.107-147.0 |
Bar |
|
| 8 |
4.071-085.0 |
Tank chemistry |
|
| 8 |
6.304-048.0 |
Cylinder head screw M6x19 |
|
| 8 |
7.401-908.0 |
Sphere 7 G300 -1.4301 DIN 5401 |
|
| 9 |
5.582-058.0 |
Valve disc |
|
| 9 |
6.362-077.0 |
O-Ring seal 10 x 2,2 NBR 70 |
|
| 10 |
5.332-157.0 |
Helical spring |
|
| 10 |
6.273-135.0 |
Sealing strip |
|
| 10 |
5.060-485.0 |
Housing |
|
| 11 |
5.481-140.0 |
Lever |
|
| 11 |
4.584-022.0 |
Valve pin complete |
|
| 12 |
5.314-082.0 |
Pin -BONEZZI 12.022.706 |
|
| 12 |
6.362-851.0 |
O-Ring seal 4 x 2 NBR 90 |
|
| 13 |
6.362-479.0 |
O-Ring seal 7,59X 2,62 |
|
| 13 |
4.769-036.0 |
Nozzle insert complete only for replacem |
|
| 14 |
5.110-539.0 |
Sleeve |
|
| 14 |
6.362-054.0 |
O-Ring seal 7,5 x 2,0 |
|
| 15 |
6.414-252.0 |
Strainer |
|
| 16 |
5.332-247.0 |
Helical spring |
|
| 16 |
6.465-031.0 |
Connection 3/4 |
|
| 17 |
6.363-031.0 |
O-Ring seal complete 1ST.-R. NBR 90 |
|
| 17 |
6.363-115.0 |
O-Ring seal complete 1ST.-R. |
|
| 17 |
6.362-078.0 |
O-Ring seal 13,3x2,4 |
|
| 18 |
6.389-555.0 |
High pressure hose 9/16MPa 60G MU=50,E |
|
| 18 |
5.443-229.0 |
Hose stem |
|
| 19 |
5.310-065.0 |
Nut |
|
| 20 |
4.401-070.0 |
Screw connector part neutrally * AUS |
|
