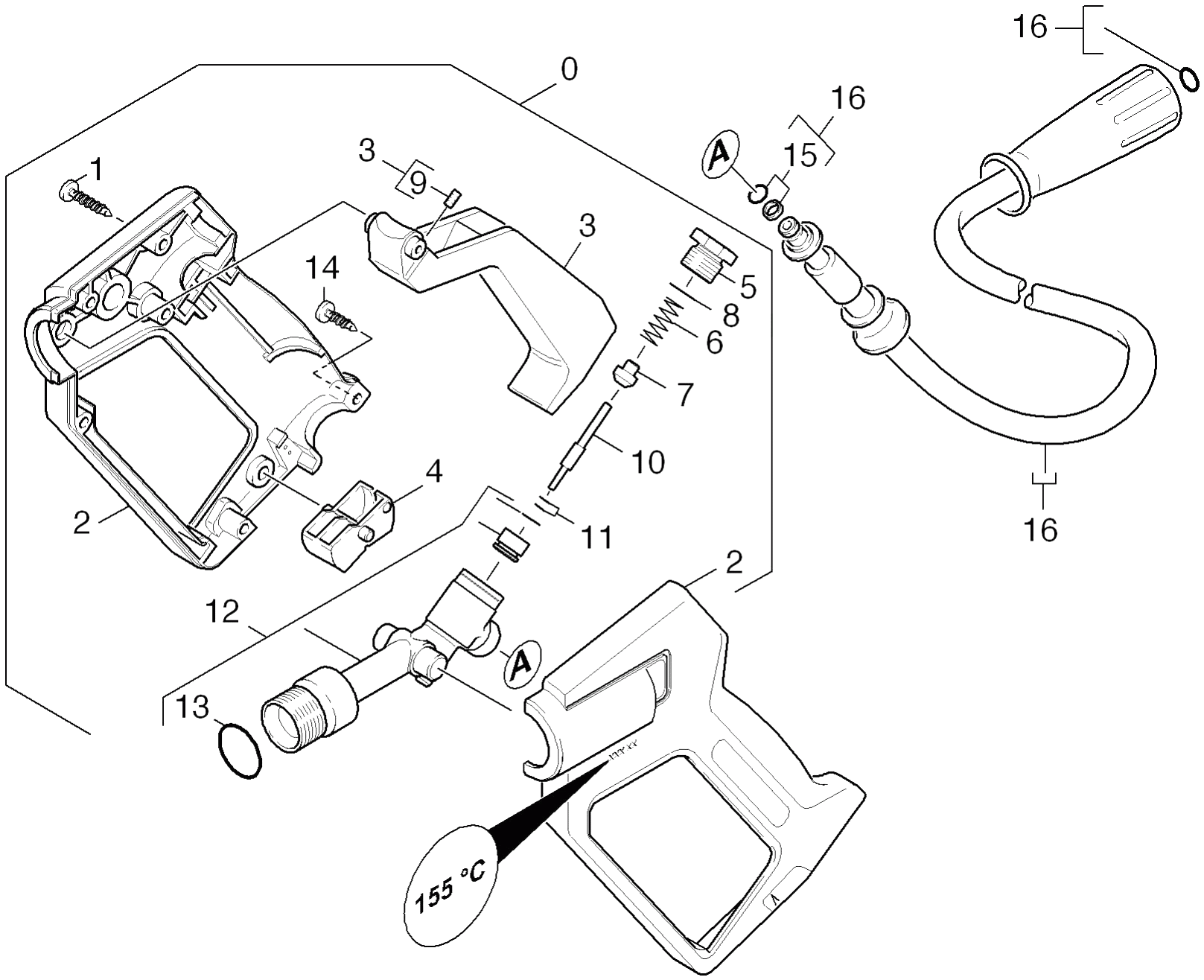

Karcher (Керхер) Pучной пистолет-распылитель (0.146-769.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

REF.	АРТИКУЛ	ОПИСАНИЕ
0	4.775-080.0	Hand trigger gun replacement
0	4.623-374.0	Motor complete
1	7.303-096.0	Screw 4x22 -ST-10.9-R2R (IN6RD)
1	7.367-156.0	Radial shaft seal ring A30x40x7-NBR DIN
2	5.321-230.0	Handhold few
2	7.401-032.0	Ball bearing 7305-B-WAELZLAGST DIN 628
3	4.481-050.0	Lever
3	4.120-173.0	Wobble plate complete
4	5.481-052.0	Lever
5	5.411-067.0	Screw plug
5	7.312-260.0	Washer 6 -100HV-A3E ISO 7094
6	5.332-157.0	Helical spring
6	7.306-092.0	Screw M6x20-ST- 8.8-R3R (IN6RD)
7	5.582-084.0	Valve disc
7	7.318-070.0	Parallel key 5x5x20-C45R DIN 6885-1
8	6.362-584.0	O-Ring seal 12,42X 1,78
8	6.288-016.0	Gear oil 1L
9	7.307-417.0	Threaded pin M8x16 -45H-A2E ISO 4026
10	5.107-097.0	Bar
10	7.303-038.0	Screw M5x12 -St-P2R (In6Rd)
11	6.362-571.0	O-Ring seal complete /1ST.-R
11	5.070-461.0	Tank oil
12	4.427-131.0	Manifold
12	5.063-195.0	Cover
13	6.362-496.0	O-Ring seal 17,12X 2,62-NBR 70
13	6.362-526.0	O-Ring seal 29,1 X 2,55 -NBR 70
14	6.303-025.0	Oval head screw 4,2x16-St-vz
14	4.401-096.0	Deep groove ball thrust bearing only for
15	6.363-115.0	O-Ring seal complete 1ST.-R.
16	6.389-853.0	Hose assembly standard DN6 25MPa 10m
