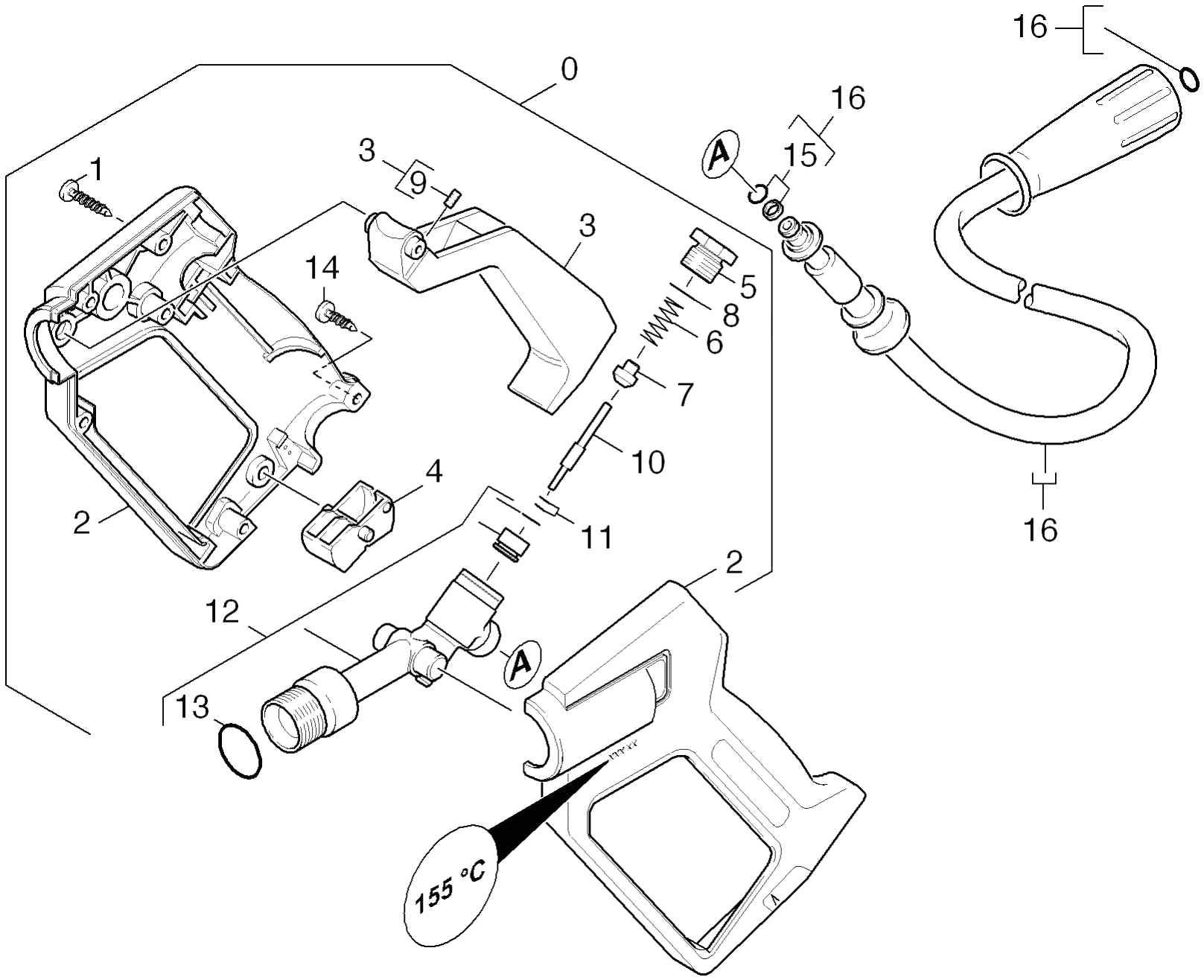

Karcher (Керхер) Pучной пистолет-распылитель (0.146-592.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

REF.	АРТИКУЛ	ОПИСАНИЕ
0	4.775-080.0	Hand trigger gun replacement
0	4.623-541.0	Motor complete only for replacement
1	7.303-096.0	Screw 4x22 -ST-10.9-R2R (IN6RD)
1	5.600-060.0	Blower wheel
1	4.550-491.0	Cylinder head only for replacement
2	5.321-230.0	Handhold few
2	5.093-041.0	Bearing cover B
2	6.362-851.0	O-Ring seal 4 x 2 NBR 90
3	4.481-050.0	Lever
3	6.303-320.0	Screw M 5x 20-St-R2R
3	5.584-091.0	Valve pin check valve
4	5.481-052.0	Lever
4	7.401-105.0	Ball bearing 6003-2RS W?lzl.St DIN 625
4	4.769-032.0	Nozzle insert
5	5.411-067.0	Screw plug
5	5.767-005.0	Rubber buffer
5	5.332-258.0	Helical spring
6	5.332-157.0	Helical spring
6	7.401-908.0	Sphere 7 G300 -1.4301 DIN 5401
7	5.582-084.0	Valve disc
7	6.362-175.0	O-Ring seal 5,28x 1,78
8	6.362-584.0	O-Ring seal 12,42X 1,78
9	7.307-417.0	Threaded pin M8x16 -45H-A2E ISO 4026
10	5.107-097.0	Bar
10	6.362-384.0	O-Ring seal 9x1,5 - NBR 70
11	6.362-571.0	O-Ring seal complete /1ST.-R
11	5.110-714.0	Sleeve
12	4.427-131.0	Manifold
12	6.362-451.0	O-Ring seal 8,0 x 1,0
13	6.362-496.0	O-Ring seal 17,12X 2,62-NBR 70
14	6.303-025.0	Oval head screw 4,2x16-St-vz
15	6.363-115.0	O-Ring seal complete 1ST.-R.
16	6.389-853.0	Hose assembly standard DN6 25MPa 10m
