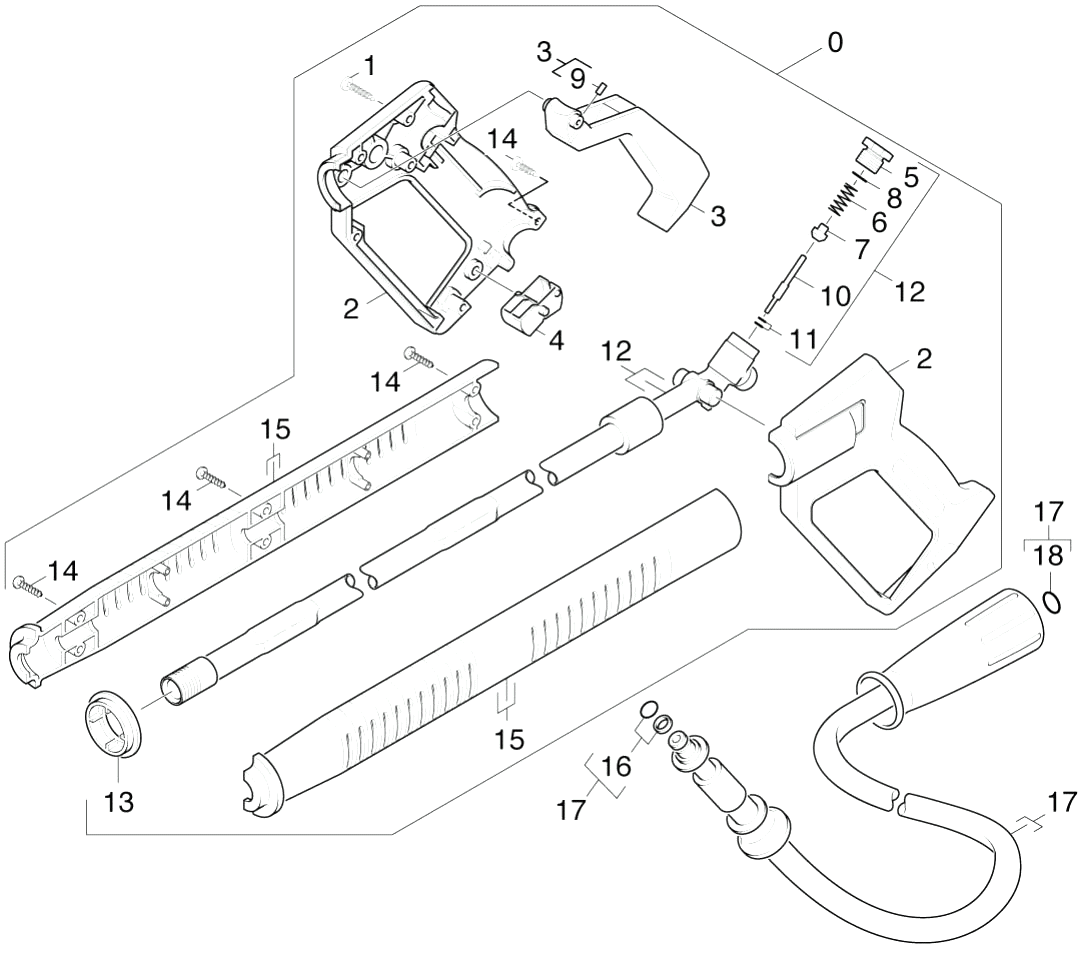

Karcher (Керхер) Pучной пистолет-распылитель (0.146-448.0)
Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85
| REF. |
АРТИКУЛ |
ОПИСАНИЕ |
ЗАПРОС НАЛИЧИЯ / ЦЕНЫ |
| 0 |
6.491-607.0 |
Gasoline engine GX 160 UT1-QX-4-OH |
|
| 1 |
7.303-096.0 |
Screw 4x22 -ST-10.9-R2R (IN6RD) |
|
| 1 |
6.288-050.0 |
Engine oil 1L |
|
| 1 |
4.402-042.0 |
Screw union |
|
| 2 |
9.196-304.0 |
Винт с полупотайной головкой 5/16x1,5 |
|
| 2 |
6.388-216.0 |
Hose DN 5 |
|
| 2 |
6.362-460.0 |
O-Ring seal 14,0 X 2,5-NBR 70 |
|
| 2 |
6.491-614.0 |
Parallel key |
|
| 2 |
5.064-127.0 |
Cover |
|
| 3 |
4.481-050.0 |
Lever |
|
| 3 |
9.194-543.0 |
Крышка |
|
| 3 |
5.030-528.0 |
Moulded part |
|
| 3 |
5.322-083.0 |
Handhold few extended Low End |
|
| 4 |
9.183-103.0 |
Пробка резина |
|
| 4 |
4.132-007.0 |
Drain plug only for replacement |
|
| 4 |
6.491-723.0 |
Cap of a tank |
|
| 4 |
7.401-902.0 |
Sphere 5 G20 -1.4034 DIN 5401 |
|
| 4 |
6.491-719.0 |
Ignition plug |
|
| 4 |
6.362-480.0 |
O-Ring seal 12,42x 1,78 |
|
| 4 |
6.303-025.0 |
Oval head screw 4,2x16-St-vz |
|
| 5 |
5.411-067.0 |
Screw plug |
|
| 5 |
6.491-503.0 |
Handhold |
|
| 5 |
5.042-405.0 |
Holder |
|
| 6 |
4.769-032.0 |
Nozzle insert |
|
| 6 |
6.491-615.0 |
Starter rope complete only for replaceme |
|
| 6 |
6.362-575.0 |
O-Ring seal 12,42 KOMPL |
|
| 6 |
5.481-052.0 |
Lever |
|
| 7 |
5.582-117.0 |
Valve disc |
|
| 7 |
9.197-002.0 |
5/16-18 NE NYLON INSERT L/N ZC 5UM |
|
| 7 |
6.362-480.0 |
O-Ring seal 12,42x 1,78 |
|
| 8 |
5.003-062.0 |
Plate |
|
| 8 |
6.491-546.0 |
Pull cord |
|
| 8 |
5.415-602.0 |
Triple jet nozzle 038 |
|
| 8 |
6.491-619.0 |
Spark arrester only for replacement |
|
| 8 |
4.401-070.0 |
Screw connector part neutrally * AUS |
|
| 9 |
7.307-417.0 |
Threaded pin M8x16 -45H-A2E ISO 4026 |
|
| 9 |
7.312-004.0 |
Washer 8 -200HV-A3E ISO 7090 |
|
| 9 |
5.311-117.0 |
Hexagon nut |
|
| 10 |
5.037-059.0 |
Hook |
|
| 10 |
5.107-259.0 |
Bar |
|
| 10 |
5.443-229.0 |
Hose stem |
|
| 11 |
6.362-571.0 |
O-Ring seal complete /1ST.-R |
|
| 11 |
5.394-269.0 |
Protection part |
|
| 11 |
5.310-065.0 |
Nut |
|
| 12 |
9.182-004.0 |
Cap |
|
| 12 |
4.030-125.0 |
Joining piece only for replacement |
|
| 12 |
4.427-179.0 |
Manifold |
|
| 13 |
5.031-259.0 |
Moulded part |
|
| 14 |
9.111-026.0 |
Рамка 1,25 SCHW. |
|
| 14 |
6.303-025.0 |
Oval head screw 4,2x16-St-vz |
|
| 15 |
5.321-691.0 |
Handhold few jet pipe |
|
| 15 |
7.304-097.0 |
Hexagonal head screw M8x70-8.8-A2E ISO |
|
| 16 |
6.363-115.0 |
O-Ring seal complete 1ST.-R. |
|
| 17 |
6.389-853.0 |
Hose assembly standard DN6 25MPa 10m |
|
