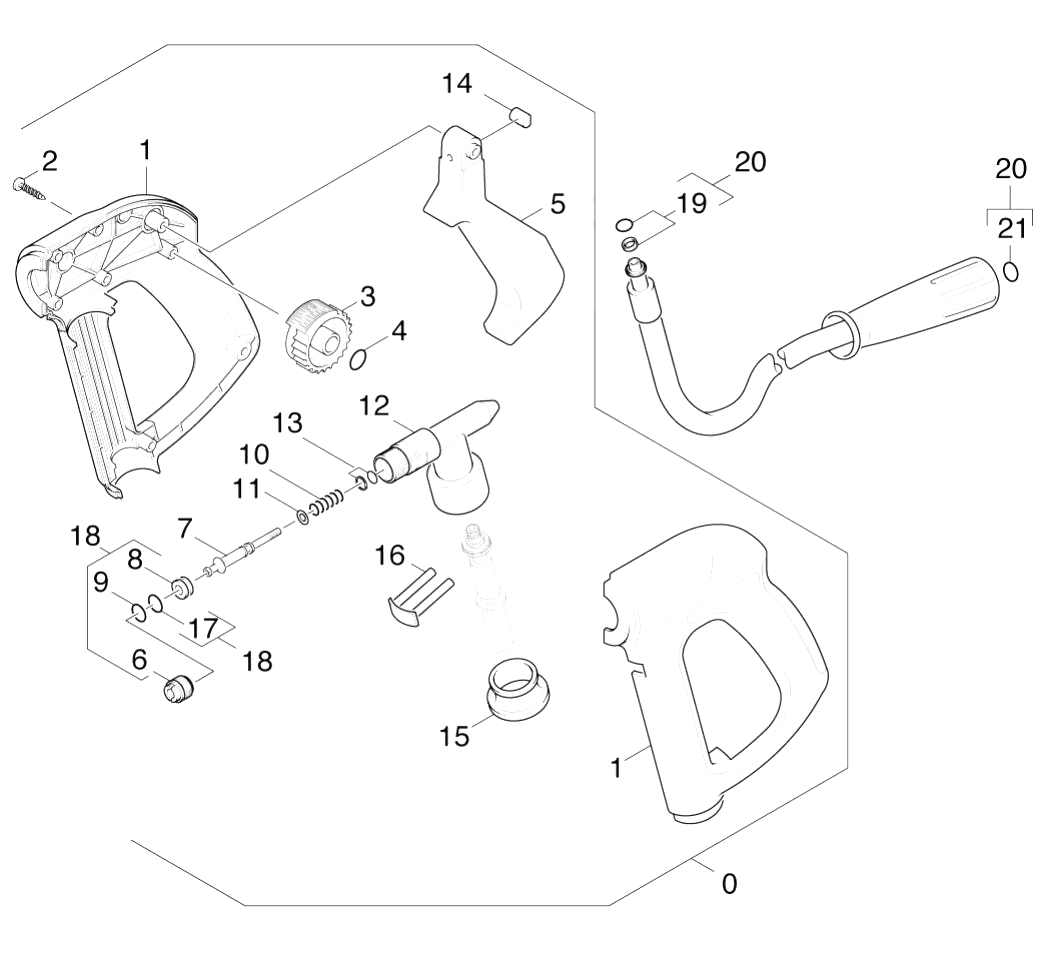

| REF. | АРТИКУЛ | ОПИСАНИЕ | ЗАПРОС НАЛИЧИЯ / ЦЕНЫ |
|---|---|---|---|
| 1 | 5.321-494.0 | Handhold few | |
| 2 | 7.303-096.0 | Screw 4x22 -ST-10.9-R2R (IN6RD) | |
| 3 | 5.322-012.0 | Hand wheel | |
| 4 | 6.362-642.0 | O-Ring d. 7,65x1,78 -NBR 80 | |
| 5 | 4.551-057.0 | Cylinder head only for replacement | |
| 6 | 5.404-079.0 | Hollow screw | |
| 6 | 6.421-214.0 | Pressure gauge 0-300 BAR | |
| 7 | 5.553-348.0 | Piston | |
| 8 | 5.581-243.0 | Valve seat | |
| 9 | 6.362-182.0 | O-Ring seal 7,65x1,78 - NBR 90 | |
| 10 | 5.332-413.0 | Helical spring | |
| 11 | 6.362-477.0 | O-Ring seal complete 1ST.-R. | |
| 12 | 5.427-214.0 | Manifold | |
| 13 | 6.362-964.0 | O-Ring seal complete | |
| 14 | 5.316-400.0 | Bolt | |
| 15 | 5.110-596.0 | Sleeve | |
| 16 | 4.037-013.0 | Hook | |
| 17 | 6.362-503.0 | O-Ring seal 8,0 X 1,0 | |
| 19 | 6.363-115.0 | O-Ring seal complete 1ST.-R. | |
| 20 | 6.391-420.0 | High pressure hose neutrally DN 6 | |
| 21 | 6.362-427.0 | O-Ring seal 15,0x2,0 | |
| 23 | 6.363-045.0 | O-Ring seal 8X1,25 NBR | |
| 25 | 4.580-323.0 | Valve complete |
