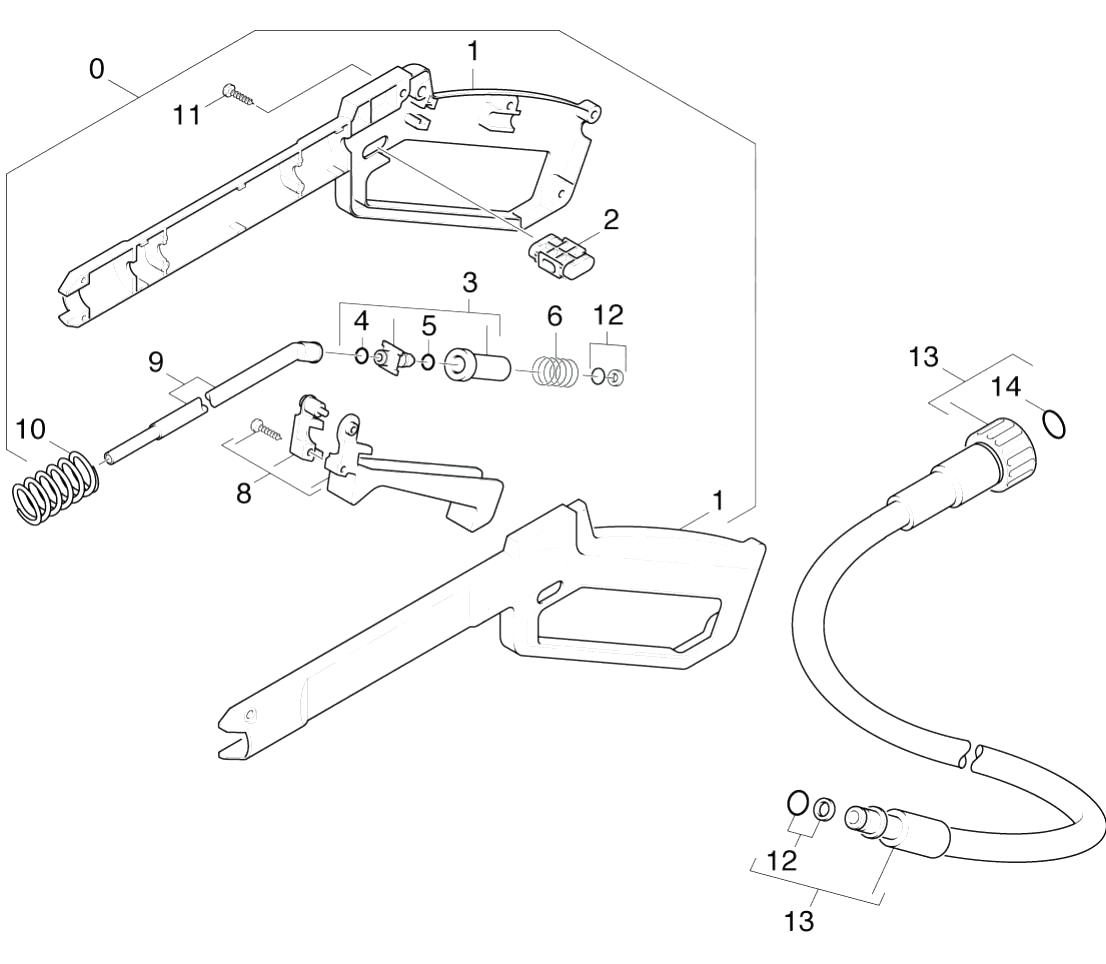

| REF. | АРТИКУЛ | ОПИСАНИЕ | ЗАПРОС НАЛИЧИЯ / ЦЕНЫ |
|---|---|---|---|
| 1 | 5.060-369.0 | Housing thrust guidance | |
| 1 | 5.042-215.0 | Holder | |
| 2 | 5.030-620.0 | Moulded part | |
| 2 | 6.365-340.0 | Grooved ring 14X22X5/7 | |
| 3 | 5.115-466.0 | Washer | |
| 3 | 4.582-008.0 | Valve disc complete | |
| 4 | 6.362-182.0 | O-Ring seal 7,65x1,78 - NBR 90 | |
| 4 | 6.491-334.0 | Трос стартера | |
| 4 | 5.115-465.0 | Washer | |
| 4 | 7.312-232.0 | Serrated lock washer A6,4-FSt-A3E DIN 6 | |
| 5 | 6.491-411.0 | Handhold -ANWERF | |
| 5 | 6.365-341.0 | Grooved ring | |
| 5 | 6.362-658.0 | O-Ring seal 7 X 1,5-NBR 90 | |
| 6 | 5.332-248.0 | Helical spring | |
| 6 | 6.491-331.0 | Cap of a tank | |
| 6 | 4.210-063.0 | Корпус | |
| 7 | 6.951-192.0 | Ignition plug | |
| 7 | 5.030-625.0 | Moulded part | |
| 8 | 6.491-338.0 | Air filter | |
| 8 | 6.435-167.0 | Wheel D.150 | |
| 9 | 5.553-231.0 | Piston | |
| 10 | 7.304-404.0 | Hexagonal head screw M8x40-8.8-A2E ISO | |
| 10 | 5.332-247.0 | Helical spring | |
| 11 | 6.303-122.0 | M4 .2X13 DIN 7981 TORX T15 PAN HD HI/LO | |
| 11 | 6.303-020.0 | """Screw 3/8""""-24UNF """ | |
| 12 | 5.028-369.0 | Tube | |
| 12 | 6.363-115.0 | O-Ring seal complete 1ST.-R. | |
| 13 | 6.389-555.0 | High pressure hose 9/16MPa 60G MU=50,E | |
| 14 | 7.306-076.0 | Screw M 5x12-ST- 8.8-A2R (IN6RD) | |
| 17 | 6.310-051.0 | Putting nut M 5 | |
| 18 | 5.115-483.0 | Washer | |
| 19 | 5.731-652.0 | Filter with weight | |
| 21 | 6.389-508.0 | Hose holder |
