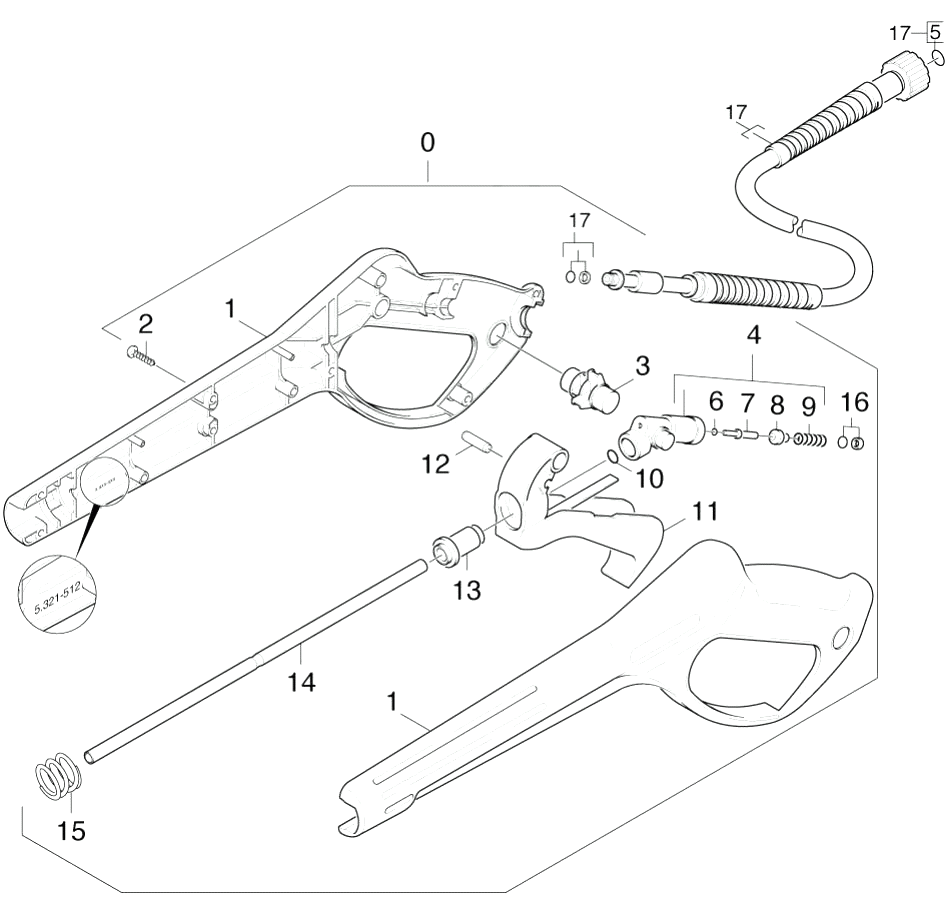

Karcher (Керхер) Pучной пистолет-распылитель (0.146-388.0)
Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85
| REF. |
АРТИКУЛ |
ОПИСАНИЕ |
ЗАПРОС НАЛИЧИЯ / ЦЕНЫ |
| 0 |
4.775-264.0 |
Pistol only for replacement 96 |
|
| 0 |
4.775-501.0 |
Пистолет M V2 на замену |
|
| 1 |
5.321-512.0 |
Handhold few |
|
| 1 |
5.332-464.0 |
Pressure spring |
|
| 1 |
4.769-032.0 |
Nozzle insert |
|
| 1 |
4.025-910.0 |
High-pressure outlet complete K7.91 |
|
| 2 |
6.303-122.0 |
M4 .2X13 DIN 7981 TORX T15 PAN HD HI/LO |
|
| 2 |
5.037-140.0 |
Clamp |
|
| 2 |
6.362-384.0 |
O-Ring seal 9x1,5 - NBR 70 |
|
| 2 |
4.769-034.0 |
Nozzle insert only for replacement |
|
| 3 |
5.481-189.0 |
Lever locking part |
|
| 3 |
6.363-198.0 |
O-Ring seal 6x2 90 shore PUR |
|
| 3 |
4.584-022.0 |
Valve pin complete |
|
| 3 |
6.362-384.0 |
O-Ring seal 9x1,5 - NBR 70 |
|
| 4 |
4.427-178.0 |
Manifold complete |
|
| 4 |
4.440-673.0 |
High pressure hose 12/16MPa,Kaer.,60G |
|
| 4 |
6.362-851.0 |
O-Ring seal 4 x 2 NBR 90 |
|
| 4 |
4.440-819.0 |
High pressure hose 12/16MPa,Kaer.,60G,SG |
|
| 4 |
6.391-536.0 |
High pressure hose 9/16MPa,Kaer.,60G,Gum |
|
| 4 |
4.584-022.0 |
Valve pin complete |
|
| 5 |
2.880-154.0 |
O-Ring kit |
|
| 5 |
5.332-258.0 |
Helical spring |
|
| 5 |
6.362-851.0 |
O-Ring seal 4 x 2 NBR 90 |
|
| 6 |
7.362-502.0 |
O-Ring seal 2,8x1,6-NBR 70 DIN 3770 |
|
| 6 |
7.401-908.0 |
Sphere 7 G300 -1.4301 DIN 5401 |
|
| 6 |
4.775-567.0 |
Пистолет M V4 |
|
| 6 |
6.362-151.0 |
O-Ring d. 10 x 2 NBR 70 |
|
| 7 |
5.107-147.0 |
Bar |
|
| 7 |
6.362-113.0 |
O-Ring seal 6,0 x 2,0 NBR 70 |
|
| 7 |
4.037-018.0 |
Hook |
|
| 7 |
6.390-426.0 |
Hose DN 5 |
|
| 8 |
5.582-058.0 |
Valve disc |
|
| 8 |
5.443-367.0 |
Nipple chemistry |
|
| 9 |
5.332-157.0 |
Helical spring |
|
| 9 |
4.132-007.0 |
Drain plug only for replacement |
|
| 10 |
6.362-479.0 |
O-Ring seal 7,59X 2,62 |
|
| 10 |
6.363-273.0 |
O-Ring seal 11,0 x 2,0 |
|
| 10 |
2.884-916.0 |
Valve (3 St?ck) |
|
| 11 |
4.481-105.0 |
Lever complete |
|
| 11 |
2.884-916.0 |
Valve (3 St?ck) |
|
| 11 |
4.580-650.0 |
Всасывающий клапан в сборе |
|
| 12 |
5.314-082.0 |
Pin -BONEZZI 12.022.706 |
|
| 12 |
4.030-070.0 |
Throttle complete |
|
| 13 |
5.110-539.0 |
Sleeve |
|
| 13 |
5.110-714.0 |
Sleeve |
|
| 13 |
4.030-125.0 |
Joining piece only for replacement |
|
| 14 |
5.028-905.0 |
Tube pistol |
|
| 14 |
4.030-125.0 |
Joining piece only for replacement |
|
| 14 |
4.470-041.0 |
High pressure quick-fitting pipe union A |
|
| 15 |
5.332-349.0 |
Pressure spring |
|
| 15 |
2.884-877.0 |
Valve (3 Stueck) |
|
| 15 |
5.003-062.0 |
Plate |
|
| 16 |
6.363-115.0 |
O-Ring seal complete 1ST.-R. |
|
| 16 |
5.003-062.0 |
Plate |
|
| 16 |
5.069-205.0 |
Support holder |
|
| 17 |
6.389-555.0 |
High pressure hose 9/16MPa 60G MU=50,E |
|
| 17 |
5.550-340.0 |
Cylinder head K 7.91 M |
|
| 17 |
5.550-295.0 |
Cylinder head K 7.80 |
|
| 17 |
7.304-098.0 |
Hexagonal head screw M8x80-8.8-A2E ISO |
|
| 18 |
7.304-098.0 |
Hexagonal head screw M8x80-8.8-A2E ISO |
|
| 18 |
5.550-340.0 |
Cylinder head K 7.91 M |
|
| 19 |
6.641-463.0 |
Cable tape |
|
