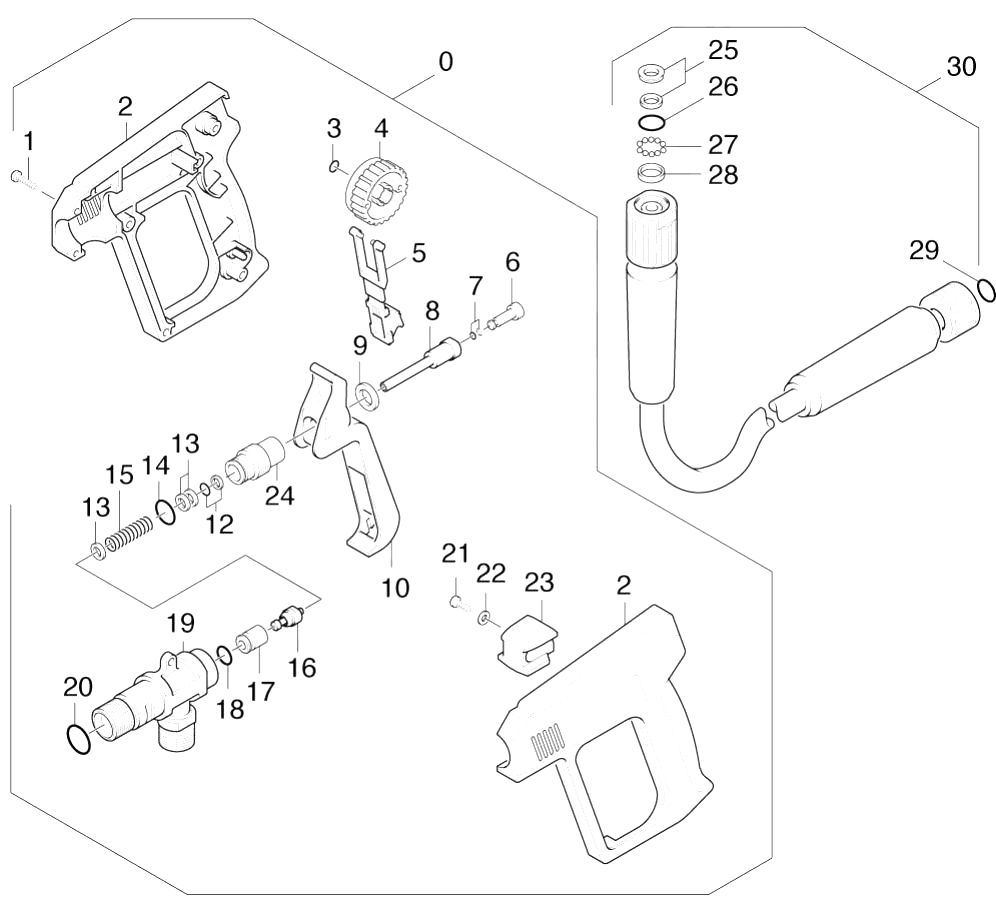

| REF. | АРТИКУЛ | ОПИСАНИЕ | ЗАПРОС НАЛИЧИЯ / ЦЕНЫ |
|---|---|---|---|
| 1 | 7.303-096.0 | Screw 4x22 -ST-10.9-R2R (IN6RD) | |
| 2 | 5.321-107.0 | Handhold few | |
| 3 | 6.362-176.0 | O-Ring seal 6,07x1,78 | |
| 4 | 5.322-006.0 | Hand wheel | |
| 5 | 5.030-283.0 | Moulded part | |
| 6 | 5.553-118.0 | Piston | |
| 7 | 6.362-477.0 | O-Ring seal complete 1ST.-R. | |
| 8 | 5.107-062.0 | Bar | |
| 9 | 5.115-227.0 | Washer | |
| 10 | 5.481-042.0 | Lever | |
| 12 | 6.362-468.0 | O-Ring seal complete 1ST.-R. | |
| 13 | 5.115-260.0 | Washer | |
| 14 | 6.362-478.0 | O-Ring seal 12,42X 1,78 | |
| 15 | 5.332-140.0 | Helical spring | |
| 16 | 4.581-013.0 | Valve seat | |
| 17 | 5.110-217.0 | Sleeve | |
| 18 | 6.362-479.0 | O-Ring seal 7,59X 2,62 | |
| 19 | 5.427-079.0 | Manifold | |
| 20 | 6.362-496.0 | O-Ring seal 17,12X 2,62-NBR 70 | |
| 22 | 7.312-001.0 | Washer 4 -200HV-A3E ISO 7089 | |
| 23 | 5.030-321.0 | Moulded part | |
| 24 | 5.305-110.0 | Shaped screw | |
| 25 | 4.363-692.0 | Grooved ring kpl. -nur fuer Ersatz- | |
| 26 | 6.362-524.0 | O-Ring seal 17,0 X 1,5 | |
| 27 | 7.401-921.0 | Sphere 4 G20 -1.4034 DIN 5401 | |
| 28 | 6.362-529.0 | Joint ring 12x1,5 |
