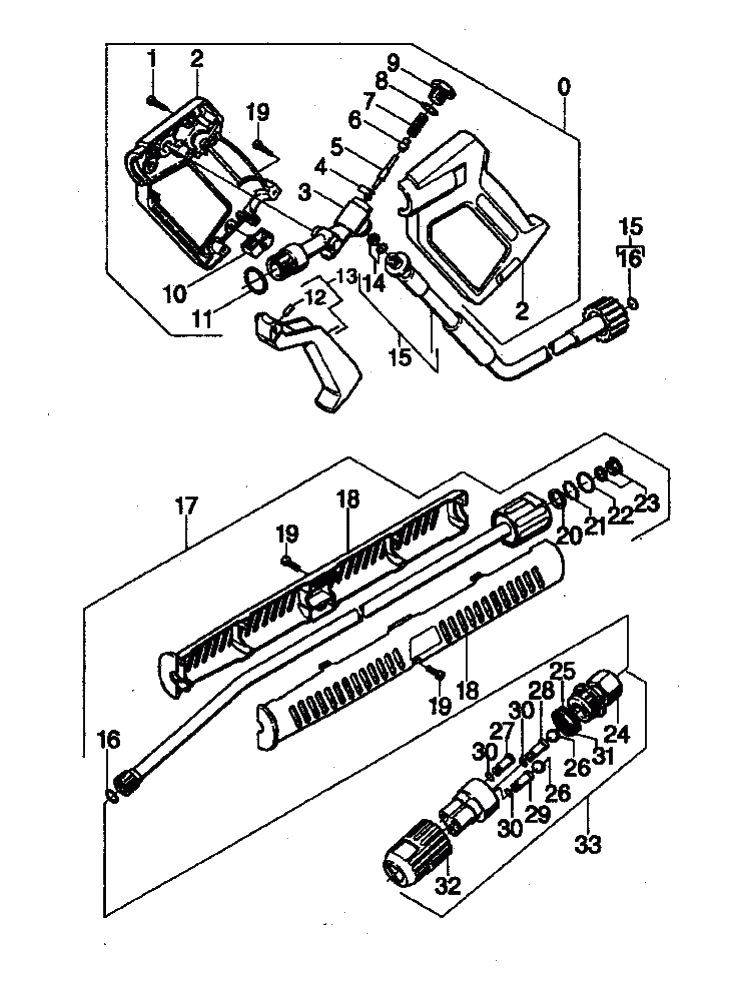

| REF. | АРТИКУЛ | ОПИСАНИЕ | ЗАПРОС НАЛИЧИЯ / ЦЕНЫ |
|---|---|---|---|
| 0 | 4.775-080.0 | Hand trigger gun replacement | |
| 2 | 7.312-003.0 | Washer 6 -200HV-A3E ISO 7090 | |
| 4 | 6.362-571.0 | O-Ring seal complete /1ST.-R | |
| 4 | 7.303-046.0 | Screw M6x12 -St-R3R (In6Rd) | |
| 5 | 5.107-259.0 | Bar | |
| 5 | 7.304-404.0 | Hexagonal head screw M8x40-8.8-A2E ISO | |
| 6 | 5.582-058.0 | Valve disc | |
| 6 | 7.312-004.0 | Washer 8 -200HV-A3E ISO 7090 | |
| 7 | 4.037-013.0 | Hook | |
| 7 | 5.332-264.0 | Helical spring | |
| 8 | 5.110-596.0 | Sleeve | |
| 8 | 6.431-114.0 | Зажим ниппеля | |
| 9 | 5.411-067.0 | Screw plug | |
| 9 | 5.017-042.0 | Angle | |
| 10 | 5.481-052.0 | Lever | |
| 11 | 7.306-105.0 | Screw M6x30 -8.8-R3R (In6Rd) | |
| 12 | 5.108-097.0 | Pin | |
| 12 | 7.306-057.0 | Screw M4x10 -8.8-R2R (In6Rd) | |
| 12 | 5.583-146.0 | Valve screw | |
| 13 | 5.115-962.0 | Washer | |
| 14 | 6.363-115.0 | O-Ring seal complete 1ST.-R. | |
| 17 | 2.884-512.0 | Valve (3 Stueck) | |
| 18 | 5.321-150.0 | HANDLE (PART NO=ONE HALF) | |
| 19 | 5.060-888.0 | Valve housing swivel arm Hobbock | |
| 20 | 6.288-050.0 | Engine oil 1L | |
| 20 | 6.362-529.0 | Joint ring 12x1,5 | |
| 21 | 6.362-427.0 | O-Ring seal 15,0x2,0 | |
| 22 | 6.362-524.0 | O-Ring seal 17,0 X 1,5 | |
| 23 | 6.363-045.0 | O-Ring seal 8X1,25 NBR | |
| 24 | 4.402-039.0 | Screw union | |
| 25 | 6.362-469.0 | O-Ring seal 21,95X 1,78 | |
| 25 | 4.580-323.0 | Valve complete | |
| 26 | 7.401-910.0 | Sphere 3/8 G80-1.4034 DIN 5401 | |
| 28 | 5.040-479.0 | Sheet metal component | |
| 28 | 6.415-466.0 | Nozzle mouthpiece 25G055 | |
| 30 | 6.362-524.0 | O-Ring seal 17,0 X 1,5 | |
| 32 | 5.394-213.0 | Protection part |
